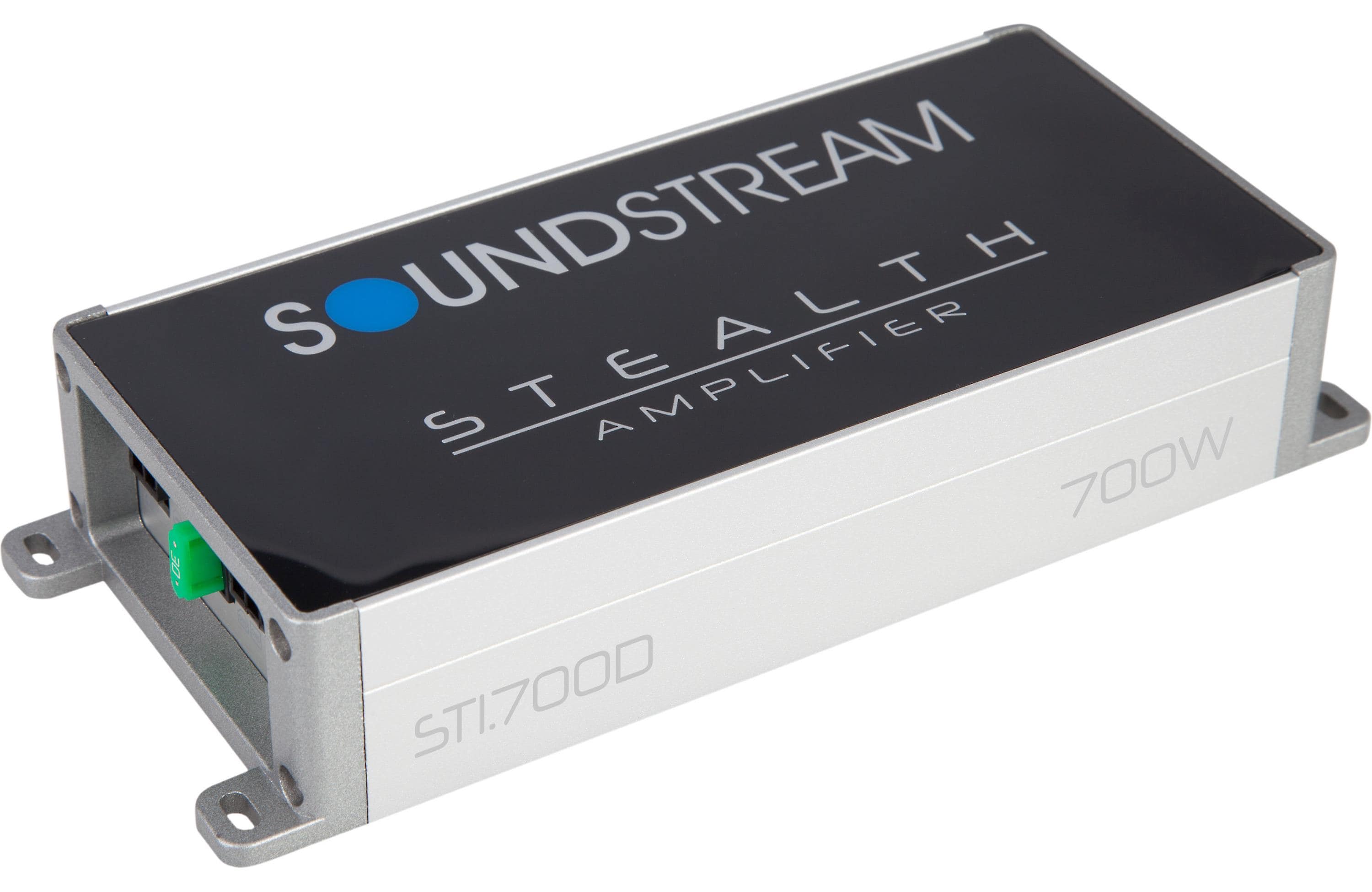

Soundstream ST1-700D Monoblock Stealth Series Class D Amplifier

Features:

• Monoblock Stealth Series Class D Amplifier
• RMS Power Rating:
  • 4 ohms: 300 watts x 1 chan.
  • 2 ohms: 450 watts x 1 chan.
• Peak power output: 700 watts
• MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
• Military Grade SMT PCB Maintains Dynamic Performance
• Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
• Dash Mount Gain Control Module Included
• Direct Short, Thermal, & Overload Circuits Protect Ampllifier
• Quick Disconnect RCA/High Level Wire Harness
• Quick Disconnect Power and Speaker Output Harness
• High Level or Low Level RCA Input
• 12dB Bass Boost Increases Low Octave Harmonics
• Variable 12dB Low Pass, & Subsonic Crossovers
• LED power (green) and protect (red) indicators
• Input sensitivity: 500 mV - 12V
• Frequency Response: 20 - 150 Hz
• Total Harmonic Distortion (THD): <0.5%
• Signal to Noise Ration: 70 dB
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Variable low-pass filter: 35 - 250 Hz, 12 dB/octave
• Subsonic filter: 10 - 50 Hz , 12 dB/octave
• Fuse Rating: 30A x 1

Specifications:

Power Specifications - Subwoofer Channel:

• RMS Power @ 4 ohms: 250 watts x 1 channels
• RMS Power @ 2 ohms: 350 watts x 1 channels

Amplifier Specifications:

• Amplifier Series: Stroker Pro (Cerwin Vega)
• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total Peak Power Output: 700 watts
• Total RMS Power Output: 450 watts
• Maximum Input Gauge Size: 8 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: Not Bridgeable
• THD at Rated RMS Power: <0.5%
• Speaker Level Inputs: Yes - with included adapter
• Preamp Outputs: No
• Built-in Crossover: Low-pass (LP), Subsonic
• Low-Pass Crossover Frequency: 35 - 250 Hz
• Subsonic Filter: 10 - 50 Hz
• Signal-to-Noise Ratio: 70 dB
• Bass Boost: 0 - 12 dB
• Bass/Gain Remote: Yes
• Fuse Rating: 30A x 1
• Strappable: No
• CEA-2006 Compliant: No
