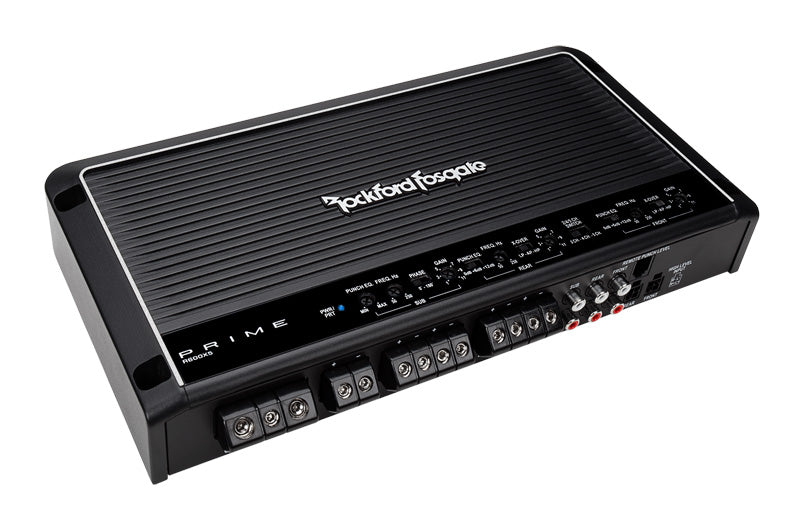

Rockford Fosgate R600X5

Rockford Fosgate
SKU: R600X5
Availability: Out of stock
$399.99




The Prime R600X5 amplifier produces up to 75 Watts into each of its 4-channels plus 300 Watts into a dedicated 5th (subwoofer) channel. This 5-channel design makes it the perfect amplifier when you want one amplifier to run it all! The Prime series offers quality and power from Rockford Fosgate at a great price. Car Audio Fanatics rock out.

Features:

  • Prime Series 5-Channel Class AB Car Amplifier with Class D Subwoofer Channel
  • Channel 1-4 RMS Power Rating:
    • 4 ohms: 50 watts x 4 chan.
    • 2 ohms: 75 watts x 4 chan.
  • Subwoofer Channel RMS Power Rating:
    • 4 ohms: 200 watts x 1 chan.
    • 2 ohms: 300 watts x 1 chan.
  • MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Full-Range Channels Selectable Bass Boost (0/6/12 dB @ 45 Hz)
  • Sub Channel Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • Mono channel operation
  • 50 Amp In-line fuse is highly recommended
  • Heavy duty cast aluminum alloy heatsink for extreme heat dissipation
  • Variable high-pass filter (50-250 Hz, Butterworth 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, Butterworth 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Dimensions: 13-3/16 Inch L x 6-3/4 Inch W x 2 Inch H
  • 4-gauge power and ground wiring is required for installation

Specifications:

Power Specifications: Full Range

  • RMS Power @ 4 ohms: 50 watts x 4 channels
  • RMS Power @ 2 ohms: 75 watts x 4 channels

Power Specifications: Subwoofer

  • RMS Power @ 4 ohms: 200 watts x 1 channels
  • RMS Power @ 2 ohms: 300 watts x 1 channels

Amplifier Specifications:

  • Amplifier Class: AB / D
  • Number of Channels: 5
  • Total RMS Power Output: 600 watts
  • Maximum Input Gauge Size: 4 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: Not Bridgeable
  • THD at Rated RMS Power: 1.0%
  • Speaker Level Inputs: Yes
  • Preamp Outputs: 1 pair
  • Built-in Crossover: LP/HP
  • High-Pass Crossover Frequency: 50 - 250 Hz
  • Low-Pass Crossover Frequency: 50 - 250 Hz
  • Signal-to-Noise Ratio: 100 dB
  • Bass Boost: 0 - 12 dB
  • Bass/Gain Remote: Optional
  • Fan Cooled: No
  • CEA-2006 Compliant: Yes
  • Strappable: No
