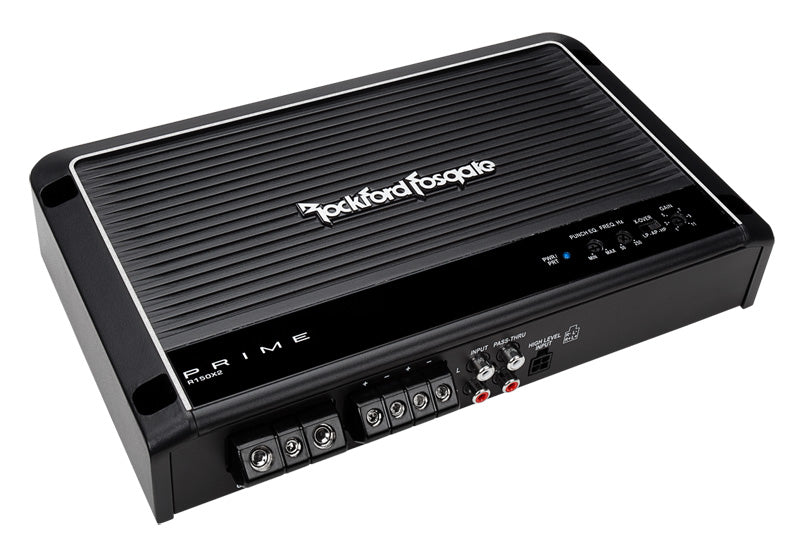

Rockford Fosgate R150X2

Rockford Fosgate
SKU: R150X2
Availability: 1 in stock
$76.99
Hurry, there are only 1 item(s) left!

QTY:

An amplifier topology with the best of both worlds; a Class A preamp and Class B output stage. Class A topologies area great for sound quality but can require alot of current. Class B designs are great for power delivery. Amplifier designs utilizing a Class A/B topology reaps the benefit of great sound quality in the front-end (preamplifier stage) while delivering great power in the output stages (MOSFET drivers).

Features:

  • Prime Series Full Range Class AB 2-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 2 chan.
    • 2 ohms: 75 watts x 2 chan.
    • Bridged, 4 ohms: 150 watts x 1 chan.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or mono channel operation

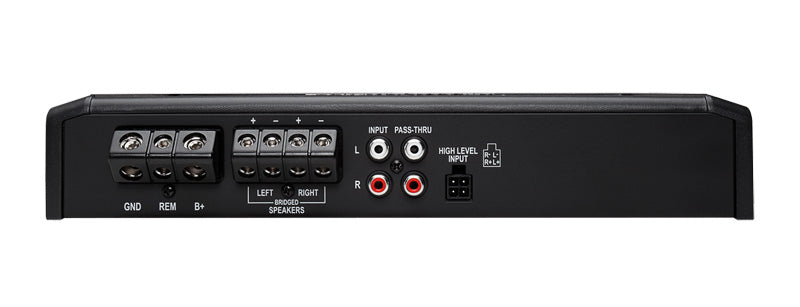

  • Speaker-level (high-level) inputs with included molex plugs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 150mV - 4V
    • High level: 450mV - 12V
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ration: >100 dB
  • Selectable crossover modes: LP / AP / HP
  • Variable crossover filter: 50 - 250 Hz, 12 dB/octave
  • Variable Bass Boost, Punch EQ: 0 - +12 dB bass boost at 45 Hz
  • 8 - 16 gauge speaker terminals
  • 20 Amp In-line fuse is highly recommended, not included
  • Dimensions: 11.2 Inch W x 6.8 Inch D x 2 Inch H

Specifications:

Power Specifications - Full Range Channels:

  • RMS Power @ 4 ohms: 50 watts x 2 channels
  • RMS Power @ 2 ohms: 75 watts x 2 channels
  • Bridged RMS Power: 150 watts x 1 channels

Amplifier Specifications:

  • Amplifier Series: Prime (Rockford Fosgate)
  • Amplifier Class: AB
  • Number of Channels: 2
  • Total Peak Power Output: 300 watts
  • Total RMS Power Output: 150 watts
  • Maximum Input Gauge Size: 4 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: 4 ohms
  • THD at Rated RMS Power: 1.0%
  • Speaker Level Inputs: Yes
  • Preamp Outputs: 1 pair
  • Built-in Crossover: Low-Pass (LP), High-Pass (HP), Full (AP)
  • High-Pass Crossover Frequency: 50 - 250 Hz
  • Low-Pass Crossover Frequency: 50 - 250 Hz
  • Signal-to-Noise Ratio: 100 dB
  • Channel Separation: 50 dB
  • Bass Boost: 0 - 12 dB
  • Bass/Gain Remote: No
  • Fan Cooled: No
  • Fuse Rating: 20A X 1 In-Line Fuse Recommended
  • Strappable: No
  • CEA-2006 Compliant: Yes
