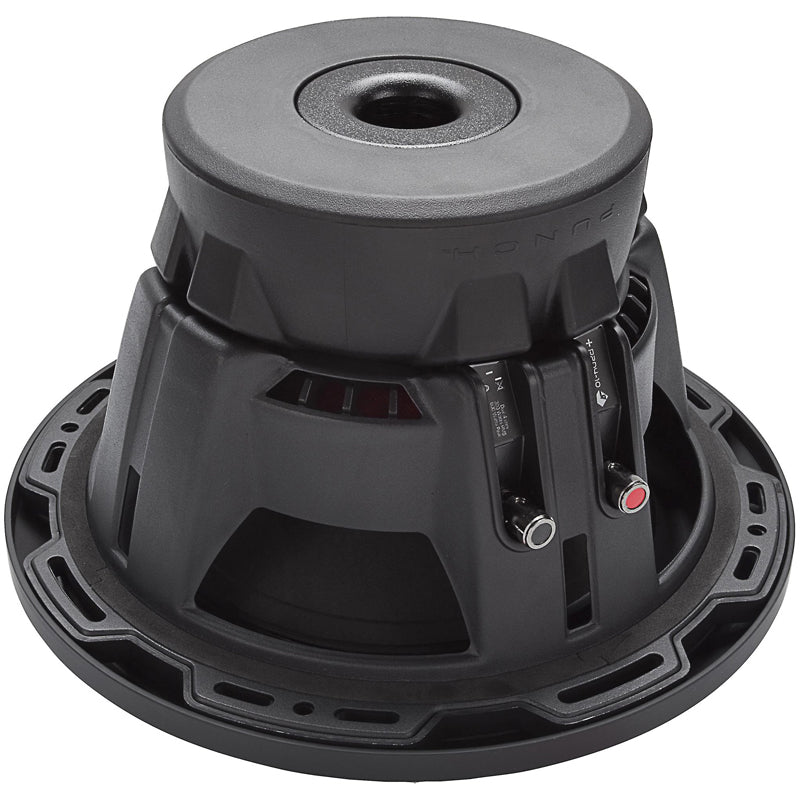

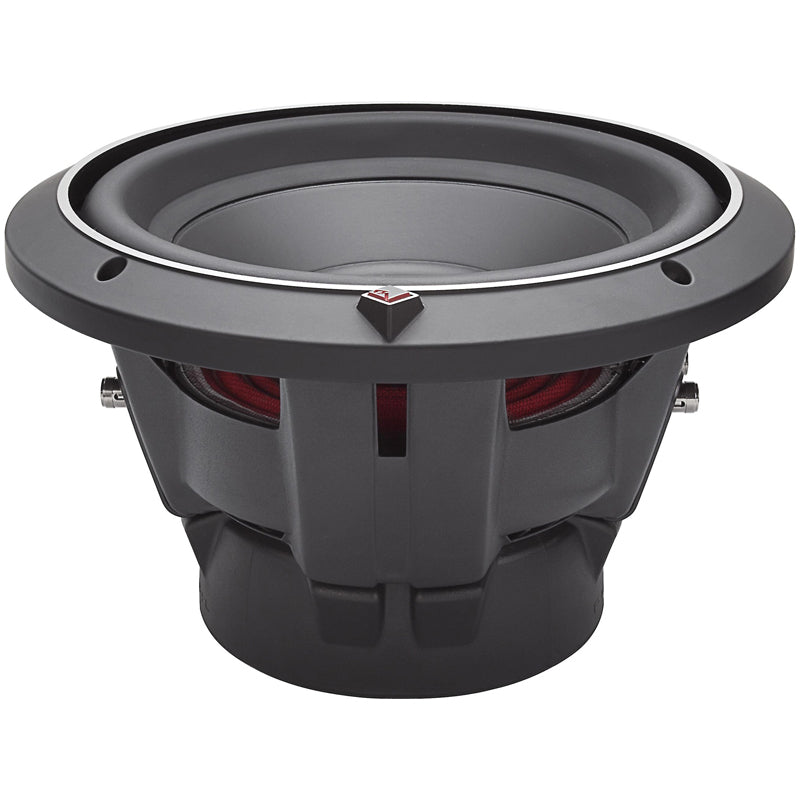

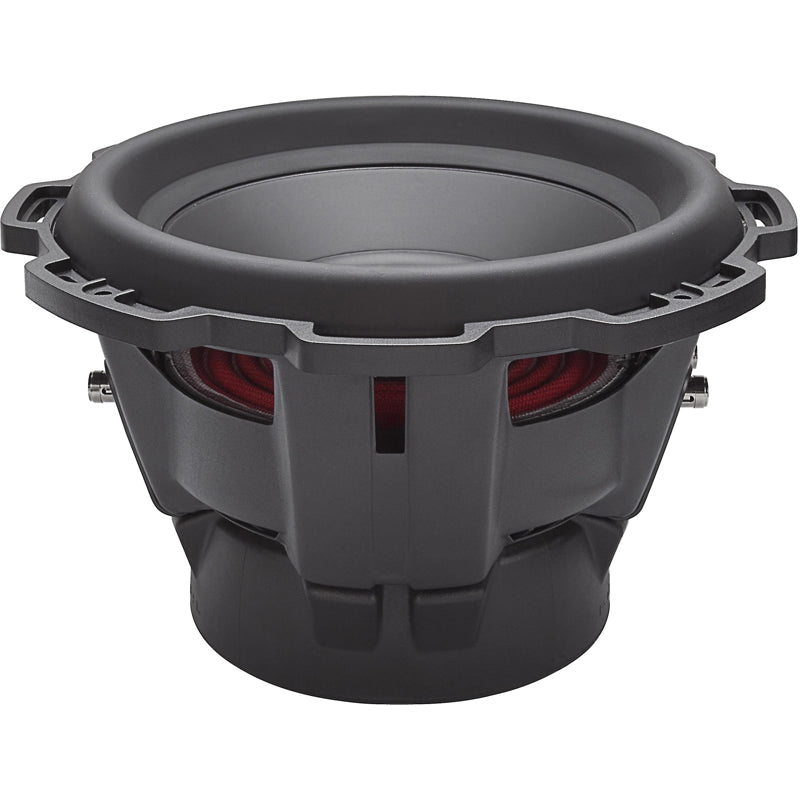

Rockford Fosgate Punch P2D2-10

Features:

• 10" Dual 2 ohm Punch Stage 2 Subwoofer
• Power Handling:
• Peak: 600 watts
• RMS: 300 watts
• Recommended power range: 250 - 375 watts RMS
• CEA-2031 Compliant
• Klippel Verified
• Flex-fit Mounting pattern
• Proprietary spider venting/cooling technique
• StampCast basket with integrated spider venting
• Sturdy 16 gauge compound bend frame geometry
• High modulus Kevlar re-inforced paper-pulp cone
• Semi-flexible, PVC removable protective motor cover
• Multi-point high-temp/high-strength neck joint bonding technique
• Tall-profile VAST Santoprene surround for larger surface area
• Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
• Fatigue resistant and reduced strain "stitched on" flexible lead wire design
• Proprietary all metal, radially oriented compression input terminal assembly
• Optimized motor magnetics with extended pole and bumped vented backplate
• High temp 2.25" voice coil w/ spun-laced Nomex insulating re-inforcement collar
• Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
• Mounting Depth: 5.92"
• Cutout Diameter: 9.13"
• Magnet Weight: 66.40 oz
• Frequency Response: 29 - 250 Hz
• Xmax: 11.0 mm
• Sensitivity: 84 dB @ 1 watt / 1 meter
• Recommended Ported Enclosure: 1.40ft³ @40.0 Hz
• Recommended Sealed Enclosure: 0.59ft³ @46.6 Hz

Specifications:

Subwoofer Specifications:

• Subwoofer Series: Punch P2 (Rockford Fosgate)
• Subwoofer Size: 10"
• Peak Power Handling: 600 watts
• RMS Power Handling: 300 watts
• Voice Coil(s): Dual
• Impedance (Per Voice Coil): 2 ohms
• Voice Coil Diameter: 2.25"
• Frequency Response: 29 - 250 Hz
• Sensitivity: 84 dB
• Xmax (millimeters): 11 mm
• Subwoofer Design: Round / Circle
• Main Cone Color: Black
• Woofer Composition: Kevlar Reinforced Pulp Paper
• Woofer Surround: Rubber
• Re-Cone Kit Available: No

Electromechanical Parameters:

• Free-Air Resonance (Fs): 29.00 Hz
• Equivalent Compliance (Vas): 35.4 liters
• Total Speaker Q Value (Qts): 0.50
• Electrical Q Value (Qes): 0.54
• Electrical Resistance of Voice Coil (Re): 3.20 ohms
• Mechanical Q Value (Qms): 7.00
• Efficiency Bandwidth Product (EBP): 54
