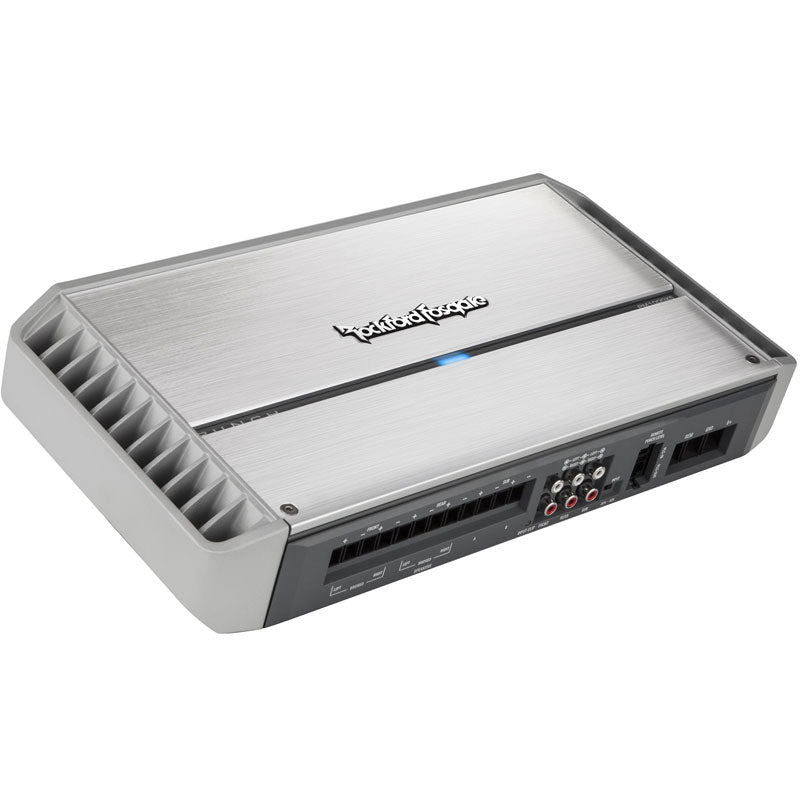

Rockford Fosgate PM1000X5

Rockford Fosgate
SKU: PM1000X5
Availability: Out of stock
$749.99




Features:

  • 5-Channel Punch Series Class-bd Marine Amplifier
  • RMS Power Rating: 4 Channel + Sub Channel
    • 4 ohm: 75 watts x 4 chan. + 150 watts x 1 chan.
    • 2 ohm: 125 watts x 4 chan. + 300 watts x 1 chan.
    • 1 ohm: (subwoofer channel only) 500 watts x 1 chan.
  • Dynamic Power: 4 Channel + Sub Channel
    • 4 ohm: 115 watts x 4 chan. + 299 watts x 1 chan.
    • 2 ohm: 190 watts x 4 chan. + 540 watts x 1 chan.
    • 1 ohm: (subwoofer channel only) 863 watts x 1 chan.
  • Includes a Rockford Fosgate Performance Verification Certificate
    w/ Inspection Data & Actual Power Rating, (aka "Birth Sheet")
  • CEA-2006 compliant amplifier
  • LED power (blue) and protect (red) indicators
  • Muted turn on

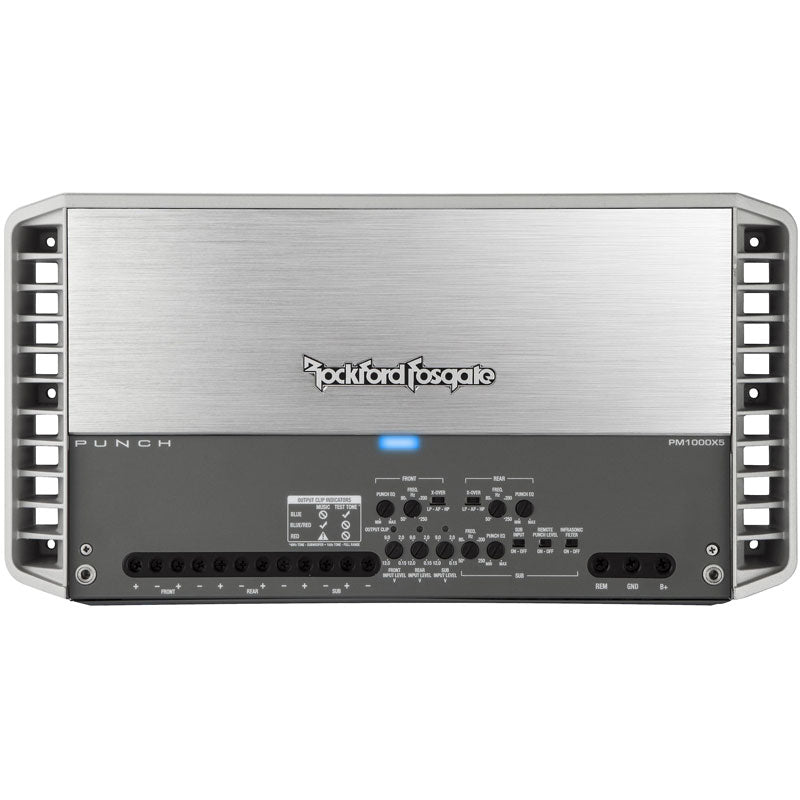

  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • 2/4 channel input switch

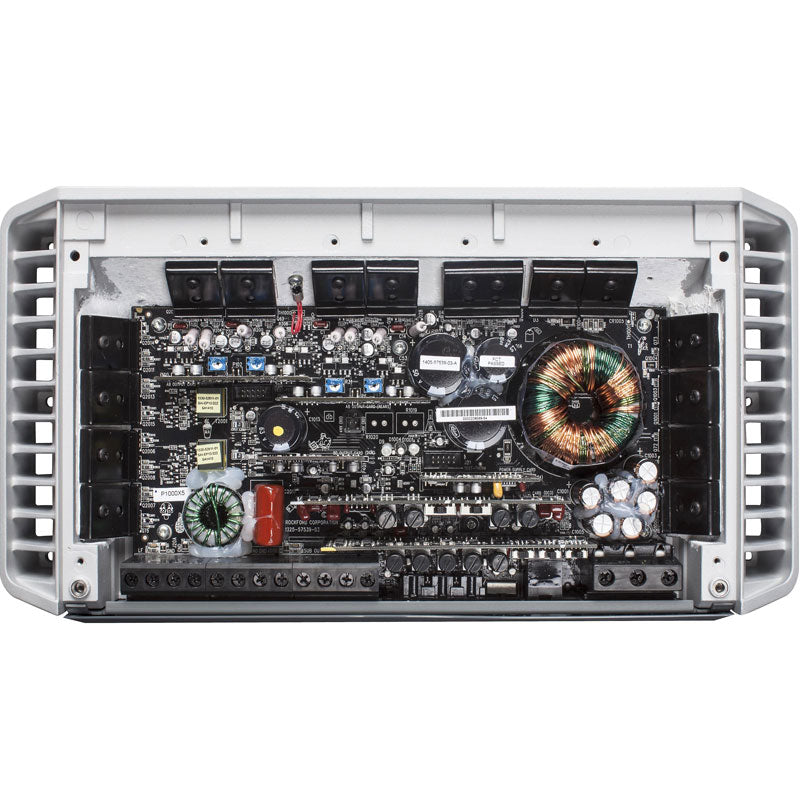

  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables
  • Protected against Dust, UV, & Corrosion
  • Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
  • Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen3)
  • Input sensitivity: 150 mV - 12 V
  • F/R Frequency Response: 20 - 20,000 Hz
  • Sub Frequency Response: 20 - 500 Hz
  • F/R Efficiency (average): 66% @ 4-Ohm
  • Sub Efficiency (average): 80% @ 4-Ohm
  • Total Harmonic Distortion (THD): <1.0%
  • Punch EQ Bass: 0 - +18dB boost @ 45Hz.
  • 12dB/octave Butterworth crossover (selectable)
  • Variable high-pass filter (F/R): 50 - 250 Hz, 12 dB/octave
  • Selectable subsonic/infrasonic filter (Sub): off / 28 Hz, 12 dB/octave
  • Variable low-pass filter (Sub): 50 - 250 Hz, 12 dB/octave
  • Recommended Fuse Rating: 150A x 1 inline (not included)
  • Operating Voltage: 9 - 16 VDC
  • Max Current Draw: 150 A
  • Average Current Draw: 75 A
  • Power Wire Gauge: 4 AWG
  • Speaker Wire Gauge: 12 AWG

Specifications:

Power Specifications - Full Range Channels:

  • RMS Power @ 4 ohms: 75 watts x 4 channels
  • RMS Power @ 2 ohms: 125 watts x 4 channels
  • RMS Power @ 1 ohm: Not Stable

Power Specifications - Subwoofer Channel:

  • RMS Power @ 4 ohms: 150 watts x 1 channels
  • RMS Power @ 2 ohms: 300 watts x 1 channels
  • RMS Power @ 1 ohm: 500 watts x 1 channels

Amplifier Specifications:

  • Amplifier Class: AB & BD
  • Number of Channels: 5
  • Total RMS Power Output: 1000 watts
  • Maximum Input Gauge Size: 4 AWG
  • THD at Rated RMS Power: <1.0%
  • Speaker Level Inputs: Optional (Requires Accessory Adapter)
  • Preamp Outputs: No
  • Built-in Crossover: Low-Pass (LP), High-Pass (HP), Subsonic
  • High-Pass Crossover Frequency: 50 - 250 Hz
  • Low-Pass Crossover Frequency: 50 - 250 Hz
  • Subsonic Filter: Switchable Off/28 Hz
