Rockford Fosgate PBR300X2

Rockford Fosgate
SKU: PBR300X2
Availability: 3 in stock
$235.55
Hurry, there are only 3 item(s) left!

QTY:

Features:

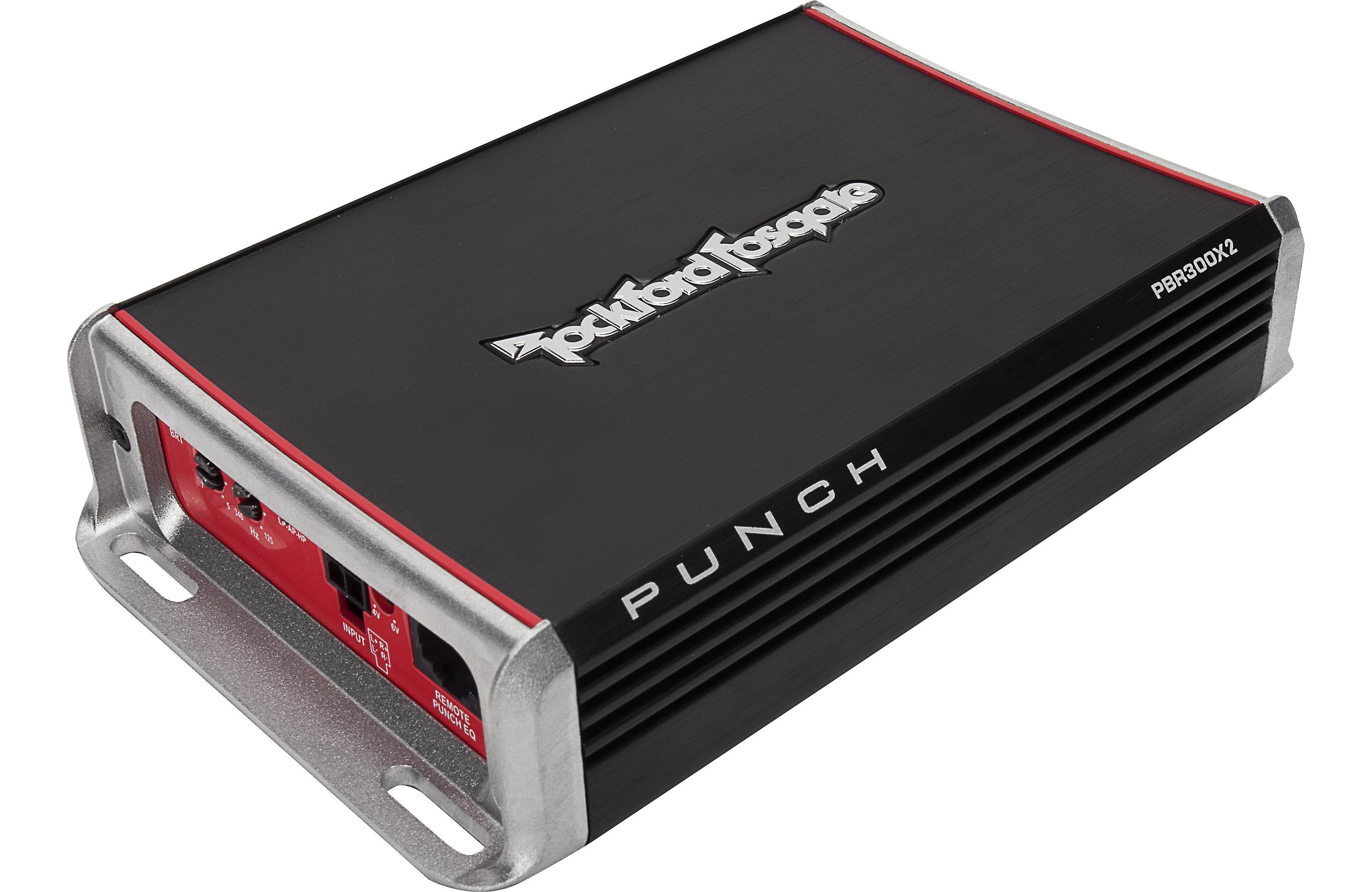

  • Punch Series BR Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 100 watts x 2 chan.
    • 2 ohms: 150 watts x 2 chan.
    • 4 ohm Bridged: 300 watts x 1 chan.
  • Features Rockford Fosgate's Class-BR Topology
  • CEA-2006 compliant amplifier
  • Ultra compact chassis
  • MOSFET output stage
  • Boosted Rail amp technology
  • Convection cooling design
  • Extruded aluminum heat sink
  • Low level RCA input connection
  • High level speaker input connection
  • Detachable Compression Terminals
  • 12dB / Octave Butterworth crossover
  • Selectable crossover mode: LP/AP/HP
  • LED power (blue) and protect (red) indicators
  • Variable 4-6 volt hi level DC offset voltage input turn-on control
  • Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen. 3)
  • Perfect for smaller stealth installations
  • Great for motorcycles and recreational vehicles
  • Wiring w/ Mounting Plate for Harley-Davidson Motorcycles Available: Rockford Fosgate RFKHD9813
  • 16 Gauge speaker wire output terminals
  • 10 gauge OFC power and ground wiring is recommended for installation.

Specifications:

  • Input sensitivity:
    • Low level: 150mV - 4V
    • High level: 400mV - 11V
  • Operating voltage: 9 - 16 VDC
  • Recommended fuse rating: 50 A x 1
    (not included)
  • Max. current draw (13.8V Sinewave): 45 A
  • Average current draw (13.8V Music): 23 A
  • Frequency response: 20 - 20,000 Hz, +/- 3 dB
  • Total harmonic distortion: <1.0%
  • Signal to Noise Ratio: ≥100 dB
  • CMRR: >55 dB @ 1 kHz
  • Damping Factor: >200
  • High-Pass: 50Hz - 500Hz @ 12dB/Octave
  • Low-Pass: 50Hz - 500Hz @ 12dB/Octave
  • CEA-2006 Power Rating: 100W x 2 @ 4Ω ≤1.0% THD+N
  • Dimensions: 6.75 Inch L x 4.25 Inch W x 1.53 Inch H
