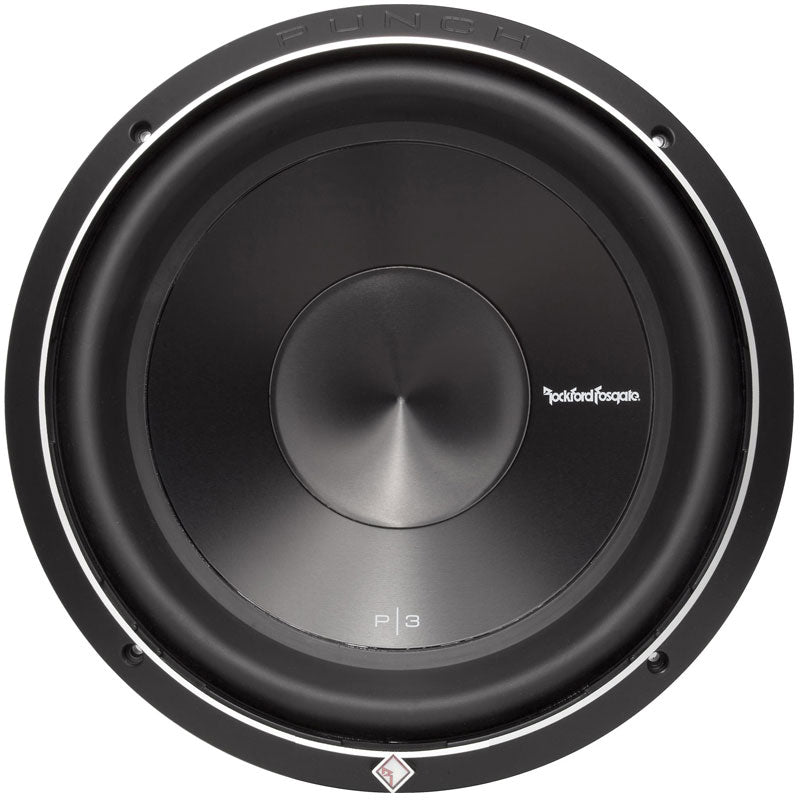

Rockford Fosgate P3D2-12
Rockford Fosgate P3D2-12
Rockford Fosgate P3D2-12
Rockford Fosgate P3D2-12
Rockford Fosgate P3D2-12
Rockford Fosgate P3D2-12
Rockford Fosgate P3D2-12
Rockford Fosgate P3D2-12
Rockford Fosgate

Rockford Fosgate P3D2-12

$219.99 0 items left

Sold out

BRAND: Rockford Fosgate SKU: P3D212 PRODUCT ID: 1405000122410 SHIPPING WEIGHT: 21.5 lb

2-6 DAYS DELIVERY

100% ORIGINAL AND QUALITY

1 YEAR MANUFACTURER WARRANTY

  • Description
  • Reviews

Features:

  • 12 Inch Dual 2 ohm Punch Stage 3 Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended power range: 300 - 700 watts RMS
  • CEA-2031 Compliant
  • Klippel Verified
  • Flex-fit Mounting pattern
  • Proprietary spider venting/cooling technique
  • StampCast basket with integrated spider venting
  • Sturdy 16 gauge compound bend frame geometry
  • High modulus Kevlar re-inforced paper-pulp cone
  • Semi-flexible, PVC removable protective motor cover
  • Multi-point high-temp/high-strength neck joint bonding technique
  • Tall-profile VAST Santoprene surround for larger surface area
  • Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
  • Fatigue resistant and reduced strain Inchstitched on Inch flexible lead wire design
  • Proprietary all metal, radially oriented compression input terminal assembly
  • Optimized motor magnetics with extended pole and bumped vented backplate
  • High temp 2.5 Inch voice coil w/ spun-laced Nomex insulating re-inforcement collar
  • Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
  • Mounting Depth: 6.66 Inch
  • Cutout Diameter: 11.25 Inch
  • Magnet Weight: 96 oz
  • Frequency Response: 26.5 - 250 Hz
  • Xmax: 15.2mm
  • Sensitivity: 85 dB @ 1 watt / 1 meter
  • Recommended Ported Enclosure: 1.79ft³
  • Recommended Sealed Enclosure: 1.02ft³
  • Matching Amplifiers: (one subwoofer)
    • Rockford Fosgate P500X1BD, Parallel @1ohm
      ✔ Preferred Match
    • Rockford Fosgate PBR500X1, Parallel @1ohm
  • Matching Amplifier: (two subwoofers)
    • Rockford Fosgate R1200-1D, Series/Parallel @2ohms
      ✔ Preferred Match

Specifications:

Subwoofer Specifications:

  • Subwoofer Series: Punch P3 (Rockford Fosgate)
  • Subwoofer Size: 12 Inch
  • Peak Power Handling: 1200 watts
  • RMS Power Handling: 600 watts
  • Voice Coil(s): Dual
  • Impedance (Per Voice Coil): 2 ohms
  • Voice Coil Diameter: 2.5 Inch
  • Frequency Response: 27.7 - 250 Hz
  • Sensitivity: 85 dB
  • Xmax (millimeters): 16.2 mm
  • Subwoofer Design: Round / Circle
  • Main Cone Color: Black
  • Woofer Composition: Anodized Aluminum
  • Woofer Surround: Santoprene Rubber
  • Magnet Structure: Double Stacked
  • Subwoofer Grille: Optional (Accessory required and sold separately)
  • Re-Cone Kit Available: No

Recommended Enclosure Specifications:

  • Recommended Enclosure Type: Ported / Vented, Sealed
  • Minimum Sealed Box Volume: 0.75 cubic feet
  • Maximum Sealed Box Volume: 1.25 cubic feet
  • Minimum Ported Box Volume: 1.79 cubic feet
  • Maximum Ported Box Volume: 1.79 cubic feet
  • Top-Mount Depth: 6-11/16 Inch
  • Cutout Diameter: 11-1/4 Inch
  • Shallow Mount Installation: No

Electromechanical Parameters:

  • Free-Air Resonance (Fs): 26.5 Hz
  • Equivalent Compliance (Vas): 57.7 liters
  • Total Speaker Q Value (Qts): 0.49
  • Electrical Q Value (Qes): 0.53
  • Electrical Resistance of Voice Coil (Re): 3.20 ohms
  • Mechanical Q Value (Qms): 6.70
