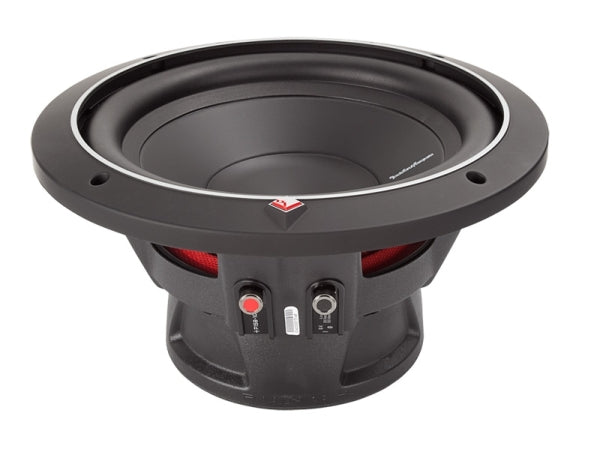

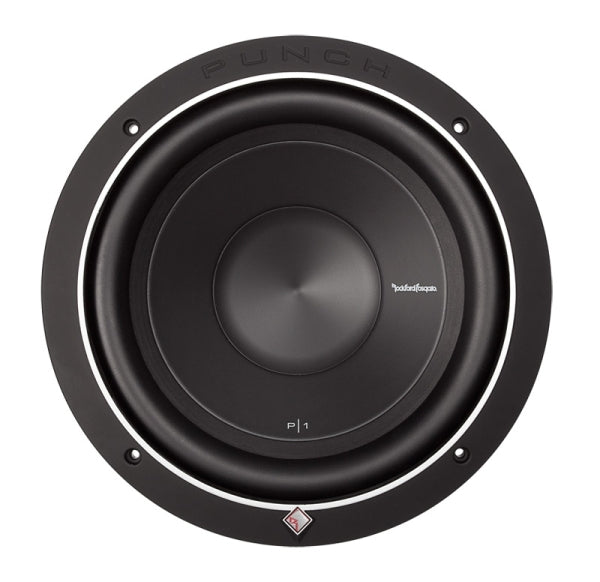

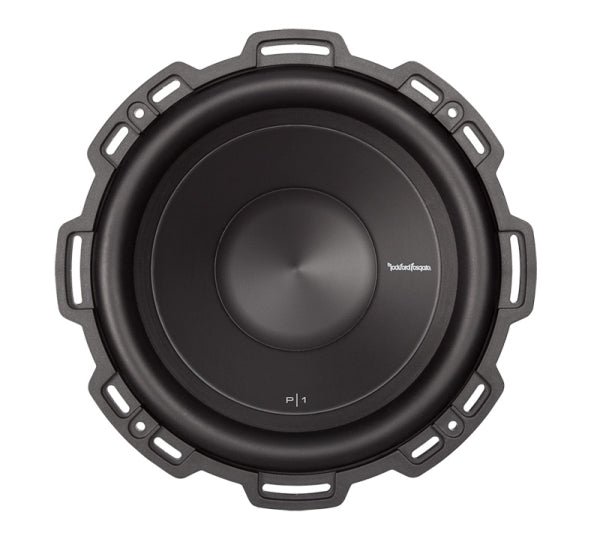

Rockford Fosgate P1S2-10

Features:

• 10 Inch Single 2 Ohm Punch Series Stage 1 Subwoofer
• Power Handling:
  • Peak: 500 watts
  • RMS: 250 watts
• Impedance: Single 2 ohm
• Kevlar reinforced paper cone and dust cap provides durability
• High density NBR half-roll surround for enhanced excursion
• 10 AWG nickel plated compression input push terminal assembly keeps connection secure
• Tear and fatigue resistant poly-cotton spider will hold up against high amounts of excursion
• High temperature 2 Inch 4-layer voice coil with spun laced Nomex insulating reinforcement collar
• Optimized motor magneteics with extended pole piece and bumped backplate
• Multi point high-temperature/high-strength neck joint bonding technique for a cleaner bass output
• High quality 16 gauge compound bend frame geometry adds to the sturdy construction
• Semi flexible PVC removable protective motor cover helps keep motor clean and dust free
• Proprietary spider venting/cooling technique helps keep subwoofer operating at a safe temperature

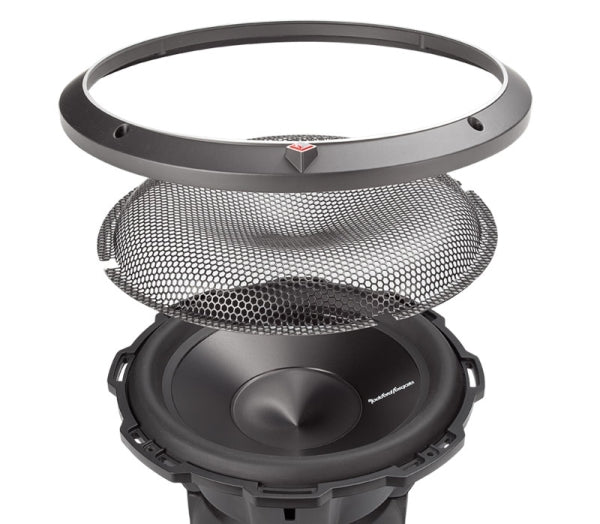

• Decorative ABS trim ring for attractive appearance
• Frequency Response: 23-250 Hz
• Sensitivity: 84 dB
• Xmax: 9mm
• Cutout dimensions: 9-1/8 Inch
• Mounting Depth: 5-3/8 Inch

Specifications:

General Specifications:

• Subwoofer Series: Punch P1
• Subwoofer Size: 10 Inch
• Peak Power Handling: 500 watts
• RMS Power Handling: 250 watts
• Voice Coil(s): Single
• Impedance (Per Voice Coil): 2 ohms
• Voice Coil Diameter: 2 Inch
• Frequency Response: 23 - 250 Hz
• Sensitivity: 85 dB
• Xmax (millimeters): 9.0 mm
• Subwoofer Design: Round / Circle
• Main Cone Color: Black
• Woofer Composition: Kevlar Reinforced Pulp
• Woofer Surround: NBR Half Roll
• Subwoofer Grille: No
• Re-Cone Kit Available: No

Enclosure Specifications:

• Recommended Enclosure Type: Ported / Sealed / Vented
• Minimum Sealed Box Volume: 0.50 cubic feet
• Maximum Sealed Box Volume: 0.85 cubic feet
• Optimum Ported Box Volume: 1.40 cubic feet
• Top-Mount Depth: 5-3/8 Inch
• Cutout Diameter: 9-/18 Inch
• Shallow Mount Installation: No

Electromechanical Parameters:

• Free-Air Resonance (Fs): 32 Hz
• Equivalent Compliance (Vas): 35 liters
• Total Speaker Q Value (Qts): 0.59
