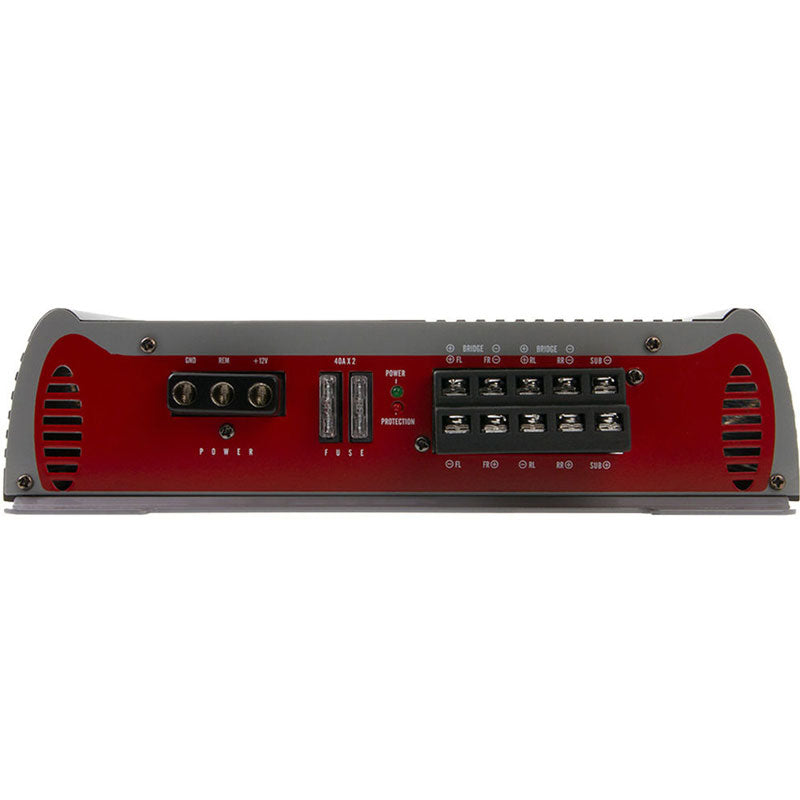

Precision Power TRAX5.2200D 2200W Max (1100W RMS) Trax Series 2-ohm Stable 5 Channel Class-D Amplifier

Features:

• Precision Power Trax Series TRAX5.2200D
• Class-D Full Range 2 ohm Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 100 watts x 4 chan., 350W x Sub chan.
• 2 ohms: 150 watts x 4 chan., 500W x Sub chan.
• 1 ohm: ------------N/A------------
• Bridged, 4 ohms: 300 watts x 2 chan., 500W x Sub chan.
• Total power output: 2200 watts
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• 5/3 channel operation
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Input sensitivity: 200mV - 6V
• Variable high-pass filter: 80- 1200 Hz, 12 dB/octave
• Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost
• Fuse Rating: 40 A x 2

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 100 watts x 4 channels
• RMS Power @ 2 ohms: 150 watts x 4 channels
• Bridged RMS Power: 300 watts x 2 channels

Power Specifications - Subwoofer Channel:

• RMS Power @ 4 ohms: 300 watts x 1 channels
• RMS Power @ 2 ohms: 500 watts x 1 channels

Amplifier Specifications:

• Amplifier Series: Trax
• Amplifier Class: D
• Number of Channels: 5
• Total Peak Power Output: 2200 watts
• Total RMS Power Output: 1100 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• Speaker Level Inputs: No
• Preamp Outputs: No
• Built-in Crossover: Low-Pass (LP), High-Pass (HP)
• High-Pass Crossover Frequency: 80 - 1200 Hz
• Low-Pass Crossover Frequency: 50 - 250 Hz
• Bass Boost: 0 - 12 dB
• Bass/Gain Remote: Yes
• Fuse Rating: 40A x 2
• Total Fuse Rating: 80
• CEA-2006 Compliant: No
