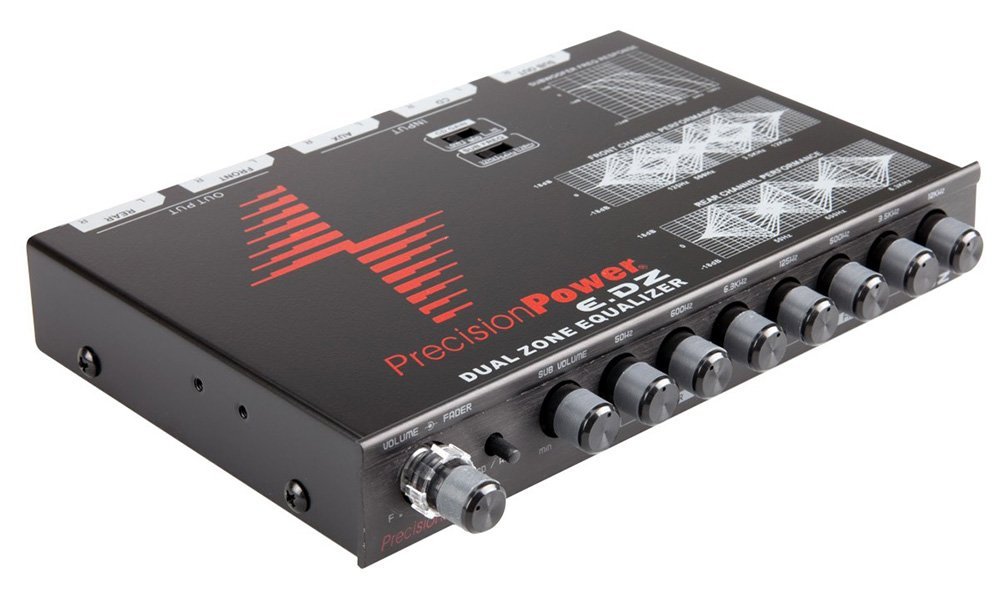

Precision Power E.DZ

Features:

• 7-Band Dual Zone Equalizer
• Customizes and tunes the audio signals
• 20dB Headroom switching power supply
• Built-in low noise Bi-FET Op-amps
• Dual selectable balanced RCA inputs
• Adjustable gain input are the RCA inputs
• Full range of equalization supported with the front, rear, and subwoofer RCA outputs
• Four 18 dB front channel bands: 125, 500, 3500, 12000 Hz
• Three 18 dB rear channel bands: 50, 600, 6300 Hz
• Independent subwoofer level control for low frequencies
• On-board low-pass filter is selectable: 32, 64, 128 Hz
• Fader control
• Red backlit control knobs are easy to see and match select interior lights
• Includes a separate auxiliary input for playback of portable media devices
• Auxiliary switch on the front of the equalizer

Specifications:

• Boost/Cut: 18 dB
• Signal-to-Noise Ratio: 115dB
• Frequency Response: 10-15,000 Hz
• Maximum output voltage:8V RMS
• THD: 0.05%
• Input Sensitivity: 150 mV
• Headroom: 20 dB
• Input Impedance: 10,000 ohms
• Stereo Separation: 82 dB
• Operating Voltage: 11-15V Negative ground
• Output Impedance: 50,000 ohms
• Selectable low-filter: 32, 64, 128 Hz
• Dimensions: 4-1/2 inch D x 7 inch W x 1 inch H
