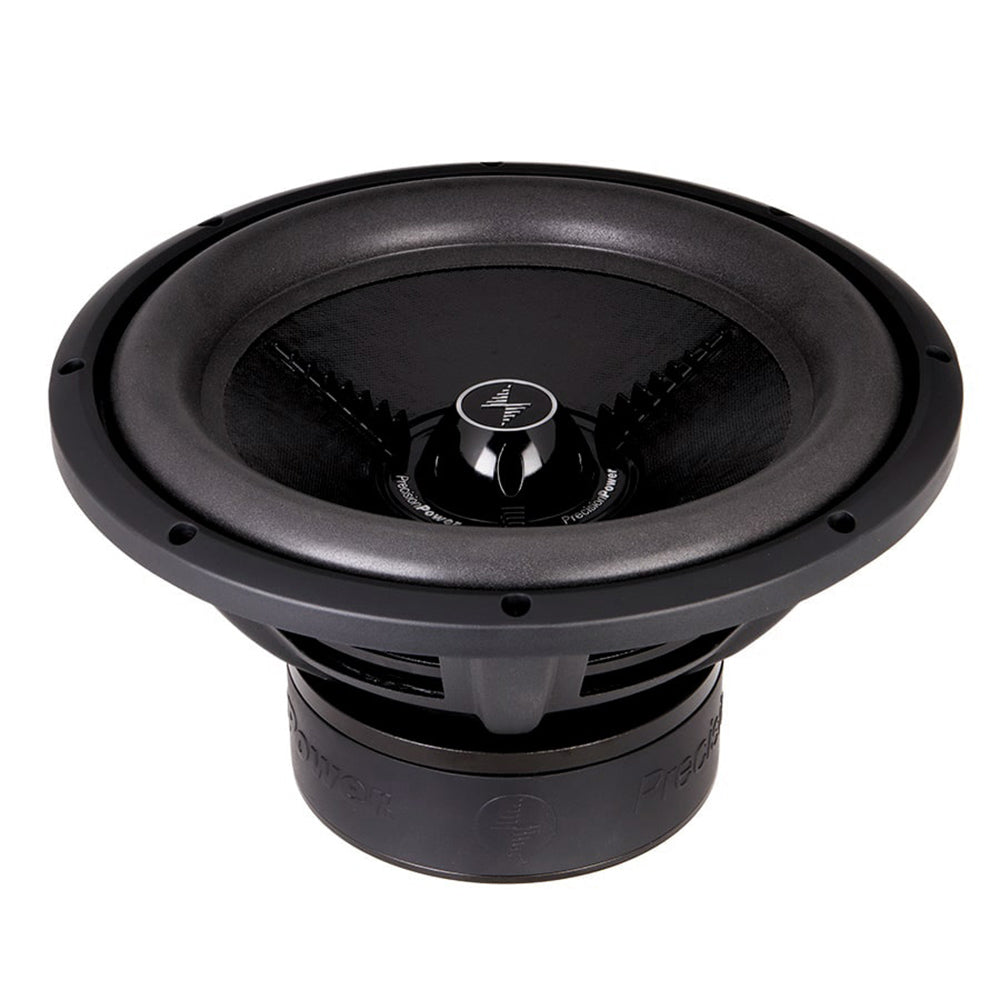

Precision Power AW-12D2 ATOM Series 12 Inch D2 Subwoofers
100% ORIGINAL AND QUALITY
1 YEAR MANUFACTURER WARRANTY
- Description
- Reviews
Description:
Intriguing from the first look, ATOM subwoofers offer more than what meets your eyes… The first thing you noticed was the wild dustcap; it’s not just for your viewing pleasure. The three fins brace the cone and eliminate cone flex during high excursion. And since they are aluminum and couple to the voice coil, they act as a heatsink or heat extractor. Essential to keeping the subwoofers more relaxed and helping them last longer. ATOM subs use a composite sandwich cone with a polypropylene surface for durability and Spruce pulp backing for smooth low bass. This new series for Precision Power will use an aluminum dust cap that couples to the voice coil former and extends over the cone. Sparing no compromise, the ATOM series’s motor assembly includes an extended tap top plate, which expands the magnetic field results in dynamic sounds & performance quality you demand and expect. ATOM subwoofers are engineering to be a pinnacle of Precision Power, delivering you absolutely state-of-the-art mobile audio.
Features:

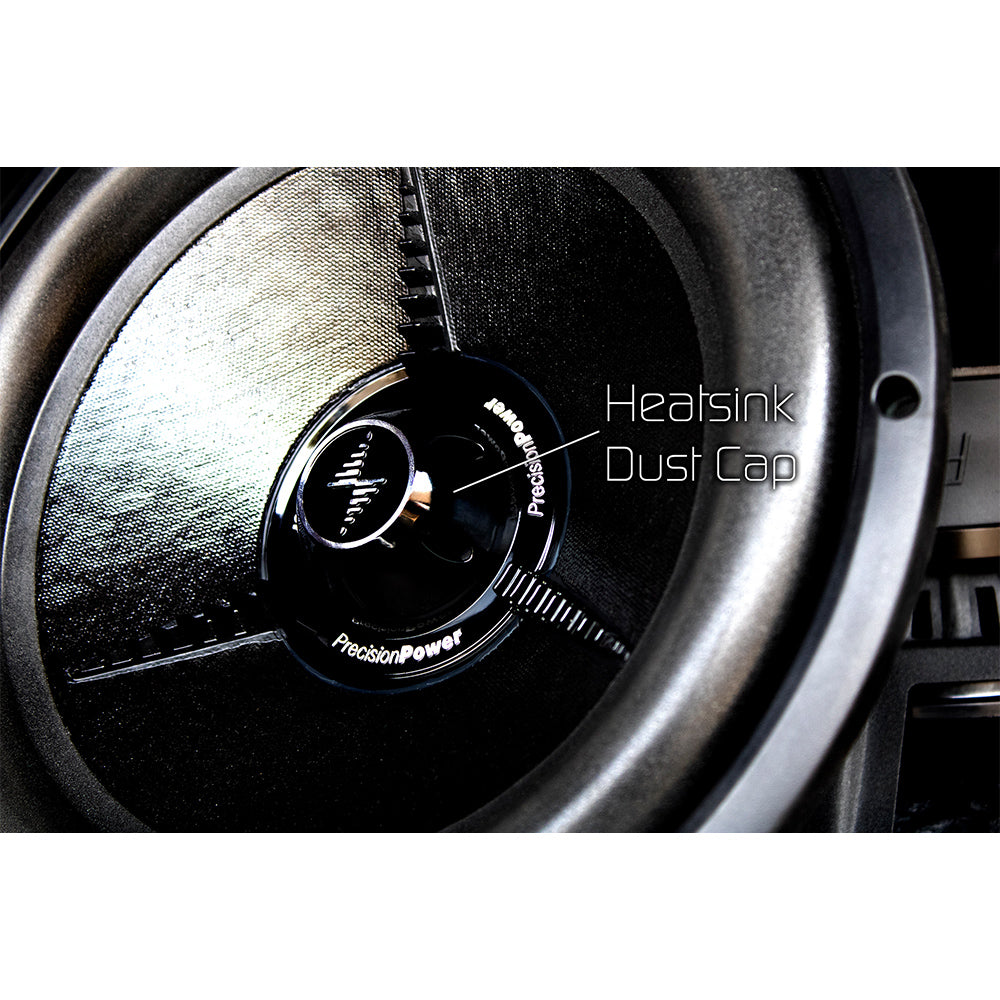

Cast Aluminum Heatsink Dust CapAbsorbs & Dissipates heat directly from the thermal voice coil.
Aluminum Dust Cap Strength’s Rigidity
Eliminates cone flex & eradicated distortion during the intense excursion
Dual Poly-Cotton Suspension for Magnetic Gap
Dampens violent accelerations ensuring diaphragm alignment

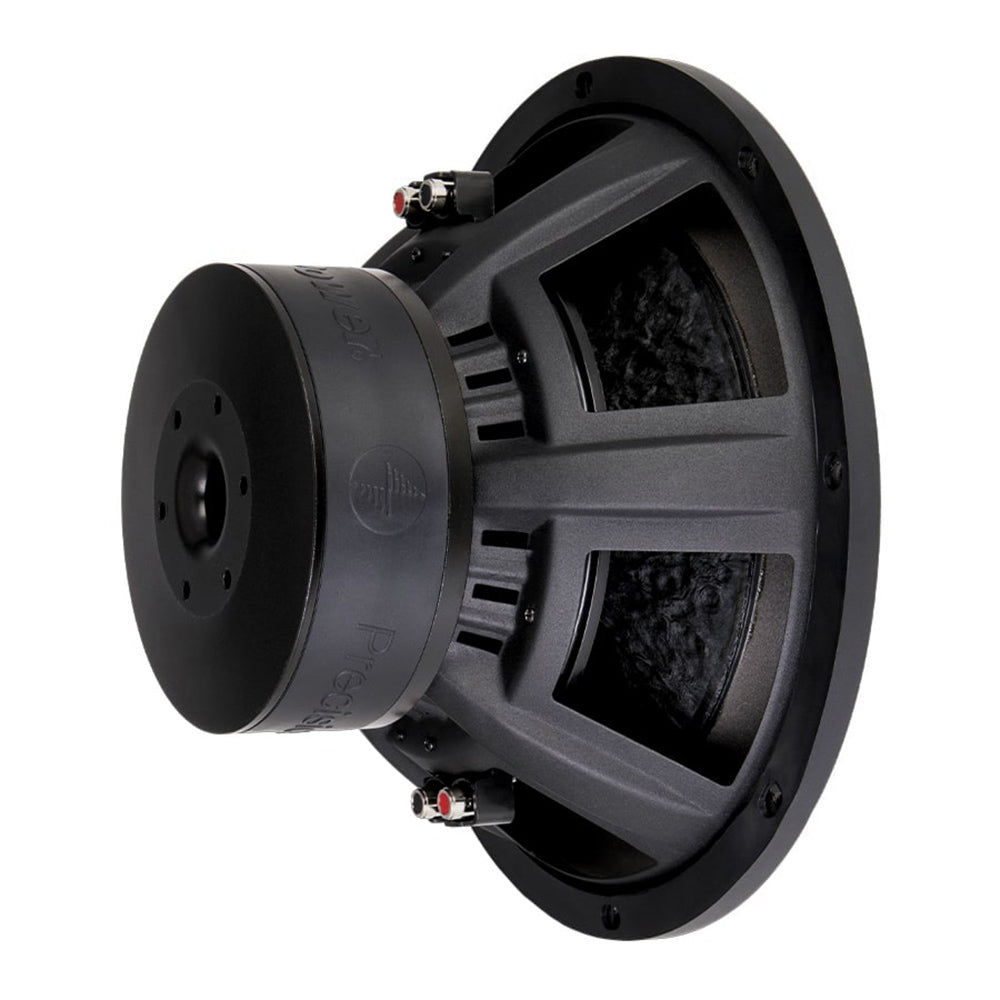

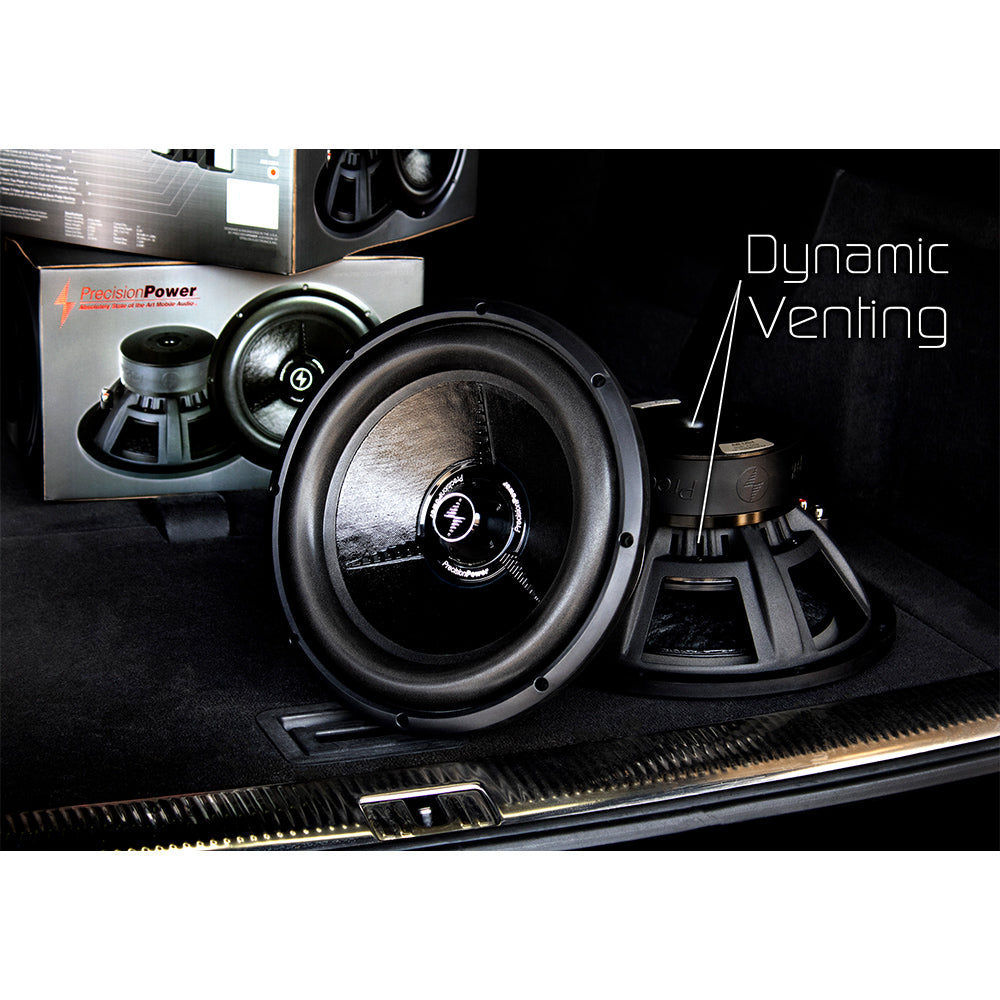

Hot Forged 1-Piece T-Yoke w/ Center pol & Back Venting
Venting milled into the T-Yoke & Backplate removed by Convention Transfer
Specifications:
- Fs (hz): 24.77
- Qms: 6.45
- Vas (ft^3): 63.02
- Cms (mm/n): 184
- Mms (g): 220.19
- Xmax: 22.5
- Dia (in.): 12″
- Sd (in^2): 1.00Ft³
- Vd (ft^3): 2.00Ft³
- Qes: .54
- Re (Ohms): 3.83
- Z (Ohms): 4
- Pe (Watts): 1,200
- Qts: .49
- SPL 1W/1M: 84.50dB
- VC DIA (in.): 2.5”
- VC (Ohms): 2Ω DVC
- Mounting Depth: 6.25″
