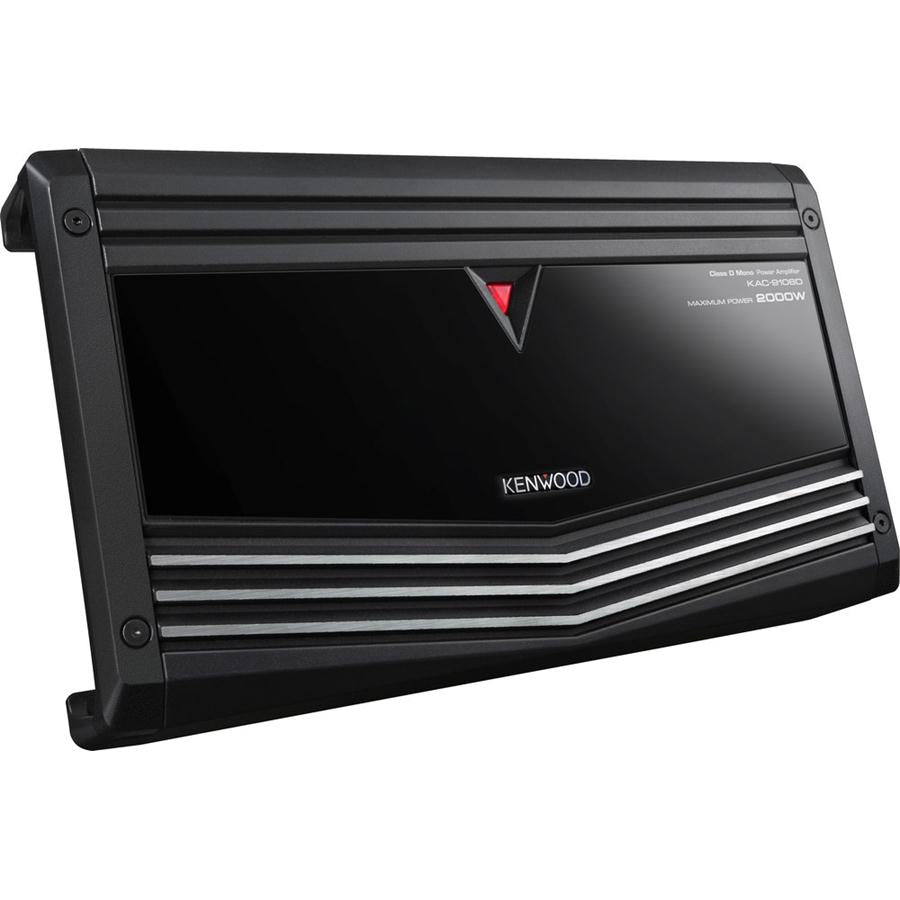

Kenwood KAC-9106D

Features:

• Performance Series Monoblock Class D Car Amplifier
• RMS Power Rating:
• 4 ohms: 500 watts x 1 chan.
• 2 ohms: 1000 watts x 1 chan.
• Max power output: 2000 watts
• Variable Bass Boost (0 to +18 dB bass boost at 40 Hz)
• Mono channel operation
• Speaker-level (high-level) inputs with signal sensing for automatic turn-on
• Variable low-pass filter (50-200 Hz, 24 dB/octave)
• Subsonic filter (24 dB at 20 Hz)
• CEA-2006 Compliant
• Dimensions: 13-13/16 InchW x 7-9/16 InchD x 2-3/16 InchH

Specifications:

• Amplifier Series: Performance (Kenwood)
• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total Peak Power Output: 2000 watts
• Total RMS Power Output: 1000 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: Not Bridgeable
• THD at Rated RMS Power: 1%
• Speaker Level Inputs: Yes
• Preamp Outputs: 1 pair
• Built-in Crossover: Low-Pass (LP)
• Low-Pass Crossover Frequency: 50 - 200 Hz
• Subsonic Filter: 20 - 50 Hz
• Signal-to-Noise Ratio: 100 dB
• Bass Boost: 0 - 18 dB
• Bass/Gain Remote: No
• Fan Cooled: No
• Fuse Rating: 40A x 3
• CEA-2006 Compliant: Yes
