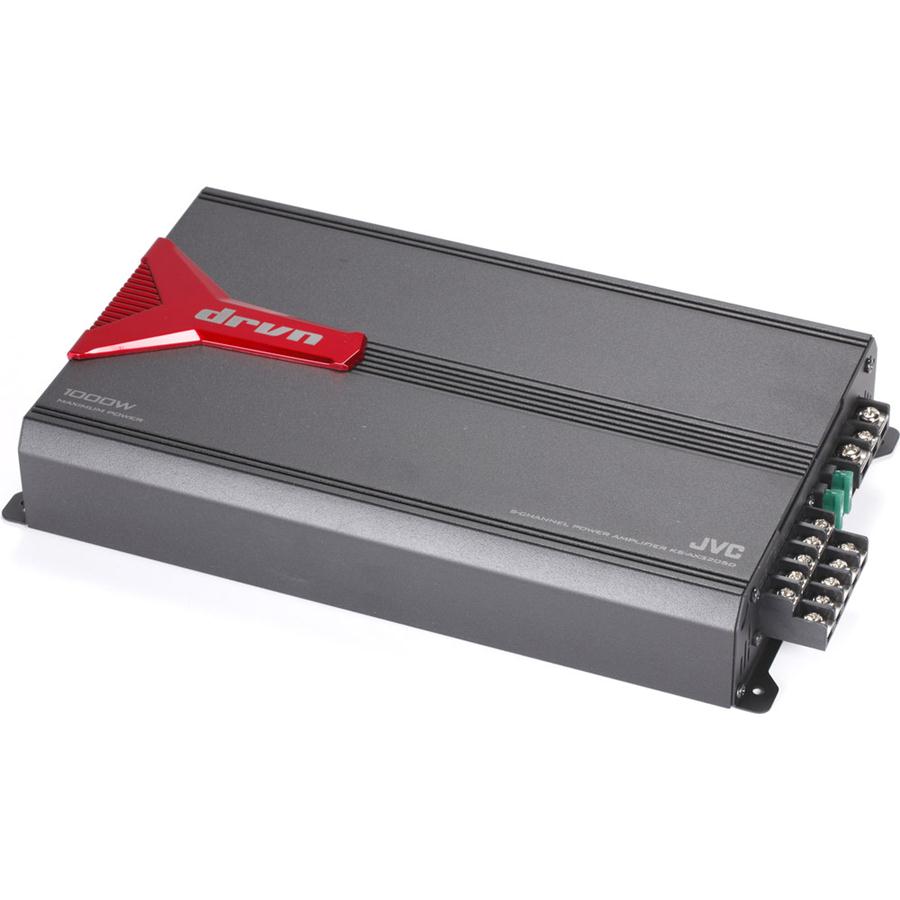

JVC KS-AX3205D

Jvc
SKU: KS-AX3205D
Availability: Out of stock
$141.41




Features:

  • DRVN Series 5-Channel Class D Car Amplifier
  • Channel 1-4 RMS Power Rating:
    • 4 ohms: 50 watts x 4 chan.
    • 2 ohms: 65 watts x 4 chan.
    • Bridged, 4 ohms: 130 watts x 2 chan.
  • Subwoofer RMS Power Rating:
    • 4 ohms: 200 watts x 1 chan.
    • 2 ohms: 300 watts x 1 chan.
  • Max power output: 1000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
  • Soft start turn-on
  • 5/4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 200mV-5V
    • High level: 600mV-15V
  • Variable high-pass filter (50-200 Hz, 12 dB/octave)
  • Variable low-pass filter (50-200 Hz, 18 dB/octave)
  • Fixed subsonic filter
  • CEA-2006 compliant amplifier
  • Also found as: KSAX3205D
  • Dimensions: 13-7/16""W x 7-5/16""D x 2-1/8""H

Specifications:

  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-200 Hz
  • Low-Pass Slope (dB/octave): 18 dB/octave
  • High-Pass Crossover Frequency: 50-200 Hz
  • High-Pass Slope (dB/octave): 12 dB/octave
  • Bass Boost: 0-18 dB
  • Bass Boost Frequency: 45 Hz
  • Fan Cooled NoFuse Rating: 60
  • Speaker Level Inputs: Harness
  • Preamp Outputs: No
  • Width (inches): 13-13/16
  • Height (inches): 2-1/4
  • Depth (inches): 7-3/8
