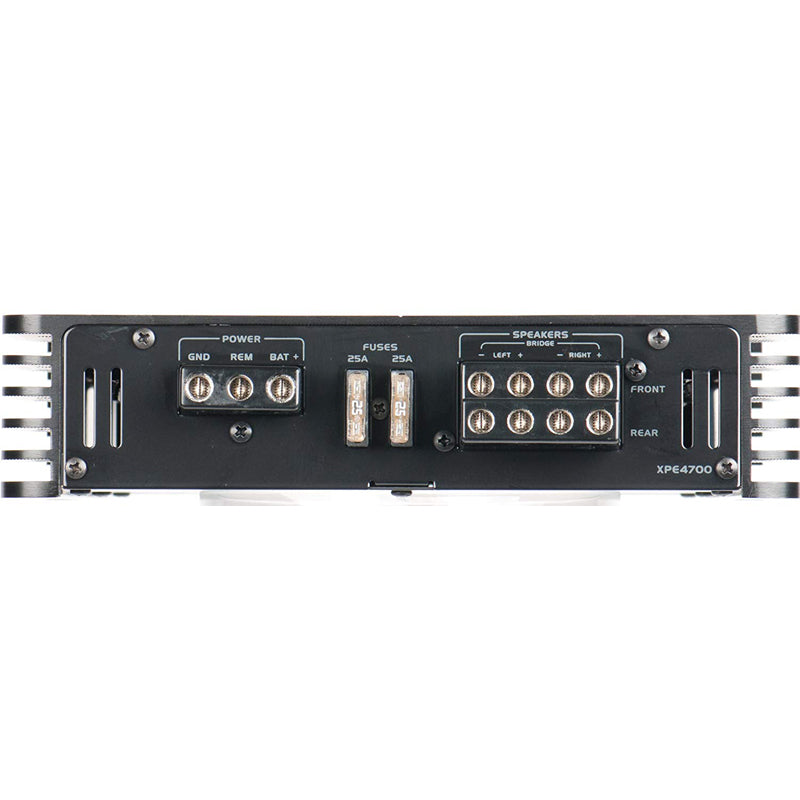

Dual Electronics XPE4700 2/1 High Performance Power MOSFET Class A/B Car Amplifier with 800-Watts Dynamic Peak Power
Dual Electronics XPE4700 2/1 High Performance Power MOSFET Class A/B Car Amplifier with 800-Watts Dynamic Peak Power
Dual Electronics XPE4700 2/1 High Performance Power MOSFET Class A/B Car Amplifier with 800-Watts Dynamic Peak Power
Dual Electronics XPE4700 2/1 High Performance Power MOSFET Class A/B Car Amplifier with 800-Watts Dynamic Peak Power
Dual

Dual XPE4700

$48.90 0 items left

Sold out

BRAND: Dual SKU: XPE-4700 PRODUCT ID: 1854677319722 SHIPPING WEIGHT: 7.62 lb

2-6 DAYS DELIVERY

100% ORIGINAL AND QUALITY

1 YEAR MANUFACTURER WARRANTY

  • Description
  • Reviews

Features:

  • XPE Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V <1% THD+N):
    • 4 ohms: 50 watts x 4 chan.
    • 2 ohms: 75 watts x 4 chan.
    • Bridged, 4 ohms: 150 watts x 2 chan.
  • Dynamic power output: 800 watts @ 4 ohms
  • Pulse Width Modulated MOSFET power supply
  • Bi-color LED status indicators
  • Selectable bass boost (0, 6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (50-500 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 8-15/16 Inch L x 14-1/8 Inch W x 2-1/16 Inch H

Specifications:

Power Specifications - Full Range Channels:

  • RMS Power @ 4 ohms: 50 watts x 4 channels
  • RMS Power @ 2 ohms: 75 watts x 4 channels
  • RMS Power @ 1 ohm: Not Stable
  • Bridged RMS Power: 150 watts x 2 channels

Amplifier Specifications:

  • Amplifier Class: AB
  • Number of Channels: 4
  • Total Peak Power Output: 800 watts
  • Total RMS Power Output: 300 watts
  • Maximum Input Gauge Size: 8 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: 4 ohms
  • THD at Rated RMS Power: <1%
  • Speaker Level Inputs: Yes
  • Preamp Outputs: No
  • Built-in Crossover: Low-Pass (LP), High-Pass (HP), Full (AP)
  • High-Pass Crossover Frequency: 50 - 500 Hz
  • Low-Pass Crossover Frequency: 50 - 500 Hz
  • Signal-to-Noise Ratio: 70 dB
  • Bass Boost: 0dB, 6dB, 12dB
  • Bass/Gain Remote: No
  • Fan Cooled: No
  • Fuse Rating: 25A x 2
