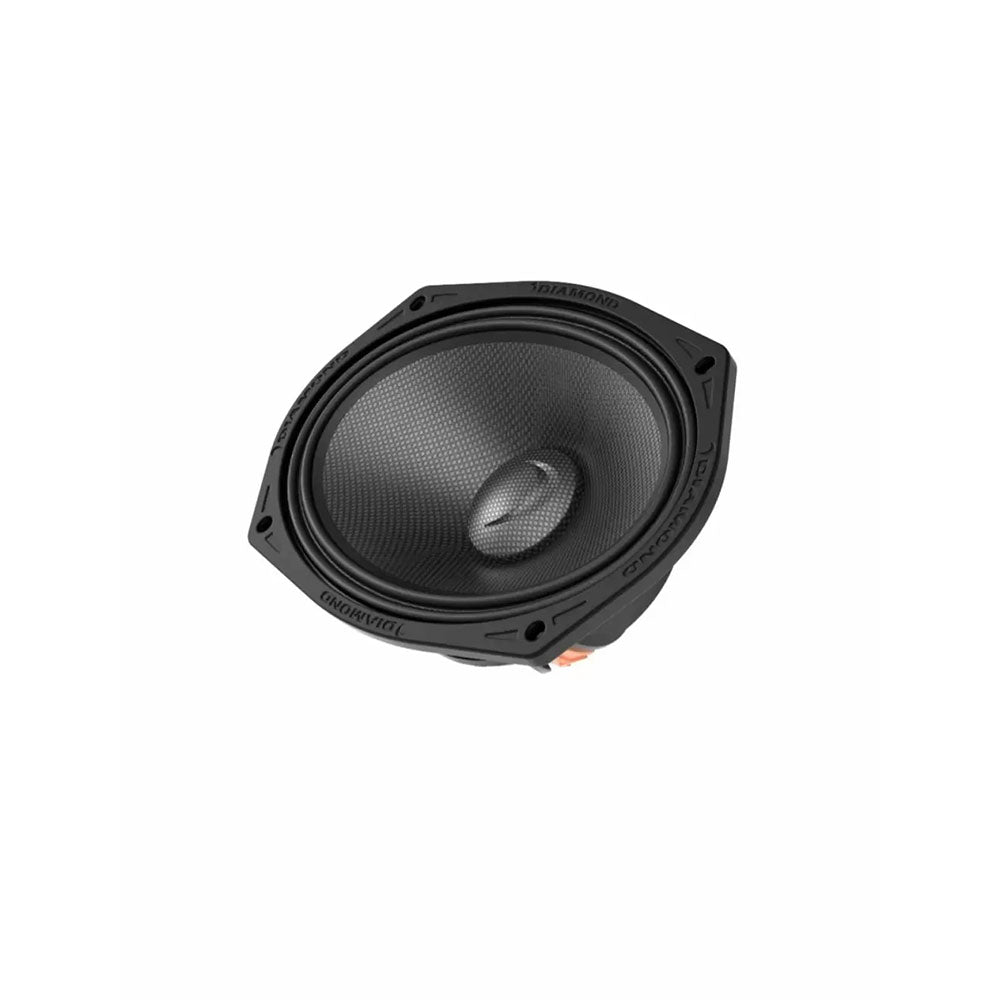

Diamond Audio MS69NEO 1400W Peak (700W RMS) 6X9" MS Neo Series Midrange Coaxial Speakers (Refurbished)

$479.99 3 items left
BRAND: Diamond Audio SKU: MS69NEO-R PRODUCT ID: 7635691339957 SHIPPING WEIGHT: 0.0 lb

2-6 DAYS DELIVERY

100% ORIGINAL AND QUALITY

1 YEAR MANUFACTURER WARRANTY

  • Description
  • Reviews

Features:

  • 350 W RMS/700W MAX Power Handling
  • Sensitivity: 96dB 1W/M
  • Frequency Response: 90Hz - 10kHz
  • Nominal Impedance: 4 ohm
  • Mounting Depth: 3.09” (78.5 mm)
  • Cut-out Diameter: 8.6” x 5.7” (218 mm x 146 mm)
  • Over-All Diameter: 9.2” x 6.4” (233.5 mm x 162 mm)
  • Over-All Height: 3.43” (87.2 mm)
  • Heavy Duty Industrial Cast Aluminium Basket
  • Waterproof Black DUPONT™ Kevlar Cone
  • Neodymium Magnet Motor Structure
  • US manufactured 2” Black High Temperature Coated Voice Coil

Specifications:

  • Speaker Size: 6“x9”
  • Nominal Diameter (inch/mm): 9.193"X6.378" (233.5mmX162mm)
  • Description: 6”x 9” Neodymium MidRange Speaker
  • Nominal Impedance (ohms): 4Ω
  • RMS Power Rating: 350W
  • Max Power Rating: 700W
  • Frequency Response: 90Hz-10kHz
  • Voice Coil Diameter (inch/mm): 2"
  • Power Handling (RMS/Peak): 350W/700W
  • SPL (db): 96 dB
  • Re (Ω)[series]: 3.2
  • Qms: 9.971
  • Qes: 0.558
  • Qts: 0.528
  • Fs-Free Air Resonance (Hz): 90
  • Vas (Liter): 10.7
  • Cms (mm/N): 0.177
  • Mms (g): 17.5
  • Sd (cm²): 0.0207
  • BL (T*M): 7.785
  • Xmax - Inch(mm): 1.2mm
  • Pwr (W) NOM/MAX: 350/700
  • Total Diameter: 9.193"X6.378'' (233.5mmX162mm)
  • Mounting Diameter (inch/mm): 8.583"X5.748'' (218mmX146mm)
  • Mounting Depth: 3.091'' (78.5mm)
  • Total Depth: 3.433'' (87.2mm)
  • Grille: NO
  • Dimension - Length x Width x Height - Inches(mm): 9.193"X6.378" (233.5mmX162mm)

THREE MONTHS LIMITED WARRANTY
