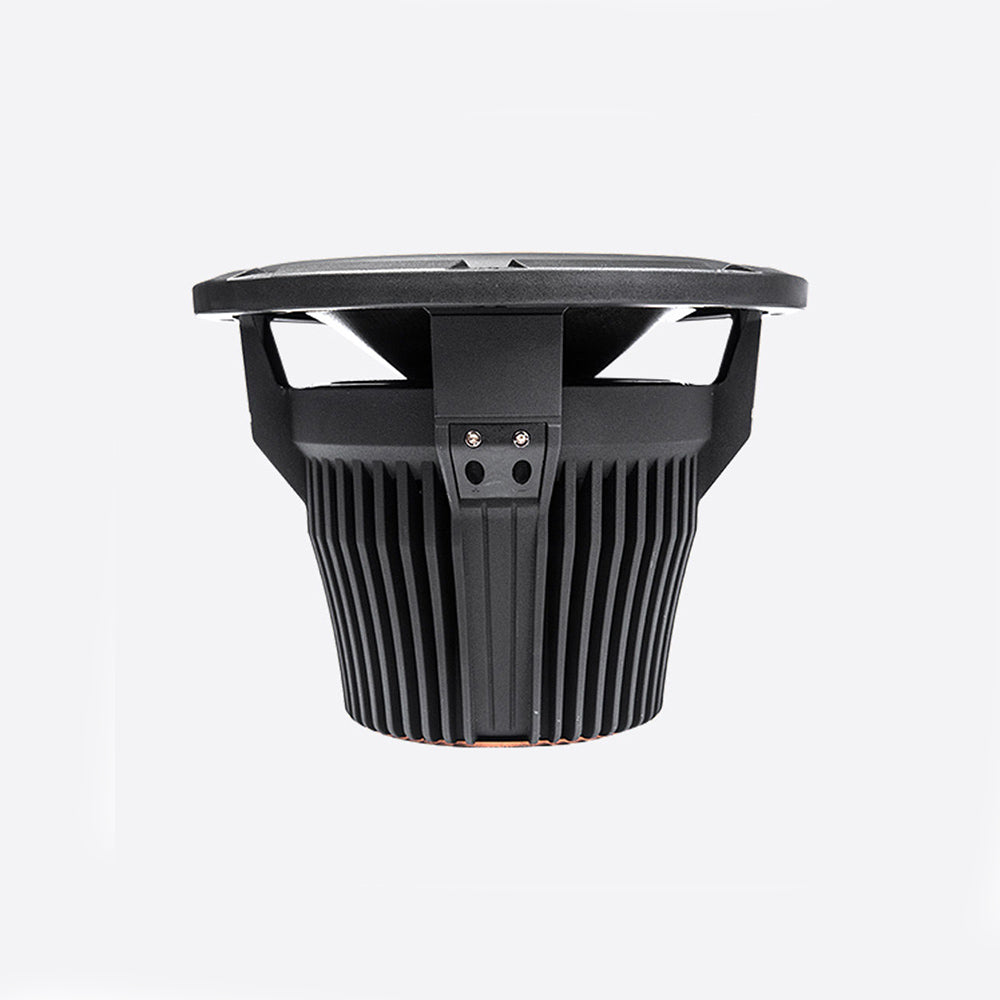

Diamond Audio HXP104 700W RMS HEX Pro Series 10" Dual 4 Ohm Subwoofer

$799.99 3 items left
BRAND: Diamond Audio SKU: HXP104 PRODUCT ID: 7476604043445 SHIPPING WEIGHT: 22.0 lb

2-6 DAYS DELIVERY

100% ORIGINAL AND QUALITY

1 YEAR MANUFACTURER WARRANTY

  • Description
  • Reviews

Features:

  • HEX Pro Series 10" Dual 4 Ohm Subwoofer
  • Power Handling:
    • RMS: 700 Watts
    • Peak: 1400 Watts
  • Die Cast Aluminum Alloy Basket with Integrated Cooling Fins
  • High Strength Honeycomb Cone
  • High Power Neodymium Encapsulated Motor Structure
  • Klippel DA Optimized Motor and Suspension Symmetry
  • Available in Dual 2 ohm and 4 ohm Configurations
  • Offered in 10”, 12”, and 15” Sizes
  • SPL @ 2.83v: 81.2dB
  • Re: 6 Ohms
  • Qms: 3
  • Qes: 0.68
  • Qts: 0.55
  • Fs: 27 Hz
  • Vas: 20 Hz
  • Xmax: 17mm

Specifications:

  • Subwoofer Size: 10"
  • Nominal Impedance (ohms): 4Ω
  • RMS Power Rating: 700W
  • Max Power Rating: 1400W
  • SPL (db): 81.2
  • Z (Ω) [series]: 8
  • Re (Ω)[series]: 6.00
  • Qms: 3.0
  • Qes: 0.68
  • Qts: 0.55
  • Fs-Free Air Resonance (Hz): 27.0
  • Vas (Liter): 20.0
  • Sd (cm²): 332
  • BL (T*M): 20.2
  • Xmax - Inch(mm): 17.0
  • Pwr (W) NOM/MAX: 700W/1400W

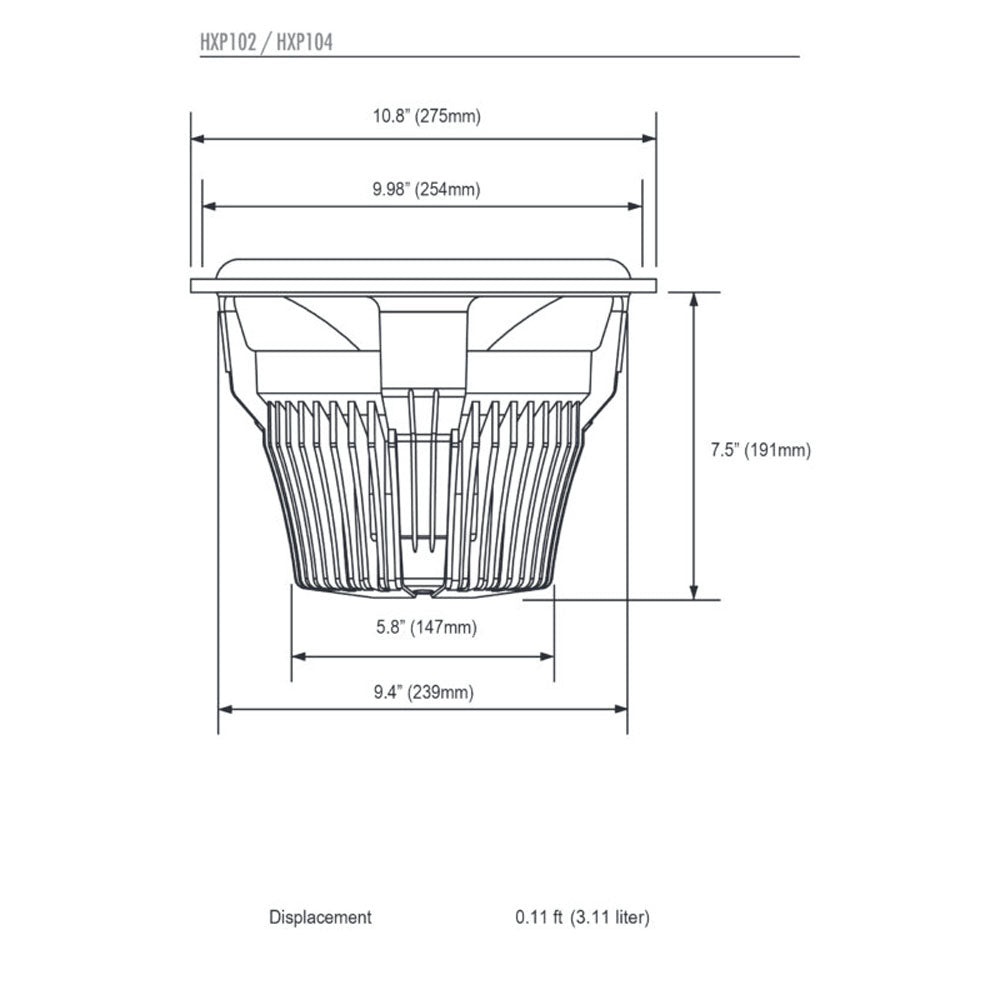

  • Total Diameter: 10.8” (275mm)
  • Mounting Diameter (inch/mm): 9.4" (239mm)
  • Screw Hole Diameter: 9.98” (254mm)
  • Mounting Depth: 7.5” (191mm)
  • Magnet Diameter (E): 5.8” (147mm)
  • Displacement (ft3/L): 0.11 ft (3.11 Liter)
  • Grille: NO
