Diamond Audio HXM1200.1D 1200W Motorsport Series Monoblock Full-Range Class-D Marine Amplifier
Diamond Audio HXM1200.1D 1200W Motorsport Series Monoblock Full-Range Class-D Marine Amplifier
Diamond Audio HXM1200.1D 1200W Motorsport Series Monoblock Full-Range Class-D Marine Amplifier
Diamond Audio HXM1200.1D 1200W Motorsport Series Monoblock Full-Range Class-D Marine Amplifier
Diamond Audio

Diamond Audio HXM1200.1D 1200W Motorsport Series Monoblock Full-Range Class-D Marine Amplifier (Refurbished)

$429.99 3 items left
BRAND: Diamond Audio SKU: HXM1200.1D-R PRODUCT ID: 7635642220725 SHIPPING WEIGHT: 7.5 lb

2-6 DAYS DELIVERY

100% ORIGINAL AND QUALITY

1 YEAR MANUFACTURER WARRANTY

  • Description
  • Reviews

Features:

  • Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 550 watts x 1 channel
    • 2 ohms: 850 watts x 1 channel
    • 1 ohm: 1200 watts x 1 channel
  • Total RMS power output: 1200 watts
  • Top mounted controls for convenient adjustment
  • Circuit board conformal coated (water resistant) for marine applications
  • LED Power/Protect Light
  • Wired remote bass level control included
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 0.2mV - 10.0 volts
  • Frequency Response: 10 - 350 Hz
  • Total Harmonic Distortion (THD): 0.07%
  • Signal to Noise Ratio: 97.4 dB
  • Variable low-pass filter: 30 - 300 Hz
  • Subsonic filter: 10 - 55 Hz
  • 4 AWG gauge power and ground wiring is recommended for installation.

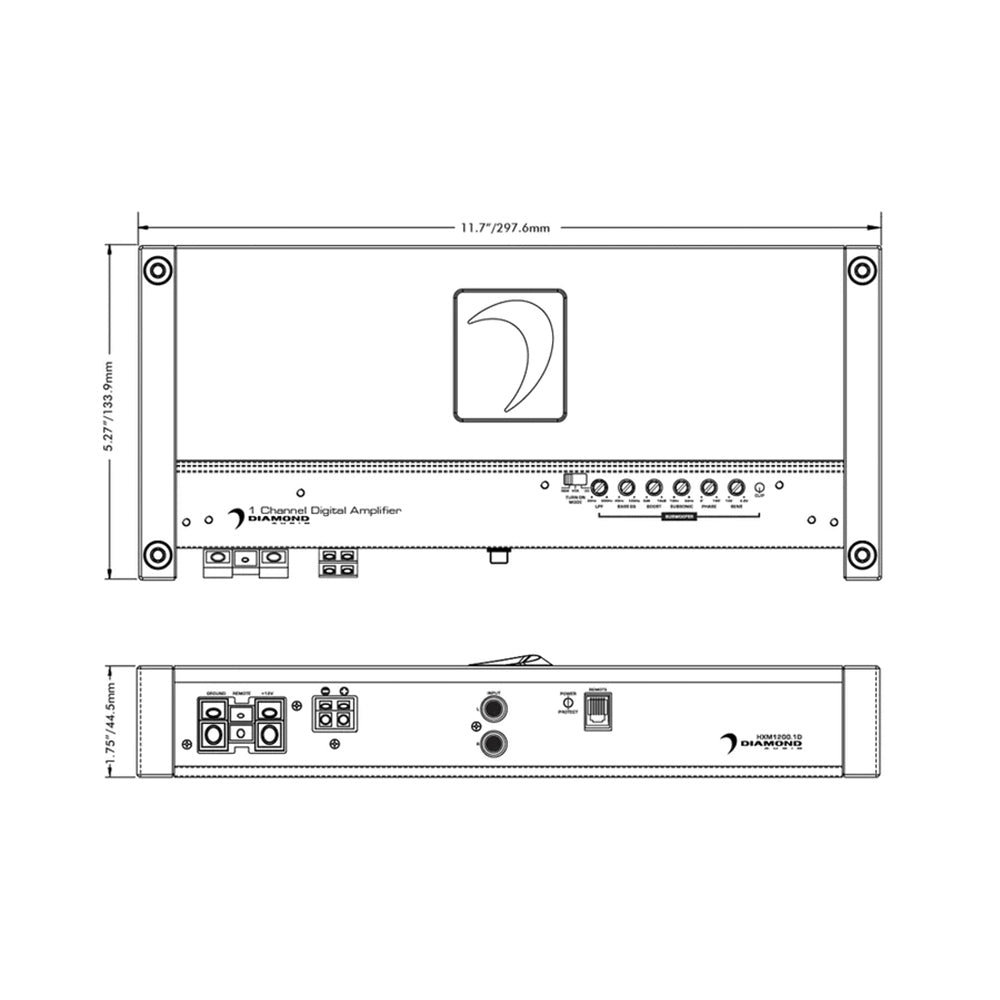

  • Dimensions: 5.27" W x 11.72" L x 1.75" H

Specifications:

  • Marine Certified: Yes
  • Amplifier Class: D
  • Number of Channels: 1 - Mono
  • Total Peak Power Output: 2400 watts
  • Total RMS Power Output: 1200 watts
  • Maximum Input Gauge Size: 4 AWG
  • Minimum Impedance Unbridged: 1 ohms
  • Minimum Impedance Bridged: 4 ohms
  • Frequency Response: 10 - 350 Hz
  • THD at Rated RMS Power: 0.07%
  • Speaker Level Inputs: No
  • Built-in Crossover: Low-Pass (LP), Subsonic
  • Low-Pass Crossover Frequency: 30 - 300 Hz
  • Subsonic Filter: 10 - 55 Hz
  • Signal-to-Noise Ratio: 97.4 dB
  • Remote bass/level controller: Yes
  • Fan Cooled: No
  • Low-Level Input Sensitivity: 0.2mV - 10.0 volts

THREE MONTHS LIMITED WARRANTY
