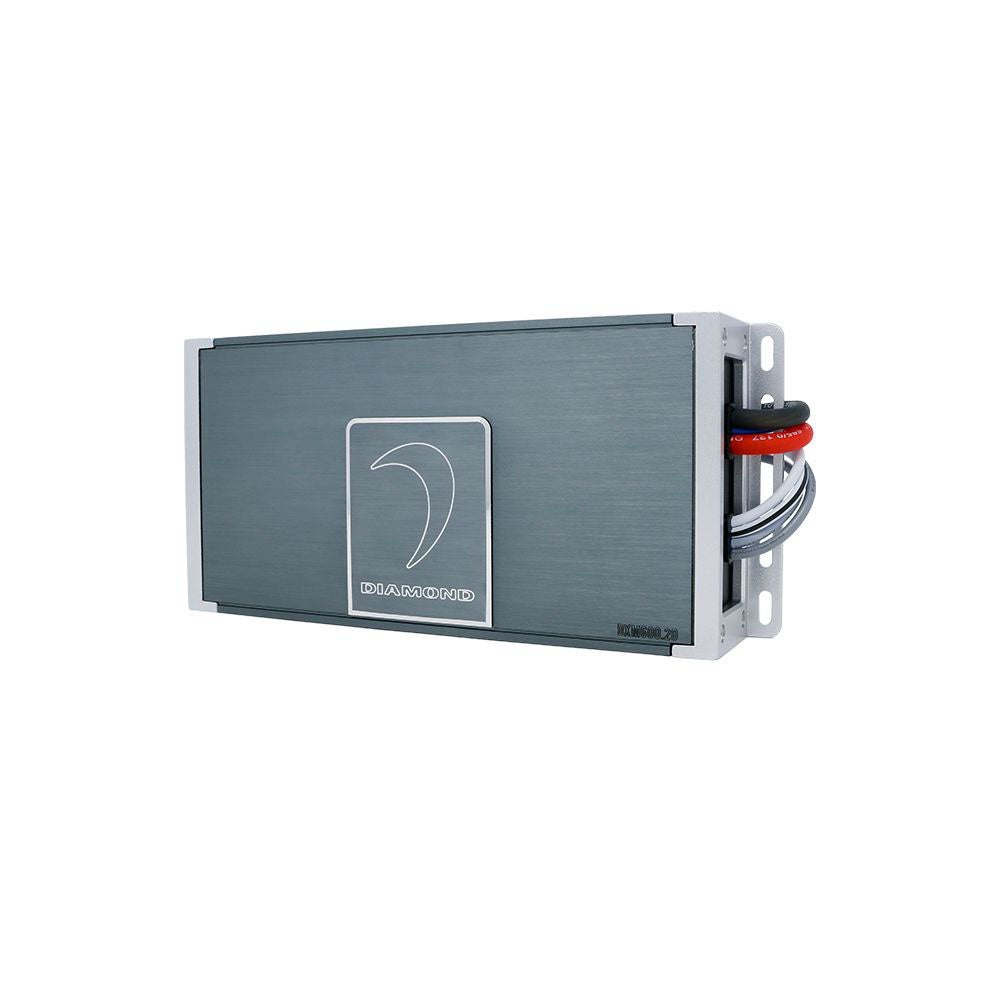

Diamond Audio DXM600.2D DXM Series 2-Channel Full Range Class-D Waterproof Marine Amplifier

Diamond Audio DXM600.2D

The Diamond Audio DXM600.2D 2-Channel Full Range Class D Waterproof Amplifier designed for extreme environments, this marine-grade amplifier delivers powerful, clean sound while offering the durability required for boats, motorcycles, ATVs, UTVs, and off-road vehicles.

Engineered with advanced full-range Class D digital technology, the DXM600.2D amplifier provides impressive output with 200W x 2 at 4 ohms, 300W x 2 at 2 ohms, and 600W x 1 bridged at 4 ohms, making it ideal for powering full-range speakers or subwoofers. The Direct FET power MOSFET output stage ensures efficient power delivery with minimal distortion, giving you dynamic, high-quality sound in any environment.

Built for harsh conditions, the Diamond Audio DXM600.2D waterproof amplifier features IPX67-rated multi-layer circuit boards, offering superior protection against water, dust, and environmental exposure. Whether installed in a marine vessel or powersports vehicle, this waterproof car audio amplifier is built to last.

The DXM600.2D 2-channel amplifier also includes balanced differential inputs, ensuring noise-free signal transmission for clear and accurate sound reproduction. With adjustable crossovers (40Hz–400Hz), selectable LPF / FULL / HPF modes, and up to 18dB bass boost, this versatile amplifier allows precise system tuning to match your audio preferences.

Installation is simple with selectable REM, VOx, and DC turn-on modes, making it compatible with both factory and aftermarket head units. Additional features such as power and protection LED indicators and built-in short circuit, thermal, and voltage protection ensure reliable performance.

Features :

• 2-Channel Full Range Class-D Waterproof Amplifier
• IPX67-Rated for Marine and Outdoor Applications
• 200W x 2 @ 4Ω / 300W x 2 @ 2Ω / 600W Bridged @ 4Ω
• Balanced Differential Inputs for Noise-Free Signal
• Adjustable Crossover and Bass Boost Control
• Short Circuit, Thermal, and Voltage Protection
• Selectable LPF / FULL / HPF Crossover
• Compact, Durable Design for Easy Installation
• Power & Protection LED Light Status Indicator

Specifications :

• DXM Series 2-Channel Full Range Class-D Marine Amplifier
• Power Rating :
  • RMS Power (@ 2Ω) : 300 Watt x 2 Channel
  • RMS Power (@ 4Ω) : 200 Watt x 2 Channel
  • RMS Power Bridged (@ 4Ω) : 600 Watt x 1 Channel
• Total Harmonic Distortion : <0.3%
• S/N Ratio (1W @ 4Ω) : >-102dB
• Gain Range : 200mV - 10.0V
• Bass Boost : 0dB - 18dB
• Crossover Range : 40Hz - 400Hz
• Frequency Range : 10Hz - 33KHz
• Current Draw (Full Power Music) : 70A (7A) AVG
• Fuse Rating : 35A
• Dimensions (L x W x H) : 9.5" x 4.3" x 1.7" (241.6 x 110 x 44.0)mm
