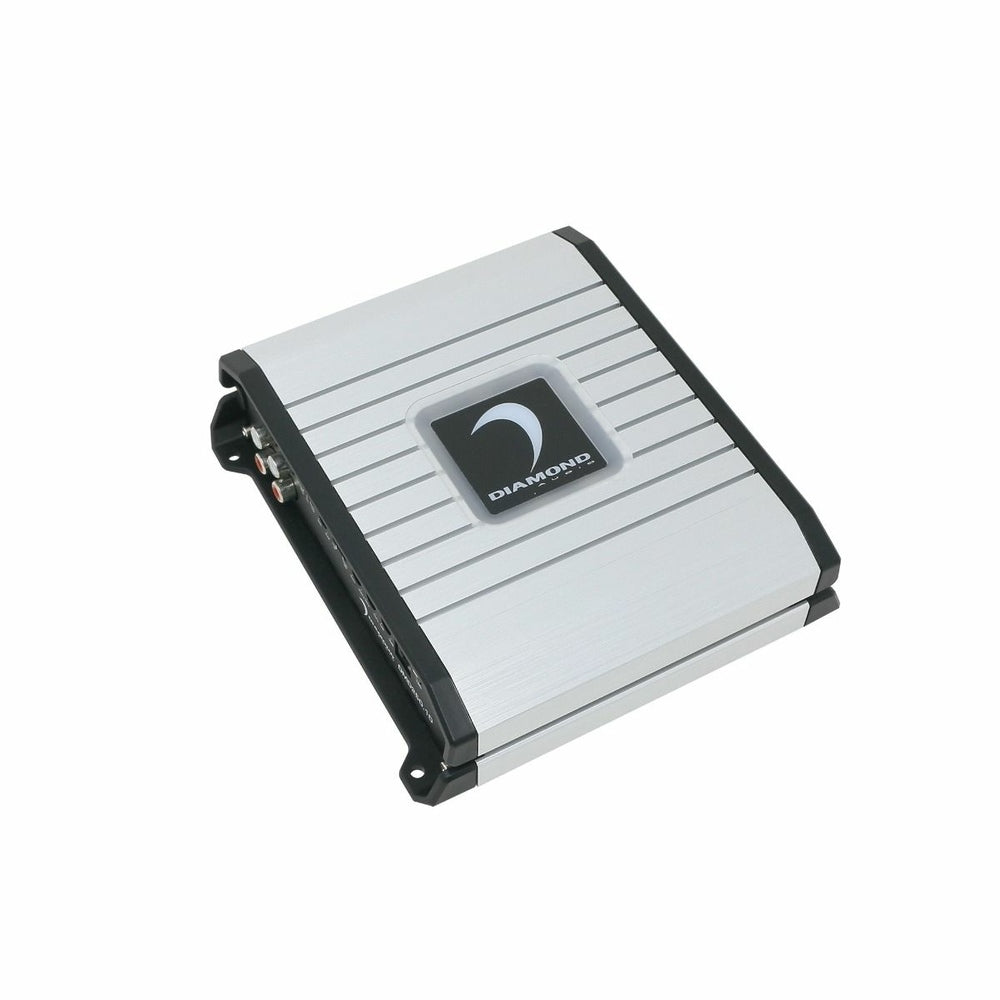

Diamond Audio DMD500.1D 500W 1 Channel Monoblock DMD Series Full Range Class D Car Amplifier

Features:

• Diamond Audio DMD Series Class D 2 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 340 watts x 1 channel
• 2 ohms: 500 watts x 1 channel
• Total RMS power output: 500 watts
• DirectFET power Mosfet Output Stage
• SMD Technology on 4 Layers FR4 PC Board
• Bass Level Remote Controller
• Soft start turn-on
• Gain Input Sensitivity Clipping Indicators
• SMD Technology on 4 Layers FR4 PC Board
• Frequency Response: 20 - 250 Hz
• Total Harmonic Distortion (THD): 0.07%
• Signal to Noise Ratio: >90 dB
• Subsonic filter: 10 - 55 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 60
• 4 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 6.85" W x 7.2" L x 1.9" H
