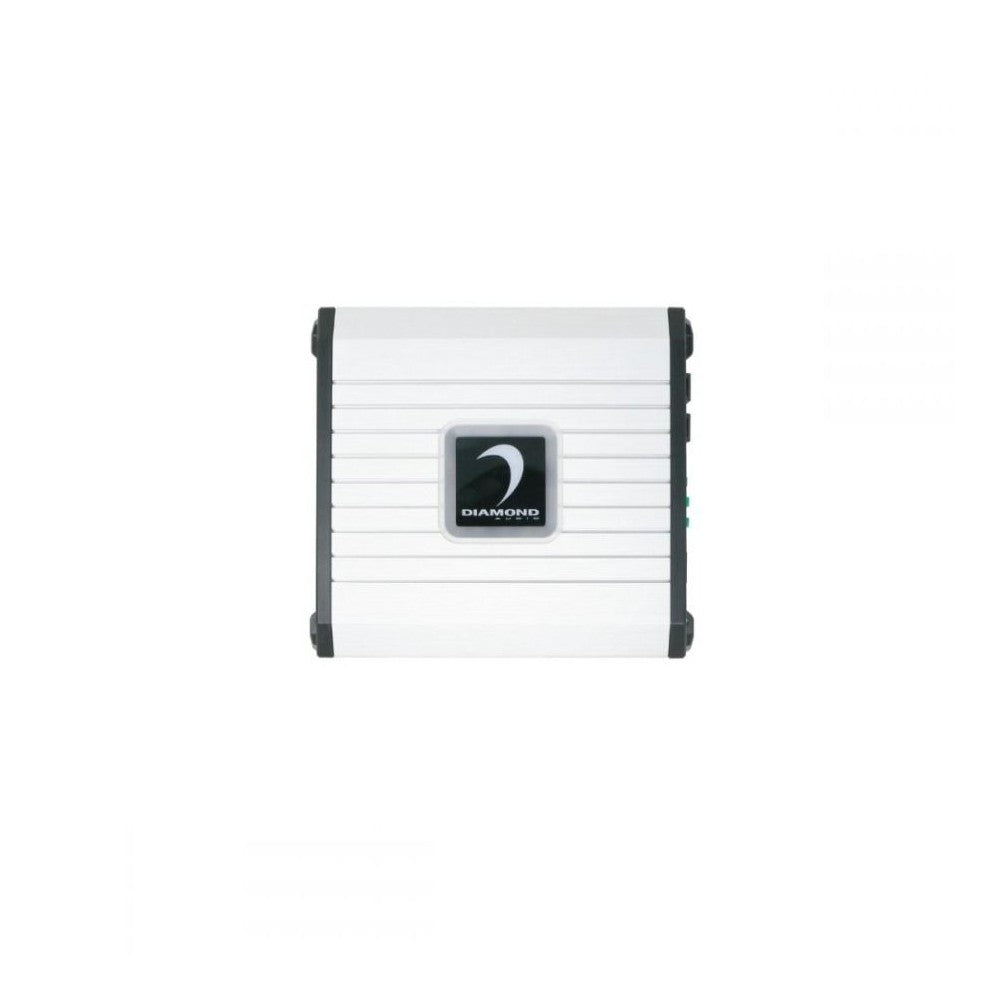

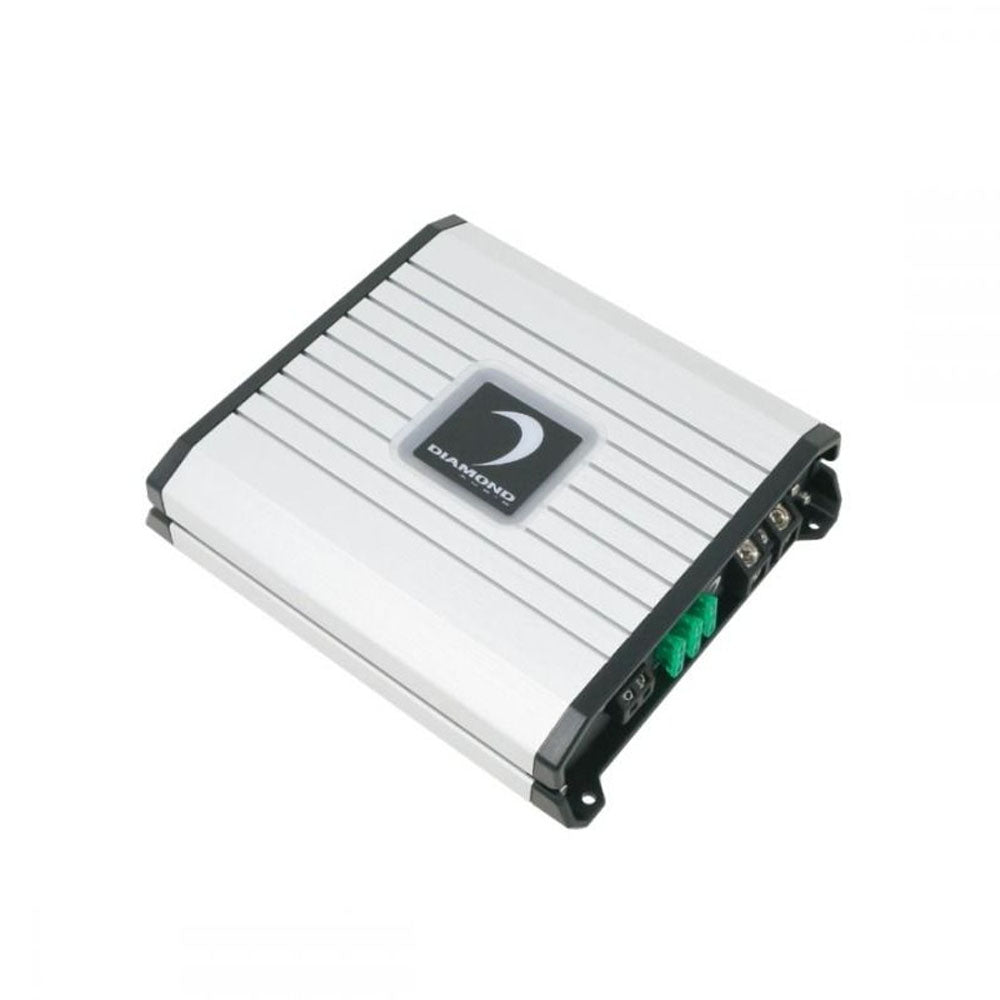

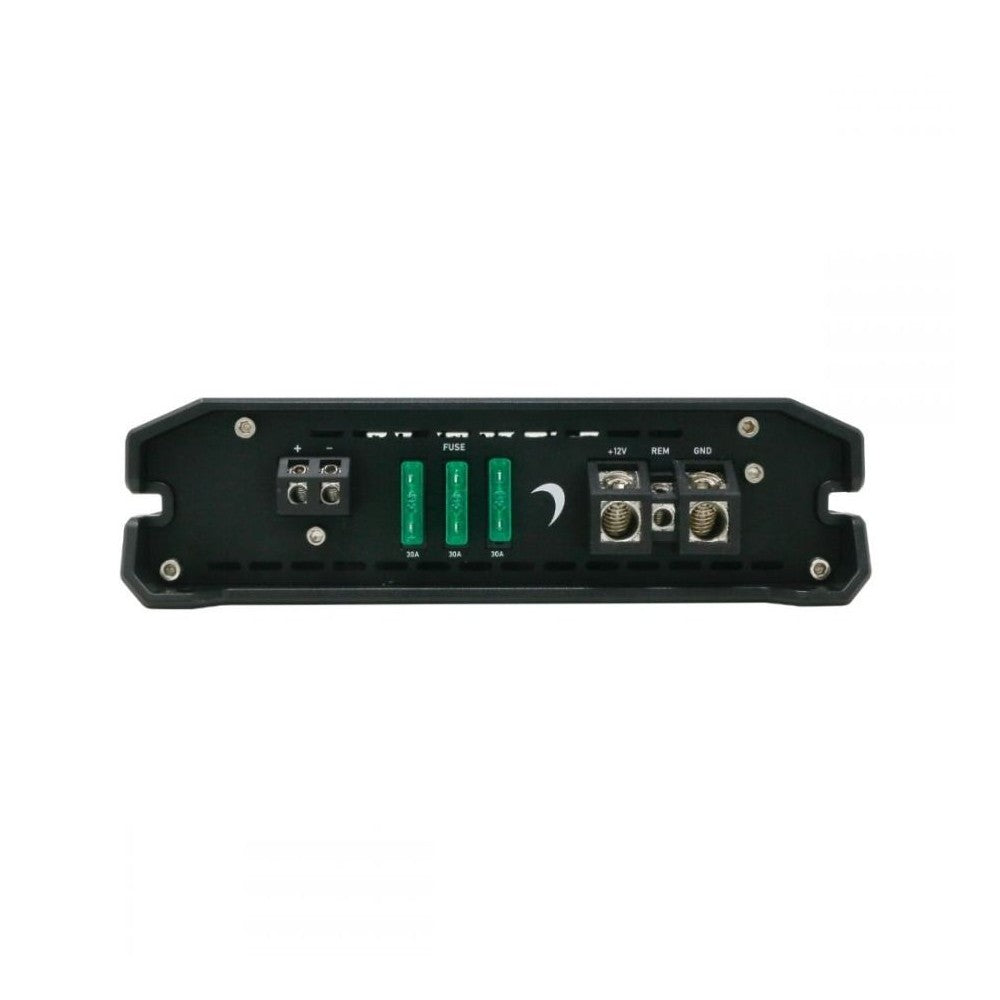

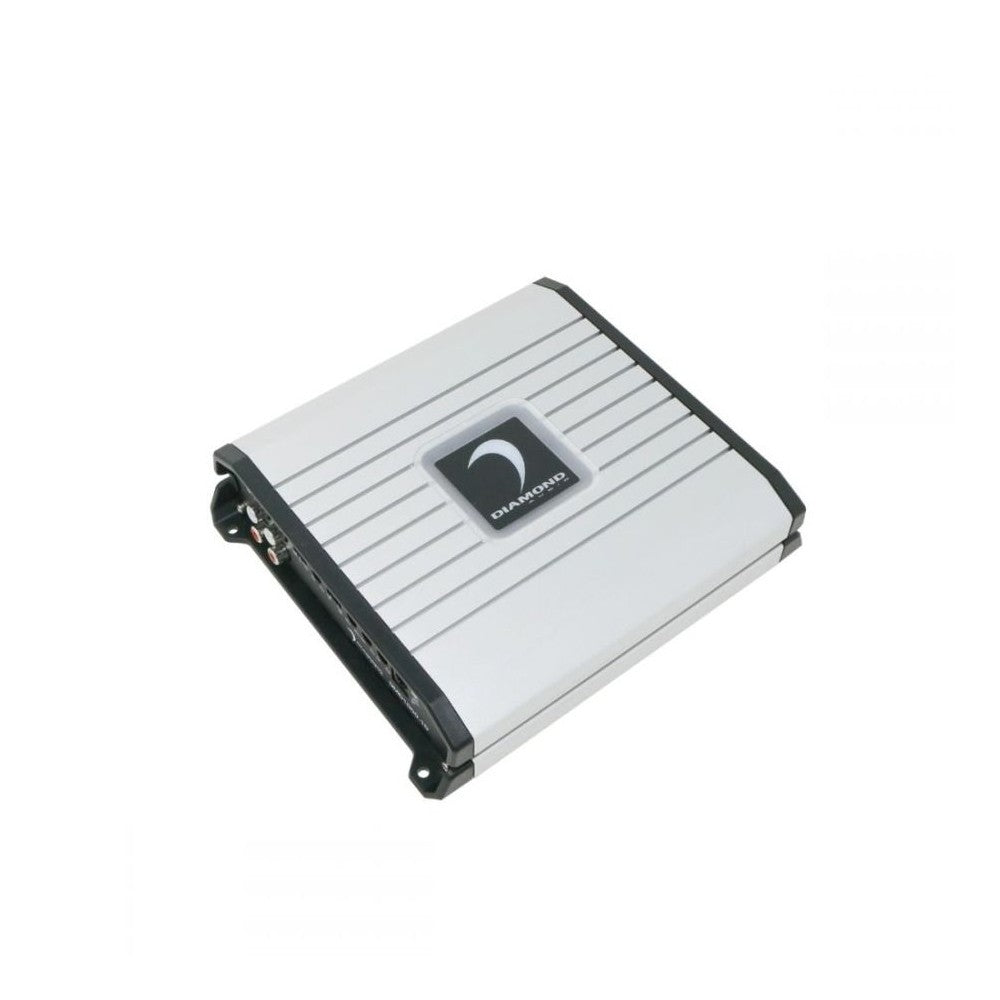

Diamond Audio DMD1100.6D 6-Channel Full Range Digital Amplifier

DMD series amplifiers from Diamond Audio provide best-in-class performance for the value, period! Providing substantial power in a very small footprint heat sink, DMD series amplifiers are the solution for any budget-friendly mobile audio sound system. DMD series comprises a total of five amplifier models: one 4-channel, three mono-channel, and one 6-channel amplifier to select from. DMD series power is generated from the latest IR chipset technology, and its manufacturing process utilizes innovative SMD technology and circuit design while built on 4-layer FR4 PC boards. It features balanced differential inputs for noise-free operation regardless of the source, subsonic filter, bass boost, and LED-lit logo indicating power/ protection status mode. Audio precision quality control verification provides high performance and reliability unmatched by competitors!

Features:

• 6 Channel Full Range Digital Amplifier
• 350W x 2CH @ 1Ω (CH5 & CH6 Only)
• 125W x 4CH + 250W x 2CH @ 2Ω / 80W x 4CH + 125W x 2CH @ 4Ω RMS Power Output
• 250W x 2CH + 500W x 1CH @ 4Ω RMS Bridged Power Output
• 700W x 1CH @ 2Ω RMS Bridged Power Output (CH5 & CH6 Only)
• Input Sensitivity: 0.2-10 Volt
• Selectable X-Over: LPF / FULL / HPF
• Crossover Filter: 50-500Hz, 12dB Per Octave Slope
• Frequency Response: 10-20KHz
• Signal to Noise Ratio: > 90dB
• Overall Operation Efficiency: >86%
• Selectable REM / VOX / DC Turn-On Modes
• Selectable 2CH / 6CH Input Modes
• Dimensions: 9.76" x 6.85" x 1.9" / 248.1 x 174 x 48.4 mm
