Cerwin Vega XED8005D XED Series 5-Channel Full Range Class-D Car Amplifier

Cerwin Vega XED8005D

The Cerwin-Vega XED8005D XED Series 5-Channel Class-D Amplifier, a powerful all-in-one amplifier designed to deliver dynamic sound performance, efficient power output, and exceptional reliability. Built using Cerwin-Vega’s Xtreme Energy Design, this amplifier provides the perfect balance of power, clarity, and versatility for modern car audio systems.

The XED8005D 5-channel amplifier is engineered to power an entire audio system from a single compact unit. With dedicated channels for both speakers and a subwoofer, this amplifier allows you to drive your front and rear speakers while simultaneously powering a subwoofer for deep, impactful bass. This makes it an ideal solution for upgrading factory audio systems or building a powerful aftermarket sound setup.

Utilizing advanced Class-D amplifier technology, the XED8005D delivers high-efficiency performance that produces strong output while generating less heat compared to traditional amplifier designs. This efficient operation ensures consistent sound quality even during extended listening sessions, making it perfect for daily drivers and high-performance car audio builds.

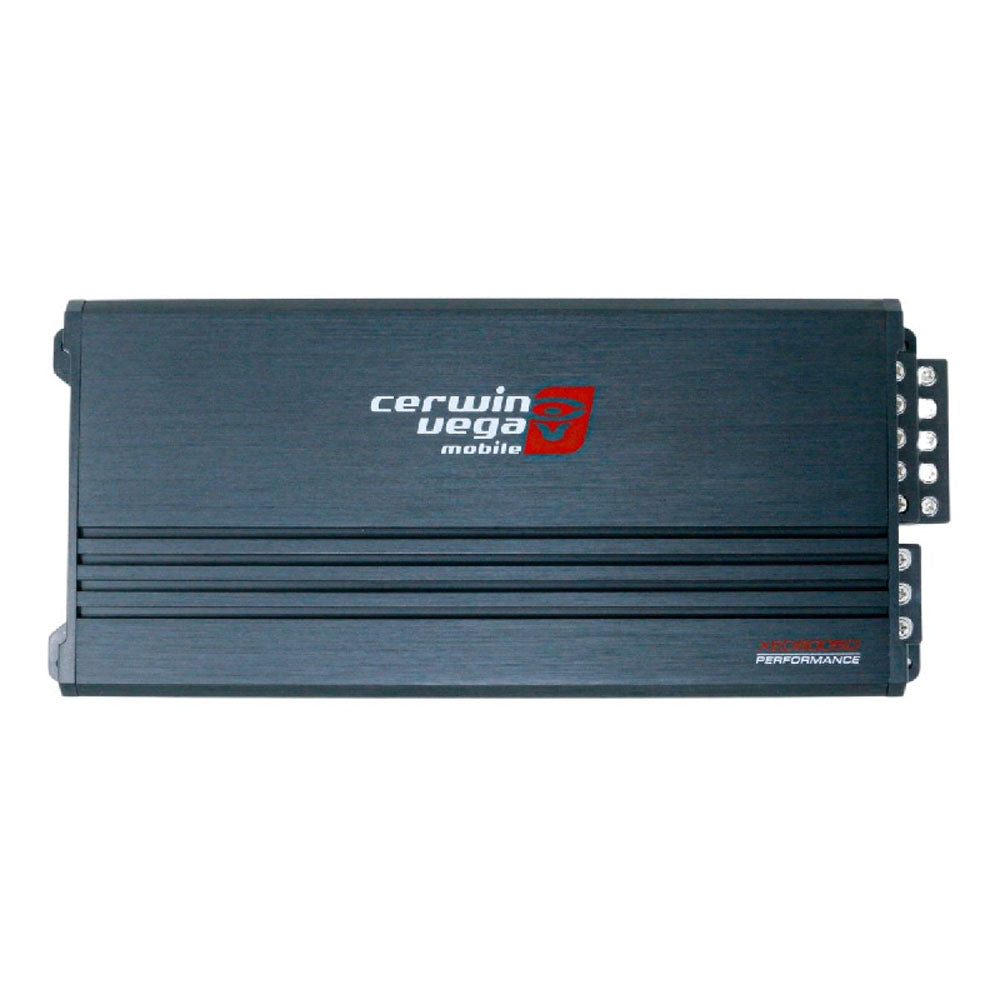

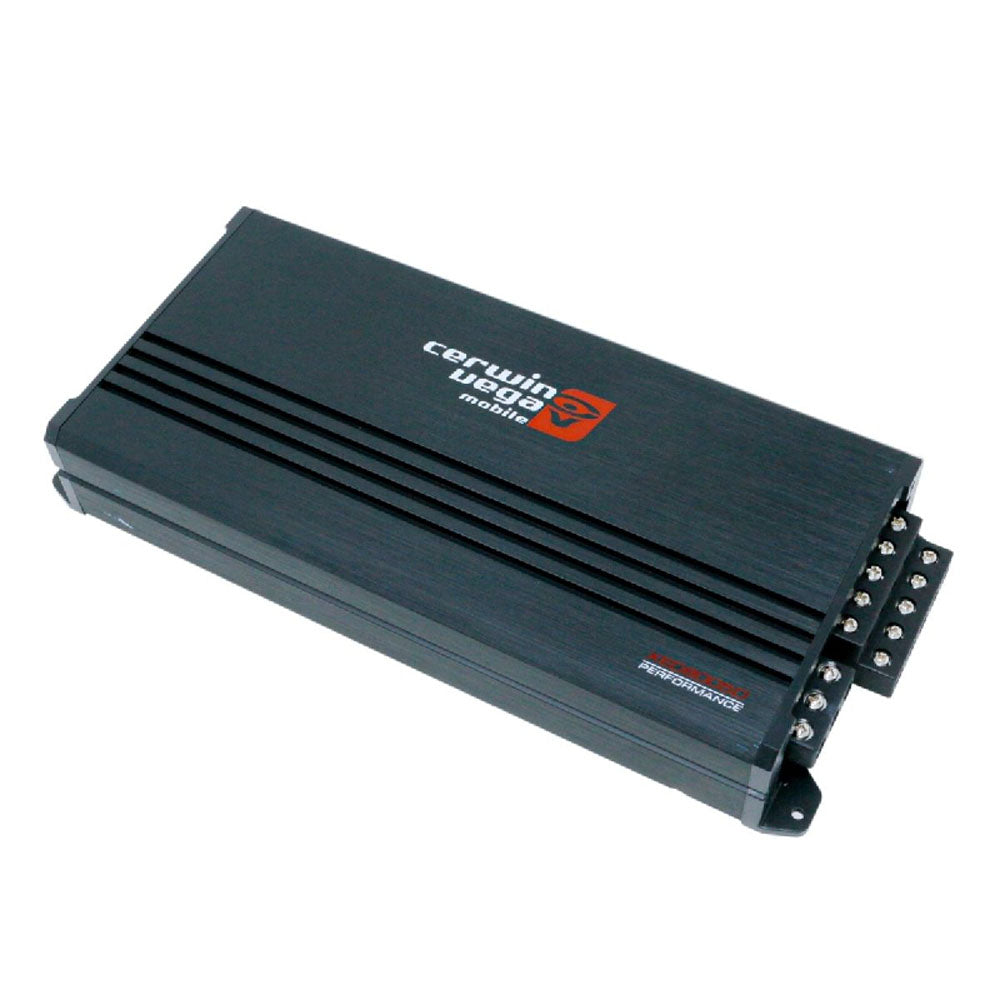

The lightweight aluminum chassis not only gives the amplifier a sleek, modern appearance but also functions as an effective heat sink to help dissipate heat and maintain stable operating temperatures. Combined with premium internal components and precision engineering, the XED8005D offers long-term reliability and dependable performance.

Designed for enthusiasts who want powerful sound without sacrificing space, the Cerwin-Vega XED Series amplifier provides clean, distortion-free audio across the entire frequency range. From tight bass response to clear mids and crisp highs, the amplifier delivers the energy and clarity needed to bring your music to life.

Features

• 5-Channel Full Range Class-D Car Audio Amplifier
• All-in-One Solution for Speakers and Subwoofer Systems
• High-Efficiency Class-D Technology for Powerful Output
• Lightweight Aluminum Chassis for Improved Heat Dissipation
• Clean, Distortion-free Sound Reproduction
• Ideal for Full-System Car Audio Upgrades

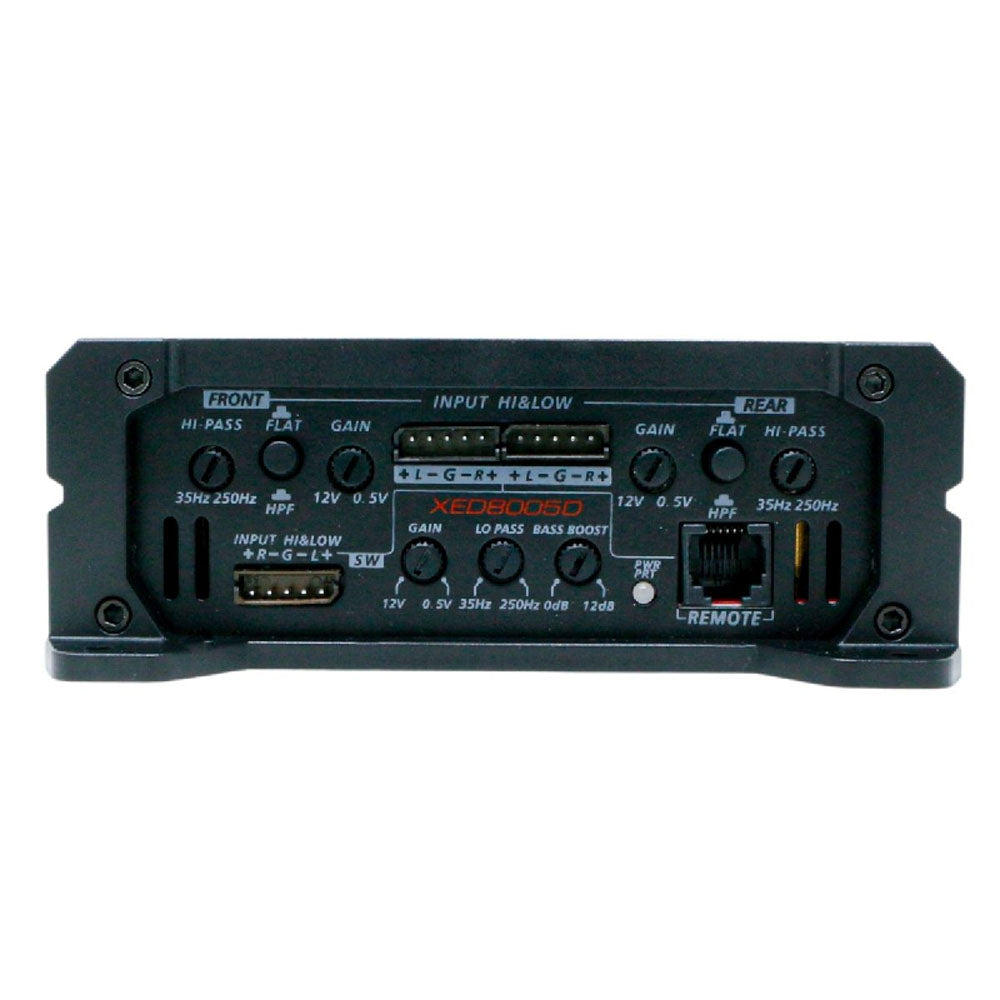

• Selectable X-Over Front & Rear: Flat/High Pass
• Bass Boost : 0dB-12dB
• LED Power/Protect Light Indicator

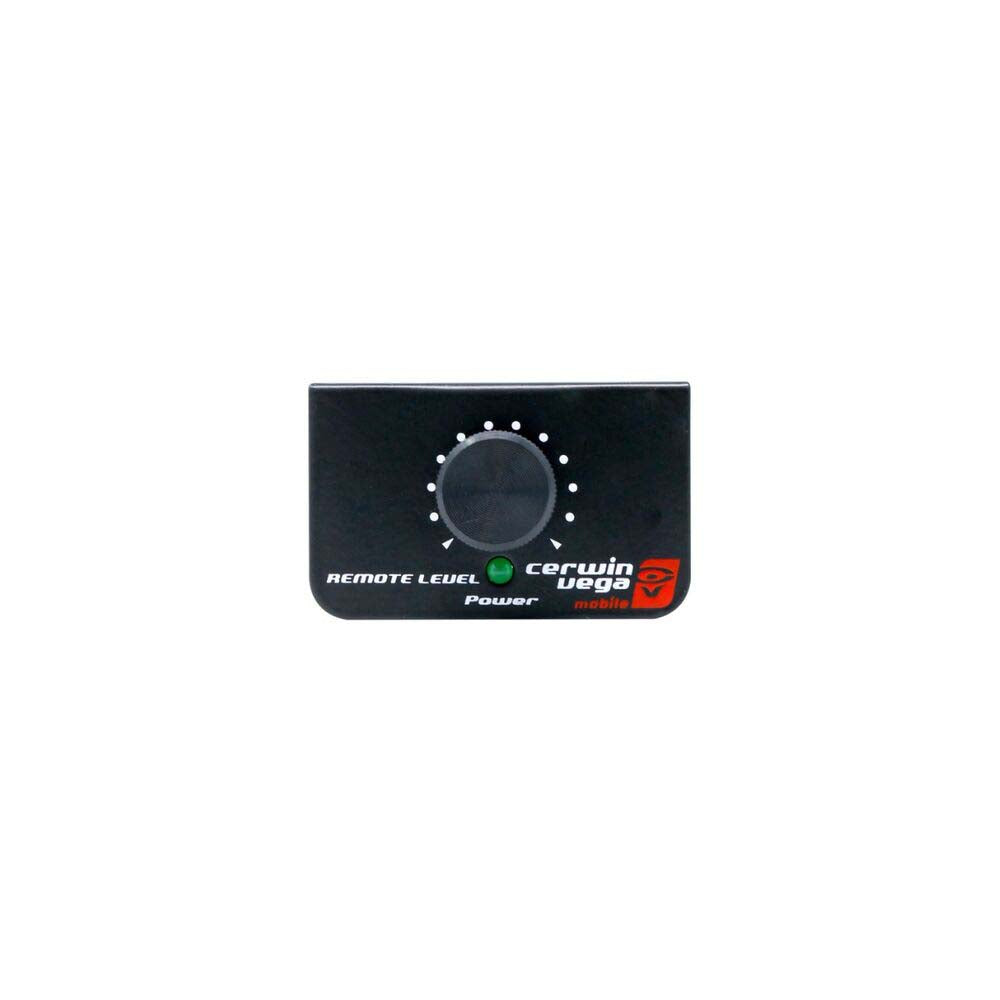

• Bass Control Included

Specifications

5 Channel XED Series Full Range Class-D Car Amplifier

Power Rating

• Frequency Response (Hz) : 35Hz - 350Hz
• MAX Power : 1000 Watts MAX
• RMS Power (2Ω) : 90 Watts x 4 Channel + 300 Watts x 1 Channel
• RMS Power (4Ω) : 65 Watts x 4 Channel + 200 Watts x 1 Channel

Power Supply

• Power Supply : Full PWM
• Power Supply Threshold : 10.0VDC - 16.0VDC
• Idle Current : 0.7A

Distortion

• THD (100Hz @ 4Ω) : <0.1%
• S/N Ratio (A Weighted @1W) : -85dBA
• S/N Ratio (A Weighted @FP) : -101.1dBA

Input Sensitivity

• Low Input Level : 500mV - 12V
• High Input Level : N/A

Input Impedance

• Low Input Level : 20KΩ
• High Input Level : 100KΩ

Output Stage

• Output Impedance : 2Ω
• Damping Factor (50Hz @ 4Ω) : >70
• Bandwidth (-3dB) : 10Hz - 30KHz + 10Hz ~ 250Hz

Crossover (-12dB/Oct)

• Variable High Pass : 35Hz - 250Hz
• Variable Low-Pass : 35Hz - 250Hz
• Variable Sub-Sonic : N/A

Fuse Ratings

• ATC: 25A x 2

Dimensions

• L x W x H : 10.3" x 4.7" x 1.8" (260 x 120 x 46.5)mm
