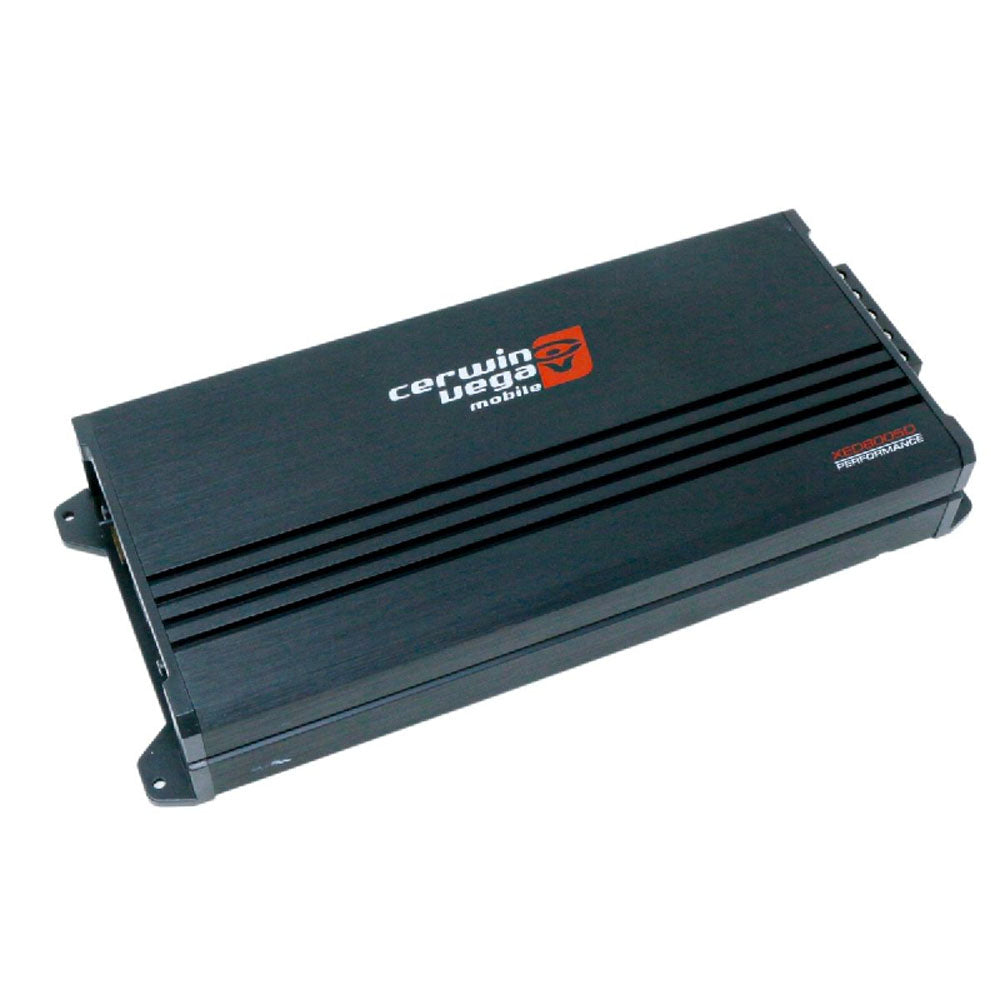

Cerwin Vega XED6004D 4-Channel XED Series Full Range Class-D Car Amplifier

Cerwin Vega XED6004D

The Cerwin-Vega XED6004D XED Series 4-Channel Full Range Class-D Amplifier, a high-performance amplifier engineered to deliver powerful sound, exceptional efficiency, and long-lasting reliability. Built with Cerwin-Vega’s Xtreme Energy Design, this amplifier provides the perfect combination of performance, durability, and compact efficiency for modern car audio systems.

The XED6004D 4-channel amplifier is designed to power multiple speakers while maintaining clean, distortion-free sound across the entire frequency range. Whether you're driving component speakers, coaxial speakers, or bridging channels for increased power, this amplifier delivers the dynamic output and clarity needed to enhance your in-car listening experience.

Using advanced Class-D amplifier technology, the XED6004D maximizes power output while minimizing heat generation and electrical demand. This high-efficiency design ensures that the amplifier operates cooler and more efficiently than traditional amplifier designs, allowing for reliable performance during extended listening sessions or high-output audio setups.

The amplifier’s lightweight aluminum chassis serves as an effective heat sink, helping to dissipate heat and maintain stable operation even under demanding conditions. This rugged yet compact design makes the XED6004D ideal for installations where space is limited while still delivering the performance expected from Cerwin-Vega amplifiers.

Engineered with premium internal components and precision construction, the Cerwin-Vega XED Series amplifiers are built to withstand the demands of high-performance car audio systems. From powerful midrange output to crisp highs and tight bass response, the XED6004D provides the balanced sound reproduction needed for an immersive listening experience.

Features:

• 4-Channel Full range Class-D Car Audio Amplifier
• High-Efficiency Class-D Technology for Powerful Output
• Lightweight Aluminum Chassis for Superior Heat Dissipation
• Clean, Distortion-Free Sound Performance
• Flexible System Configuration for Speakers or Bridged Setups
• Ideal for Aftermarket Car Audio Upgrades
• LED Power/Protect Light Indicator
• Selectable X-Over: High Pass / Flat / Low Pass

Specifications

XED Series 4-Channel Full Range Class-D Amplifier

Power Rating

• Max Power : 500 Watts
• RMS Power (@ 2Ω) : 120 Watt x 4 Channel
• RMS Power (@ 4Ω) : 80 Watt x 4 Channel
• Frequency Response (Hz) : 35Hz - 350Hz

Power Supply

• Power Supply : Full PWM
• Power Supply Threshold : 10.0VDC - 16.0VDC
• Idle Current : 0.7A

Distortion

• THD 4 (1KHz @ 4Ω) : 0.1%
• S/N Ratio (A Weighted @ 1W) : -85dBA
• S/N Ratio (A Weighted @ FP) : -101.1dBA

Input Sensitivity

• Low Input Level : 250mV - 6.0V
• High Input Level : 1.3V - 20.0V

Input Impedance

• Low Input Level : 10KΩ
• High Input Level : 100Ω

Output Stage

• Output Impedance : 2Ω
• Damping Factor (50Hz @ 4Ω) : >70
• Bandwidth (-3dB) : 10Hz - 30KHz

Crossover (-12dB/Oct)

• Variable High-Pass : 35Hz - 250Hz
• Variable Low-Pass : 35Hz - 250Hz
• Variable Sub-Sonic : N/A

Fuse Ratings

• ATC : 25A x 2

Dimensions

• L x W x H : 7.1" x 4.7" x 1.8" (180 x 120 x 46.5)mm
