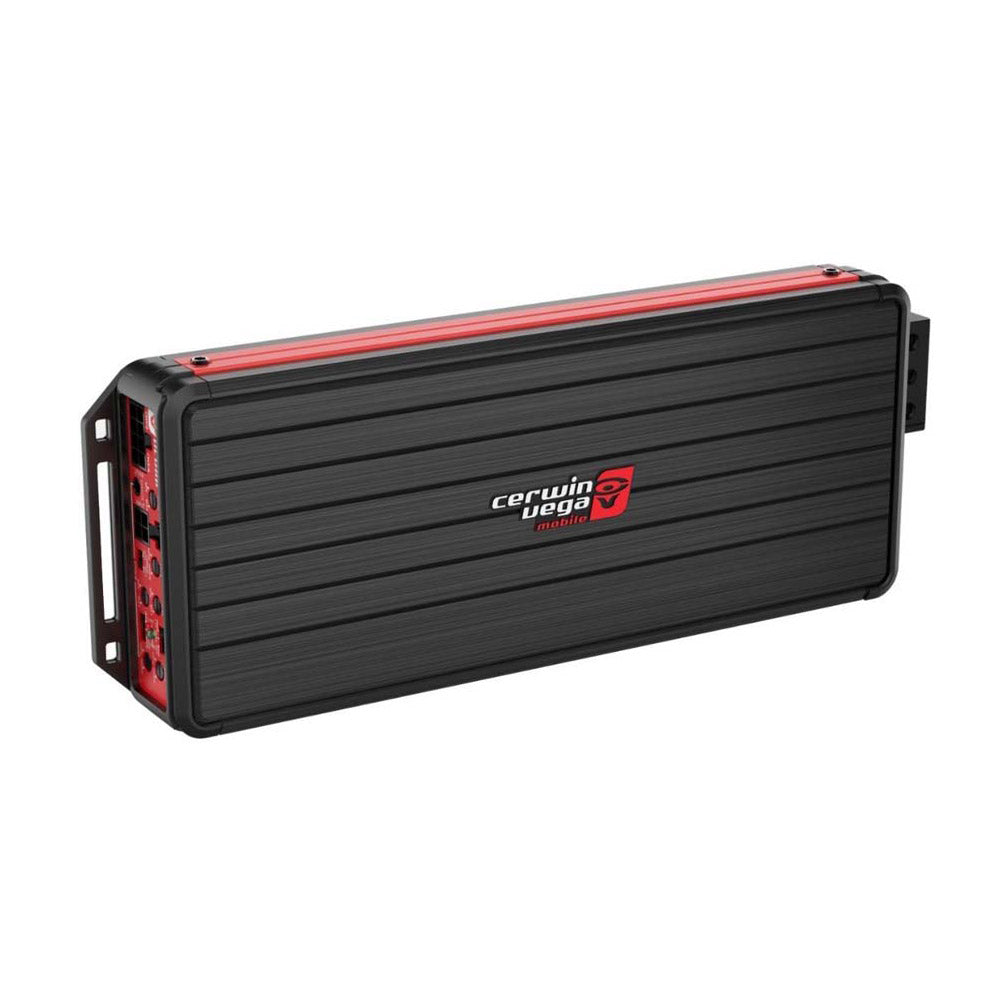

Cerwin Vega VCU85 Vega Series 5-Channel Full Range Class-D Car Amplifier

Cerwin Vega VCU85

The Cerwin-Vega VCU85 VEGA Series 5-Channel Full Range Class-D Amplifier, a powerful and versatile amplifier designed to deliver exceptional sound clarity, efficient power delivery, and flexible system configuration. Built as part of the legendary Cerwin-Vega VEGA Series, the VCU85 provides the perfect solution for powering a complete audio system with four speakers and a subwoofer from a single compact amplifier.

The VCU85 5-channel amplifier utilizes an advanced high-efficiency full-range Class-D digital topology, allowing it to deliver strong output while minimizing energy loss and heat buildup. This modern amplifier design ensures consistent performance while maximizing the available power in your vehicle’s electrical system.

At the core of the amplifier is an enhanced Power IR digital chipset, engineered for precision signal processing and stable power delivery. This technology allows the amplifier to maintain clean, distortion-free sound even at higher volume levels, ensuring your music remains detailed and dynamic.

Durability is a key element of the Cerwin-Vega VCU85 amplifier design. It features a conformal-coated 4-layer PCB (printed circuit board) that protects internal electronics from moisture, dust, and environmental wear. This protective design ensures long-term reliability and dependable performance in demanding automotive environments.

Installation flexibility is another major advantage of the VCU85 amplifier. It supports both high-level and low-level inputs up to 12 volts, allowing easy integration with factory or aftermarket head units. The Remote Turn-On Configurator provides multiple activation options including REM, DC offset, and VOX signal sensing, simplifying installation in virtually any vehicle audio system.

Features

• 5-Channel Full Range Class-D Amplifier for Speakers and Subwoofer
• High-efficiency Digital Topology for Powerful Performance
• Enhanced Power IR Digital Chipset for Precision and Stability
• Conformal-Coated 4-Layer PCB for Durability and Reliability
• High and Low-level Inputs Up to 12V for Versatile System Integration
• Multiple Turn-on Options : REM, DC offset, and VOX
• Full Range Class D IR Chipset
• DirectFET Power MOSFET Output Stage
• SMD Technology on 4-Layer PCB Board
• Water Resistant Conformal PCB Board Coating
• 4 AWG Gauge Amplifier Wiring Kit is Recommended for Installation

Specifications

VEGA Series Full Range Class-D Stable 5-Channel Amplifier

Power Rating

• Frequency Response (Hz) : 40Hz - 400Hz
• Max Power : 1900 Watt
• RMS Power (2Ω) : 150 Watt x 4 Channel + 350 Watt x 1 Channel
• RMS Power (4Ω) : 80 Watt x 4 Channel + 200 Watt x 1 Channel
• RMS Power (4Ω) Bridged : 300 Watt x 2 Channel + 200 Watt x 1 Channel

Power Supply

• Power Supply : Full PWM
• Power Supply Threshold : 10.0VDC - 17.0VDC
• Idle Current : 0.7A

Distortion

• THD : 0.5%
• S/N Ratio (A Weighted @1W) : -85dBA
• S/N Ratio (A Weighted @FP) : -101.1dBA

Input Sensitivity

• Low Input Level : 200mV - 10.0V
• High Input Level : 200mV - 10.0V

Input Impedance

• Low Input Level : 20KΩ
• High Input Level : 20KΩ

Output Stage

• Output Impedance : 0.018Ω
• Damping Factor (50Hz @ 4Ω) : >70
• Bandwidth (-3dB) : 10 - 35Hz

Crossover (-12dB/Oct)

• Variable High Pass : Flat or Fixed 70Hz
• Variable Low-Pass : 40Hz - 400Hz
• Variable Sub-Sonic : N/A

Fuse Ratings

• ATC : 60A

Dimensions

• L x W x H : 10.45" x 4.02" x 1.4" (265.6 x 102.1 x 36)mm
