Cerwin Vega V600.4
Cerwin Vega

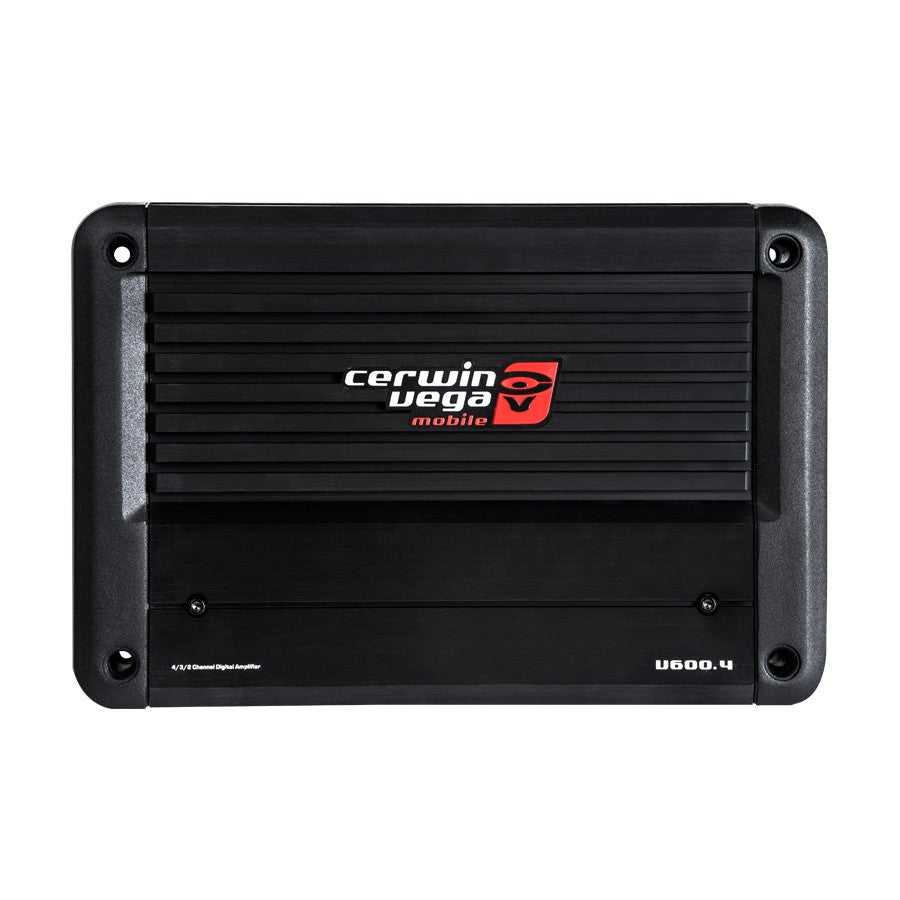

Cerwin Vega V600.4 600W 4-Channel Class D Car Amplifier

$349.99 0 items left

Sold out

BRAND: Cerwin Vega SKU: V6004 PRODUCT ID: 1345373569066 SHIPPING WEIGHT: 6.0 lb

2-6 DAYS DELIVERY

100% ORIGINAL AND QUALITY

1 YEAR MANUFACTURER WARRANTY

  • Description
  • Reviews

Features:

  • Vega Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 100 watts x 4 chan.
    • 2 ohms: 150 watts x 4 chan.
    • Bridged, 4 ohms: 300 watts x 2 chan.
  • Latest high efficiency full range digital topology
  • Surface mount component technology with 4-layer PCB
  • Convenient output clip indication for easy system set up
  • Tiffany style low level RCA inputs
  • Removable top cover plate
  • 2 or 4 Channel Operation
  • Power Supply Threshold: 10.0 VDC - 17.0 VDC
  • Total Harmonic Distortion: 0.07%
  • Signal to Noise Ratio (@1w): 77.4 dBa
  • Input Sensitivity: 0.2 mV - 5.0 V
  • Damping Factory: >250
  • Selectable Crossover: HPF/Flat/LPF
  • Frequency Response: 10 - 35,000 Hz
  • Variable high-pass filter: 40 - 400 Hz
  • Variable low-pass filter: 40 - 400 Hz
  • Selectable Bass Boost: 0dB/9dB/18dB
  • Fuse Rating: 30A x 2
  • Dimensions: 7.25 Inch W x 10.47 Inch L x 1.93 Inch H

Specifications:

Power Specifications - Full Range Channels:

  • RMS Power @ 4 ohms: 100 watts x 4 channels
  • RMS Power @ 2 ohms: 150 watts x 4 channels
  • Bridged RMS Power: 300 watts x 2 channels

Amplifier Specifications:

  • Amplifier Series: Vega (Cerwin Vega)
  • Amplifier Class: D
  • Number of Channels: 4
  • Total RMS Power Output: 600 watts
  • Maximum Input Gauge Size: 8 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: 4 ohms
  • THD at Rated RMS Power: 0.07%
  • Speaker Level Inputs: No
  • Preamp Outputs: No
  • Built-in Crossover: Low-pass (LP), High-pass (HP), Full (AP)
  • High-Pass Crossover Frequency: 40 - 400 Hz
  • Low-Pass Crossover Frequency: 40 - 400 Hz
  • Signal-to-Noise Ratio: 77.4 dB
  • Bass Boost: Selectable 0/+9dB/+18dB
  • Bass/Gain Remote: No
  • Fuse Rating: 30A x 2
  • Strappable: No
  • CEA-2006 Compliant: No
