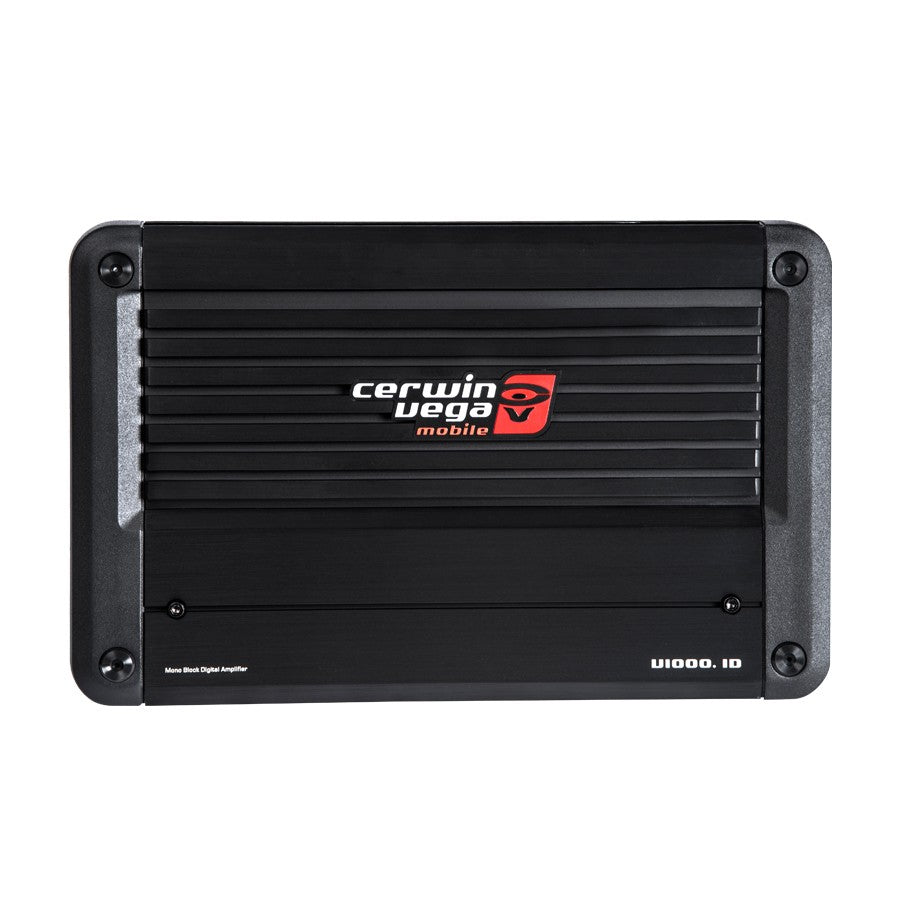

Cerwin Vega V1000.1D 1000W Monoblock Class D Car Amplifier

Features:

• Fully Variable Crossovers, Phase and Boost For Precise System Adjustments
• Proprietary Vega Bass Boost up to 18 dB
• Quick Disconnect Power/Speaker Terminals
• Balanced Differential Input with High CMRR
• 1000W X 1 @ 1Ω, 750W X 1 @ 2Ω, 450W X 1 @ 4Ω RMS Power
• Crossover: 30 Hz – 300 Hz
• Frequency Response: 10 Hz – 250 Hz

Specifications:

• RMS Power (2 Ω): 750 Watt X 1 RMS
• RMS Power (4 Ω): 400 Watt X 1 RMS
• Topology: Class D
• Power Supply: Full PWM
• Power Supply Threshold: 10.0VDC - 17.0VDC
• Idle Current: (0.7A)
• THD (1 KHz @4Ω): 0.079%
• S/N Ratio (A weighted @1W): -88.5 dBA
• S/N Ratio (A weighted @FP): -108.2 dBA
• Low Input Level: 200mV - 5.0V
• High Input Level: N/A
• Low Input Level: 22 KΩ
• Output Impedance: 0.09 Ω
• Damping Factor(50Hz @ 4Ω): >70
• Bandwidth (-3dB): 10Hz - 35KHz
• Variable High-Pass: N/A
• Variable Low-Pass: 30Hz - 300Hz
• Variable Sub-Sonic: 10Hz - 55Hz
• ATC: 3 X 30A
• Length x Width x Height (inches): 11.65 X 7.25 x 1.93
• Length x Width x Height (mm): 296 x 164.15 x 49
