Cerwin Vega S9500.2D Stroker Series 2-Channel Full Range Class-D Car Amplifier

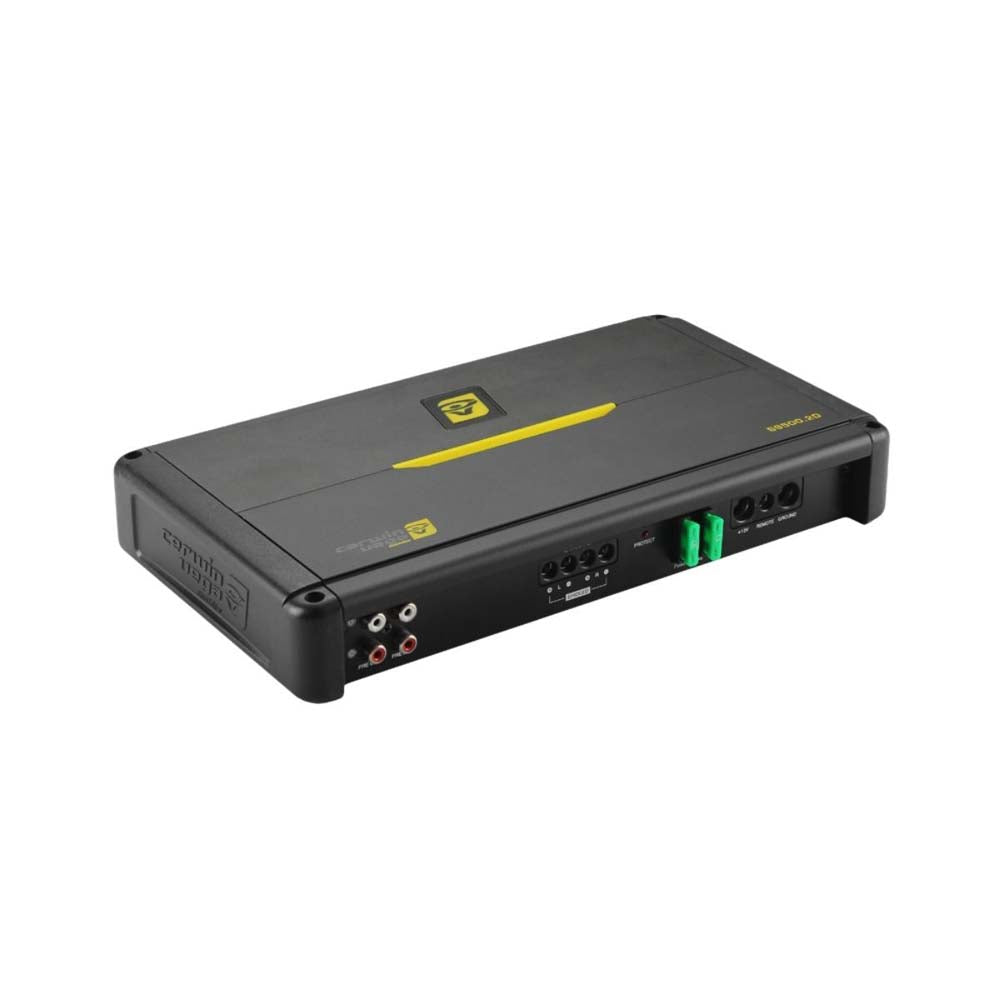

Cerwin Vega S9500.2D

The Cerwin-Vega S9500.2D Stroker Class-D 2 Channel Amplifier, a premium amplifier designed for serious car audio enthusiasts who demand exceptional power, clarity, and reliability. Built as part of the legendary Cerwin-Vega Stroker Series, this amplifier delivers impressive output and precision sound performance, making it ideal for powering speakers, components, or even subwoofers in high-output audio systems.

The Cerwin-Vega S9500.2D 2-channel amplifier uses advanced Class-D amplifier technology, providing powerful sound output with outstanding efficiency. This design minimizes heat generation while maximizing performance, allowing the amplifier to deliver clean, distortion-free audio even during extended high-volume listening sessions.

With its high-output power capability, the S9500.2D is engineered to drive component speakers, coaxial speakers, or bridged subwoofer configurations with authority. The versatile two-channel design allows users to power a pair of high-performance speakers or bridge the amplifier for additional power when driving a subwoofer system.

Built for demanding car audio setups, the amplifier features a massive aluminum heatsink that helps dissipate heat efficiently and maintain stable performance under heavy loads. This rugged cooling system ensures long-lasting reliability during high-output operation.

The S9500.2D is also equipped with 1/0 gauge power and ground connections, allowing efficient high-current power transfer from your vehicle’s electrical system to the amplifier. This ensures your amplifier receives stable voltage, enabling your system to perform at its full potential.

Features

• High-Performance Class-D 2-Channel Amplifier
• Powerful Output for Speakers or Bridged Subwoofer Setups
• High-Efficiency Design for Reduced Heat and Improved Performance
• Massive Aluminum Heatsink for Superior Cooling
• 1/0 Gauge Power Connections for High-Current Systems
• Part of the Legendary Cerwin Vega Stroker Series
• Lighted LED Cerwin Vega Logo
• Handles High and Low Level Input Up to 12V
• Switched Speaker Level Turn On Options (VOX / DC Offset / REM)
• X-Over Switch: High Pass / Flat / Low Pass

Specifications

Stroker Series 2-Channel Full Range Class-D Car Amplifier

Power Rating

• Frequency Response (Hz): 35Hz - 350Hz
• RMS Power (2Ω) : 250 Watt x 2 Channel
• RMS Power (4Ω) : 200 Watt x 2 Channel
• Rms Power (4Ω) Bridged : 500 Watt x 2 Channel

Power Supply

• Power Supply : Full WPM
• Power Supply Threshold : 10.0VDC - 17.0VDC
• Idle Current : 0.7A

Distortion

• THD 4 (1KHZ @ 4Ω) : 0.05%
• S/N Ratio (A Weighted @1W) : -77.2dBA
• S/N Ratio (A Weighted @FP) : -98.9dBA

Input Sensitivity

• Low Input Level : 200mV-10.0V
• High Input Level : Up to 25W RMS

Input Impedance

• Low Input Level : 22KΩ
• High Input Level : N/A

Output Stage

• Output Impedance : 0.047Ω
• Damping Factor (50Hz @ 4Ω) : >250
• Bandwidth (-3dB) : 10Hz-35KHz

Crossover (1-12dB/Oct)

• Variable High Pass : 35Hz-350Hz
• Variable Low-Pass : 35Hz-350Hz
• Variable Sub-Sonic : N/A

Fuse Ratings

• ATC : 2 x 25A

Dimensions

• L x W x H : 11.81" x 7.25" x 2.0" (299.9 x 184.2 x 50.8)mm
