Cerwin Vega RPMPH694LK 14+ Harley Davidson Cut in Lid Kit with PH694

Features:

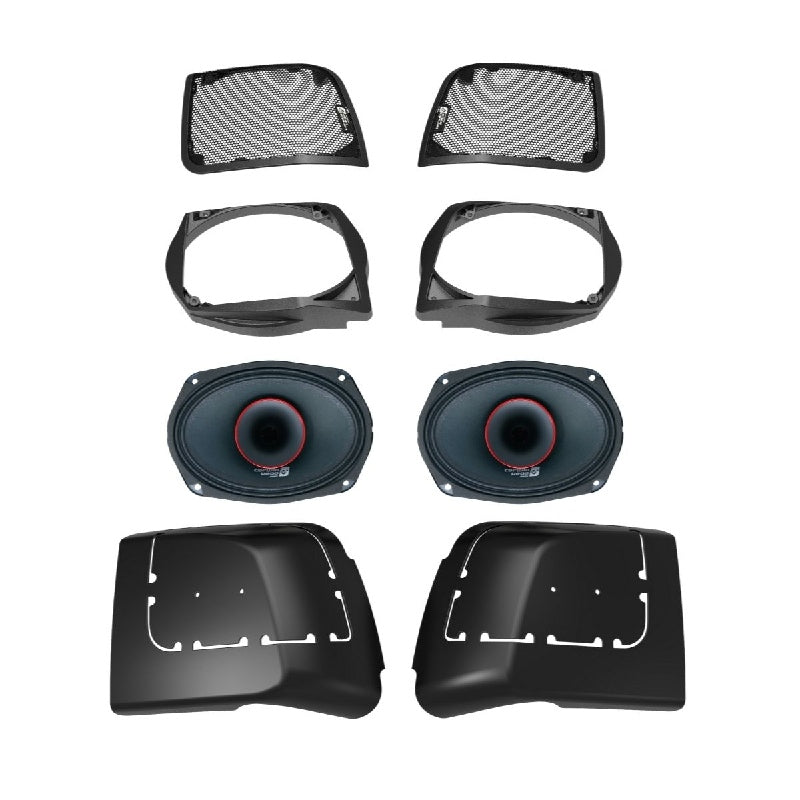

• Harley Davidson 14+ Cut in Lid Kit
• 6 X 9” PRO Full-Range Co-Ax Horn Speaker, Pair
• Ferrite Strontium High Temp Magnet Structure
• Heavy Duty Stamped Steel Basket
• Advanced Voice Coil Heat Sink Design for better heat dissipation
• 1.5” Single Layer High Temp Voice Coil with Black CoatedVoice Coil former for Woofer
• 1.0” Single Layer High Temp Voice Coil with Black CoatedVoice Coil former for Tweeter
• 12dB 2nd Order Filter Crossover for better Protection of the Tweeter

Specifications:

• Frequency Response: 80Hz -18Khz
• Voice Coil Diameter (inch/mm): 1.5”
• Power Handling (RMS/Peak): 160W RMS/320W MAX
• Re (Ω)[series]: 3.2
• Qms: 9.2
• Qes: 0.85
• Qts: 0.78
• Fs-Free Air Resonance (Hz): 76.5
• Vas (Liter): 22.0
• Cms (mm/N): 0.30
• Mms (g): 14.5
• Sd (cm²): 229.7
• BL (T*M): 5.1
• Xmax - Inch(mm): 1.0
• SPL (dB-MidBass): 92.5
• SPL (dB-Tweeter): 107
• Sensitivity (1W/1M): 103dB
• Total Diameter: 9.29X6.46 (236X164)
• Mounting Diameter (inch/mm): 8.74X5.98 (222X152)
• Mounting Depth: 3.90 (99) in. (mm)
• Magnet Diameter (E): 4.72 (120)
