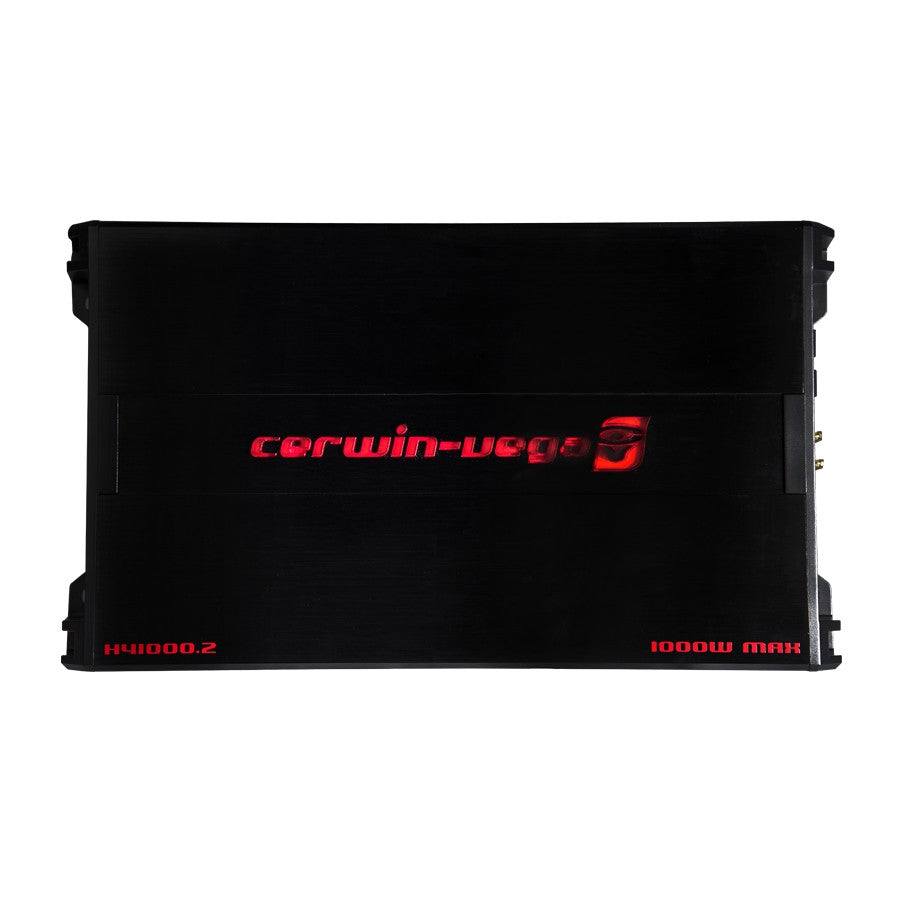

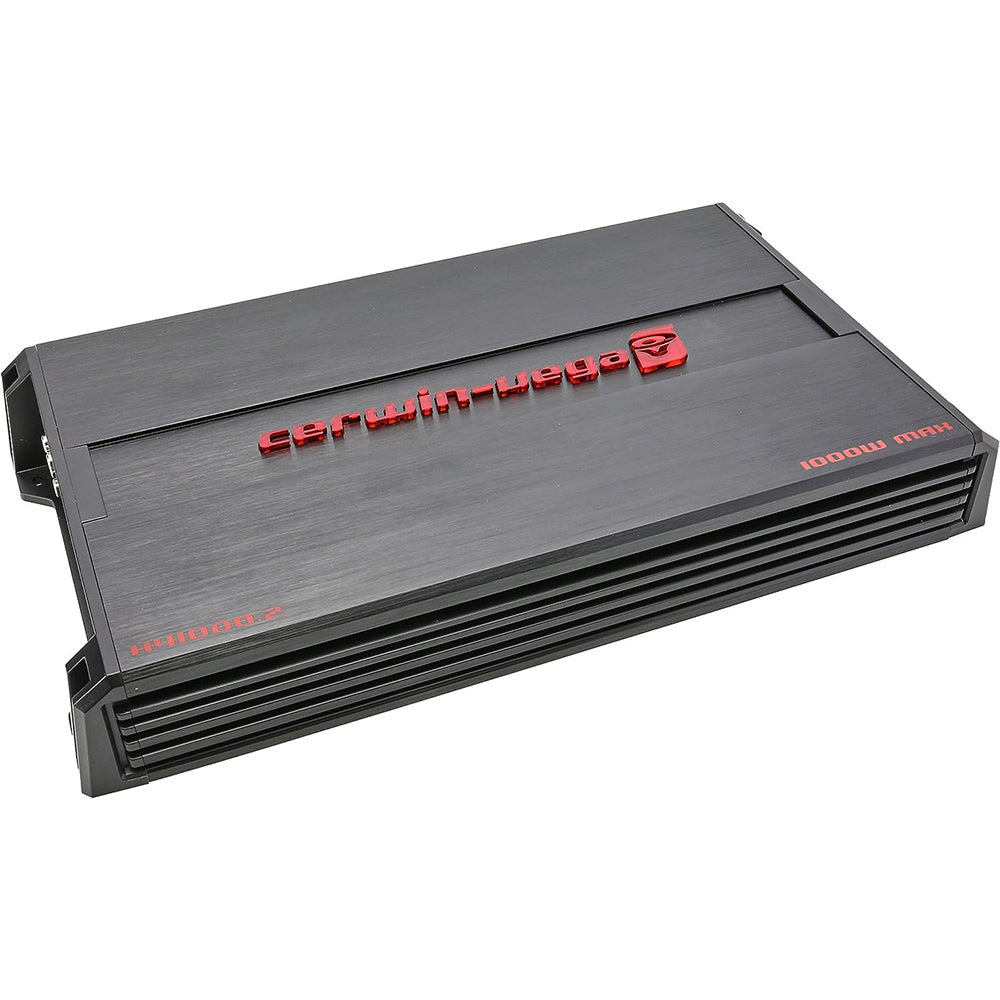

Cerwin Vega H41000.2 1100W 2-Channel Class AB Car Amplifier

Features:

• Class AB Power Multi-Channel Topology Design
• Variable X-Over 12 dB HP/LP Switchable
• Heavy-Grade Aluminum Alloy Extruded Heatsink
• Illuminated Ambient Lit Cerwin-Vega Logo
• 1100W MAX Power / 150W X 2 @ 2Ω, 100 X 2 @ 4Ω, 350W X 1 @ 4Ω Bridged
• Crossover: 50Hz – 250Hz
• Frequency Response: 50Hz – 35KHz

Specifications:

• Max Power: 1100 Watt MAX
• RMS Power (2 Ω): 150 Watt
• RMS Power (4 Ω): 100 Watt
• Bridged (Mono 1 Ω): N/A
• Bridged (Mono 2 Ω): N/A
• Bridged (Mono 4 Ω): 300 Watt
• Topology: Class AB
• Power Supply: Full PWM
• Power Supply Threshold: 10.0VDC - 17.0VDC
• Idle Current: (0.7A)
• THD(1 KHz @4Ω): 0.1%
• S/N Ratio (A weighted @1W): -85dBA
• S/N Ratio (A weighted @FP): -101.1dBA
• Low Input Level: 0.2V - 6.0V
• Low Input Level: 20 KΩ
• Output Impedance: 0.011 Ω
• Damping Factor: >70
• Bandwidth (-3dB): 10Hz - 50KHz
• Variable High-Pass: 50Hz - 250Hz
• Variable Low-Pass: 50Hz - 250Hz
• Variable Sub-Sonic: N/A
• ATC: 2x20A
• Length x Width x Height (inches): 15.7 x 8.875 x 2.187
• Length x Width x Height (mm): 398 x 25.4 x 55.6
