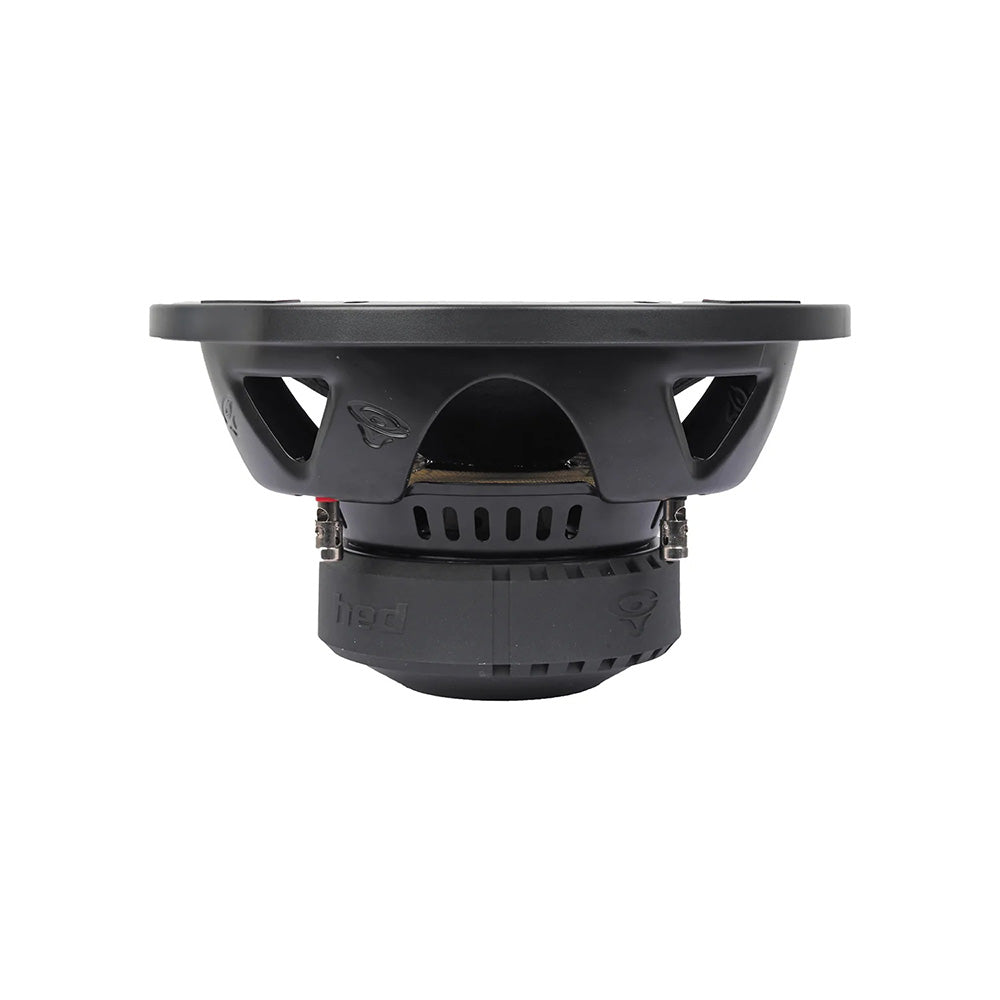

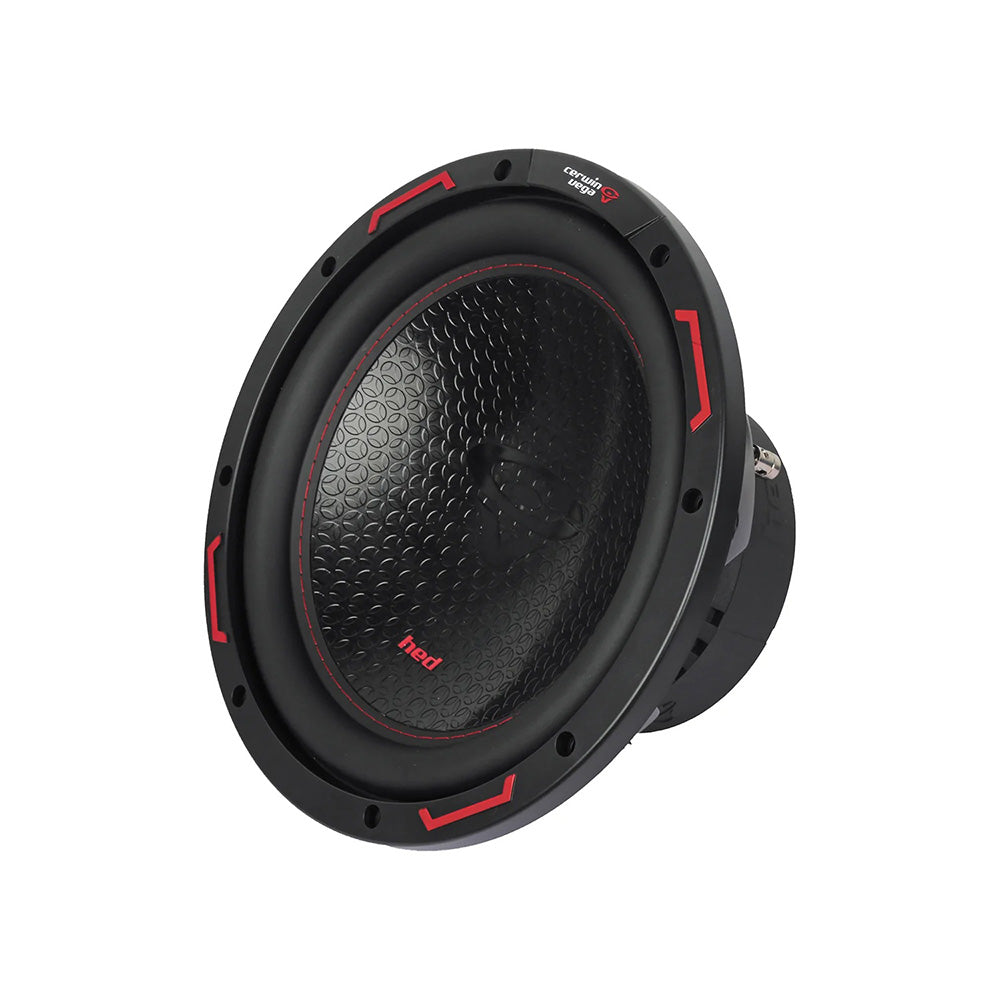

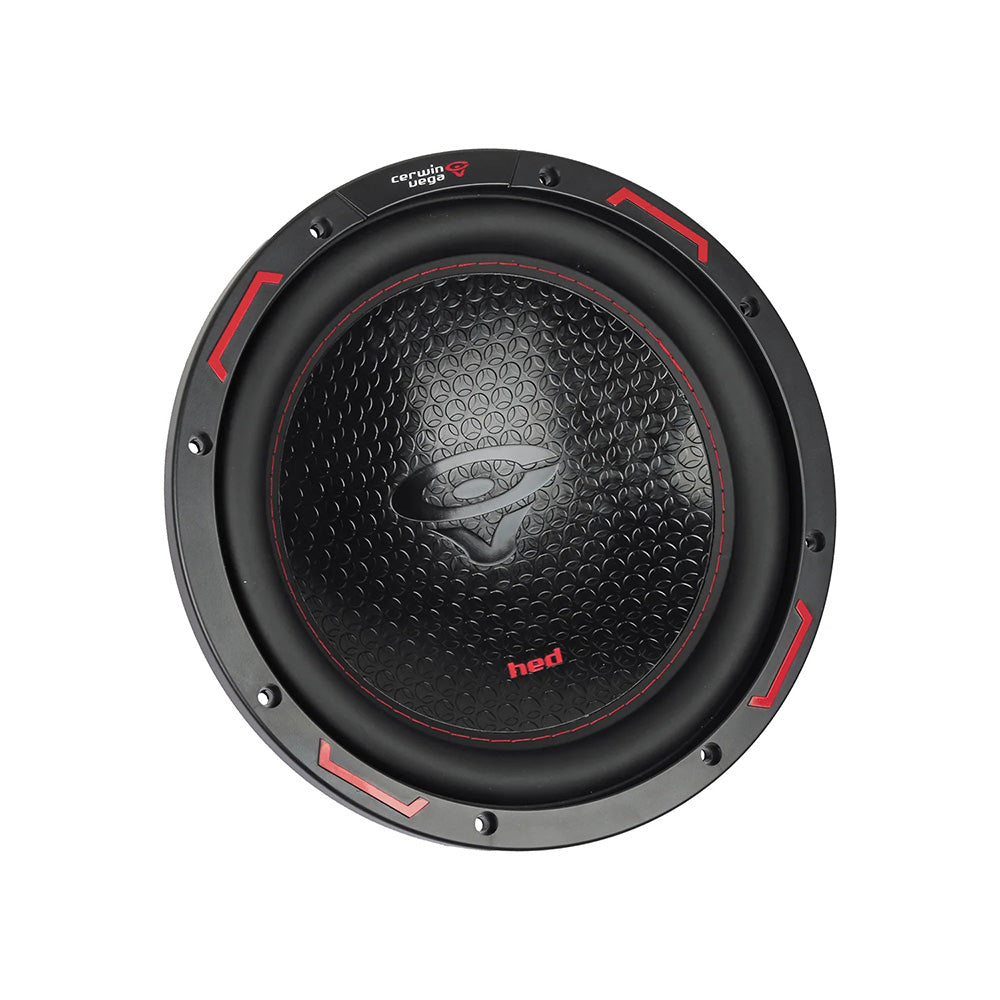

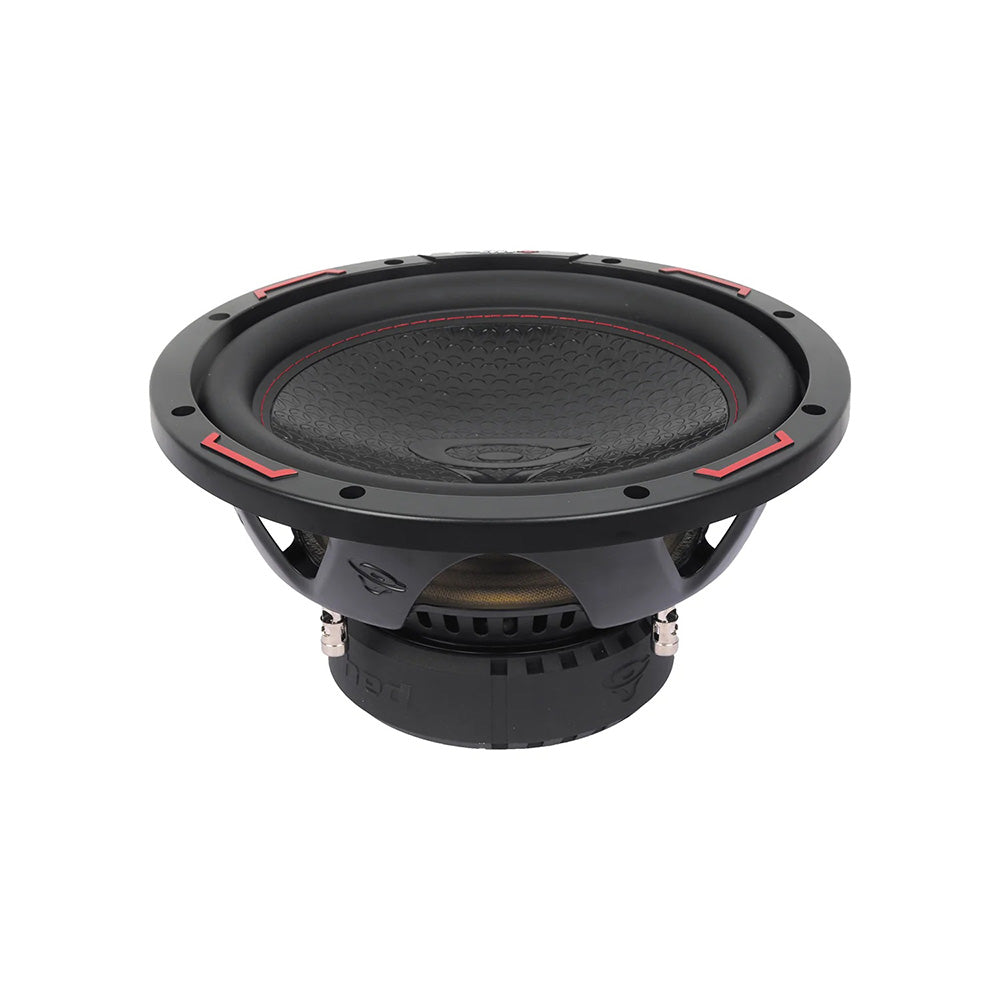

Cerwin Vega H10DV2 10 Inch HED 2025 Edition DVC Subwoofer (2Ω)

H10DV2 - HED 10" DVC SUBWOOFER (2Ω)
Cerwin-Vega HED subwoofers are engineered for superior bass performance, with cutting-edge design and materials for durability and precision output. HED subwoofers deliver deep, impactful bass with minimal distortion, ensuring a high-fidelity listening experience even at extreme volumes.

As Dual 2-ohm and Dual 4-ohm configurations, Cerwin-Vega subwoofers offer flexibility in system design, allowing for optimized impedance matching  with various amplifiers for peak performance.

The HED Series subwoofers handle substantial power, making them ideal for high-output applications. With high excursion capabilities and solid hybrid polypropylene and treated paper cones, they maintain exceptional clarity and responsiveness under heavy loads, ensuring clean, powerful bass reproduction without compromise. Whether for everyday listening or competition-level performance, Cerwin Vega subwoofers deliver unmatched reliability and sound quality.

• Stitch-reinforced TPE Foam Surrounds

• Hybrid Polypropylene / Treated Paper Cone

• Strong Ferrite Motor Structure

• Sealed or Ported Enclosures

• Excellent Power Handling

• Trademark Cerwin-Vega Sound


Specifications:

• Speaker Size - 10 Inch

• Speaker Type - Subwoofer

• Bi-ampable Yes

• Ohms (per Coil) - 2

• Number of Voice Coils - Dual

• Cone Material - Polypropylene

• Basket Material - Stamped Steel

• Magnet Type - Ferrite (Ceramic)

• Surround Material - Treated Foam

• Voice Coil Diameter - Inch (Mm) - 2.5 Inch

• Thiele/Small Parameters

• Sensitivity (1w/1m): 86 dB

• Re (Ω) [Series]: 2+2

• Qms: 7.5

• Qes: 0.42

• Qts: 0.4

• Fs (Hz): 37

• Vas (L): 77.31

• Cms (Mm/N): 0.079

• Mms (G): 305.09

• Sd (M2): 829.58

• Bl (T*m): 15.65

• Xmax (Mm): 8

• Power Handling Rms: 550

• Power Handling Max: 1650

• Mounting Depth: In.(Mm):5.41 Inch (137.5mm)

• Cut out Diameter In.(Mm):9.33 Inch (237mm)

• Over All Diameter In.(Mm):9.96 Inch (253mm)

• Over All Height In.(Mm):6.02 Inch (153mm)
