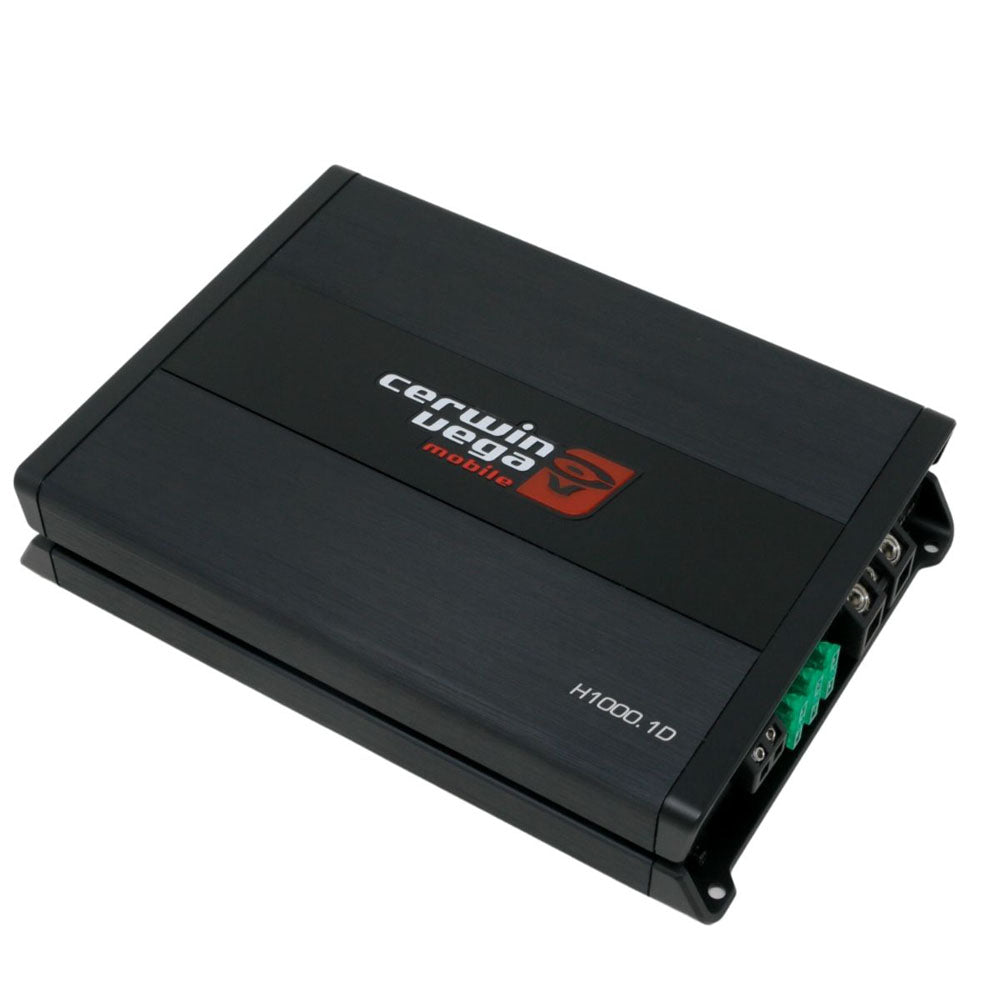

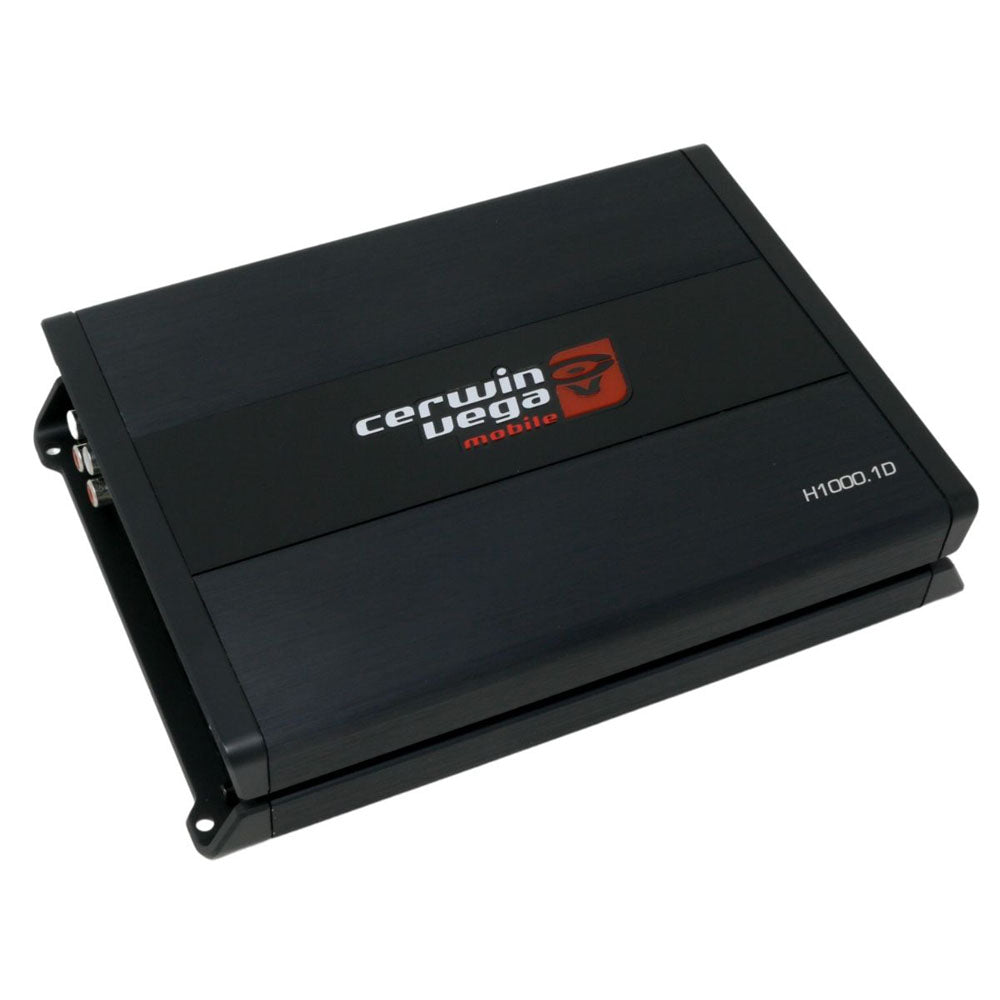

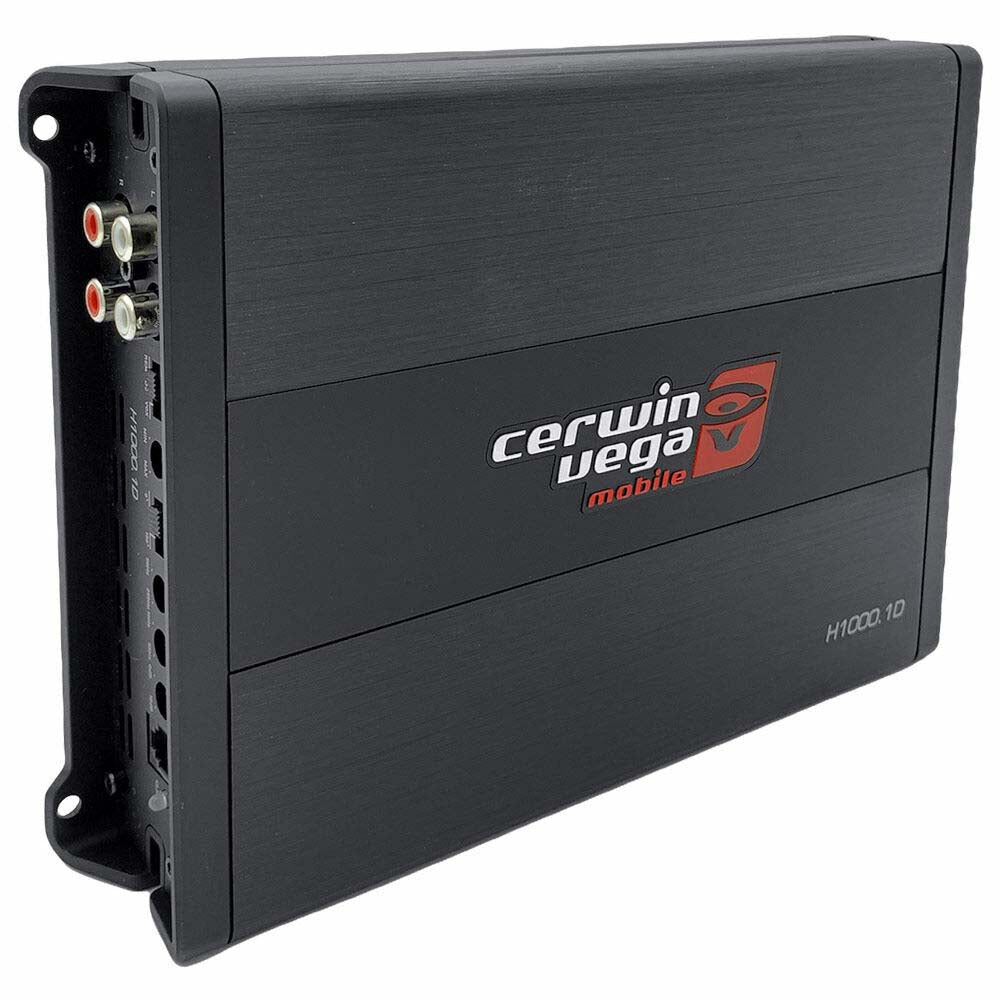

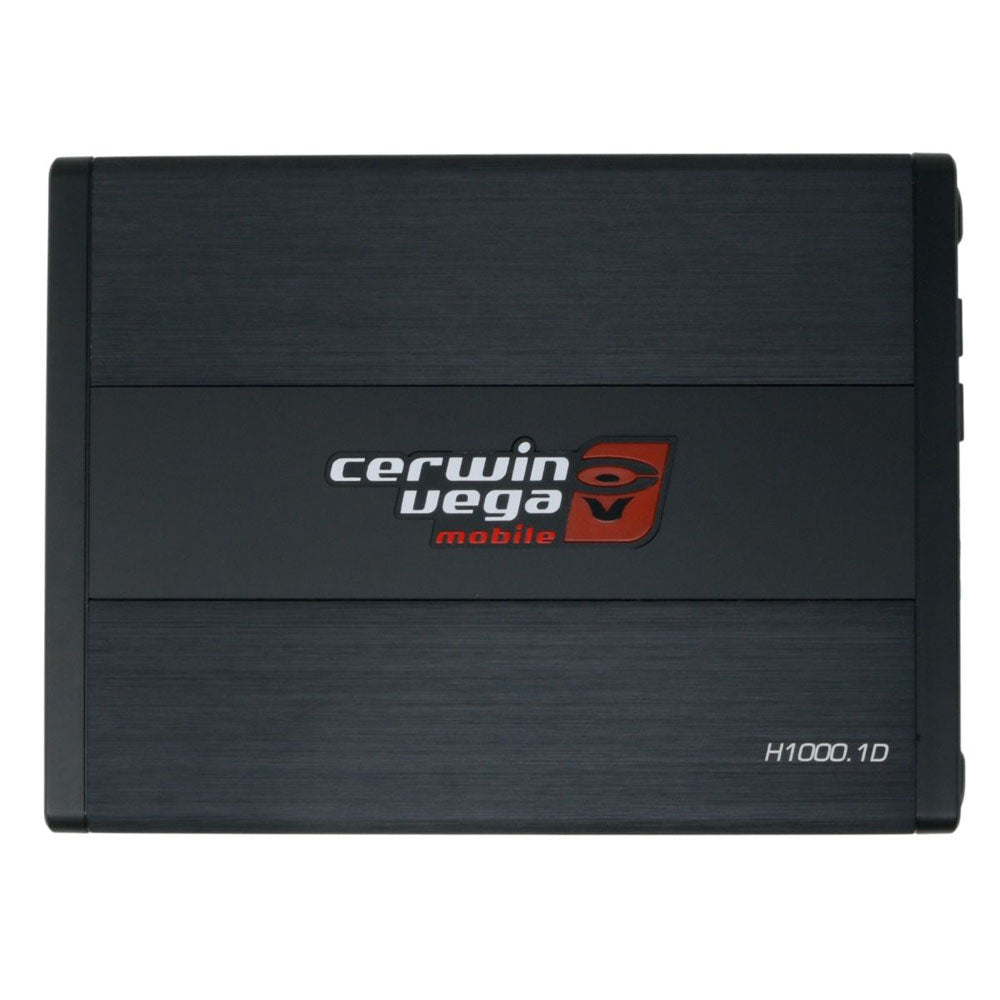

Cerwin Vega H1000.1D HED Series 1 Channel Class-D Digital Monoblock Car Amplifier

Cerwin Vega H1000.1D

The Cerwin-Vega H1000.1D HED Series Class-D Digital Monoblock Amplifier, engineered for serious car audio enthusiasts who demand clean power, durability, and precise sound control. Designed specifically for subwoofer amplification, this Class-D monoblock car amplifier delivers the deep, hard-hitting bass that Cerwin-Vega is known for while maintaining excellent efficiency and reliability.

The Cerwin-Vega HED Series amplifiers are built with advanced Class-D digital amplifier technology, allowing the H1000.1D to produce strong output while minimizing heat and power consumption. This efficient design helps maximize power delivery to your subwoofer while reducing strain on your vehicle’s electrical system. The result is clean, distortion-free bass that enhances every genre of music.

Constructed with a lightweight aluminum chassis, the H1000.1D amplifier offers excellent heat dissipation and long-term durability. The rugged amplifier housing helps maintain optimal operating temperatures even during extended high-output listening sessions. Combined with high-quality internal components and precision engineering, the amplifier is built to withstand the demands of modern high-performance car audio systems.

The H1000.1D monoblock amplifier is ideal for powering high-performance car audio subwoofers, delivering strong low-frequency output with excellent control and clarity. Whether you are building a custom competition system or upgrading your daily driver with deeper bass, this amplifier provides the power needed to bring your subwoofer to life.

Features

• Class-D Digital Monoblock Car Amplifier
• Designed Specifically for Subwoofer Applications
• High-Efficiency Class-D Technology for Powerful Bass
• Lightweight Aluminum Chassis for Superior Heat Dissipation
• Durable Construction for Long-Lasting Performance
• Compact Design for Flexible Installation
• Ideal for High-Performance Car Audio Systems

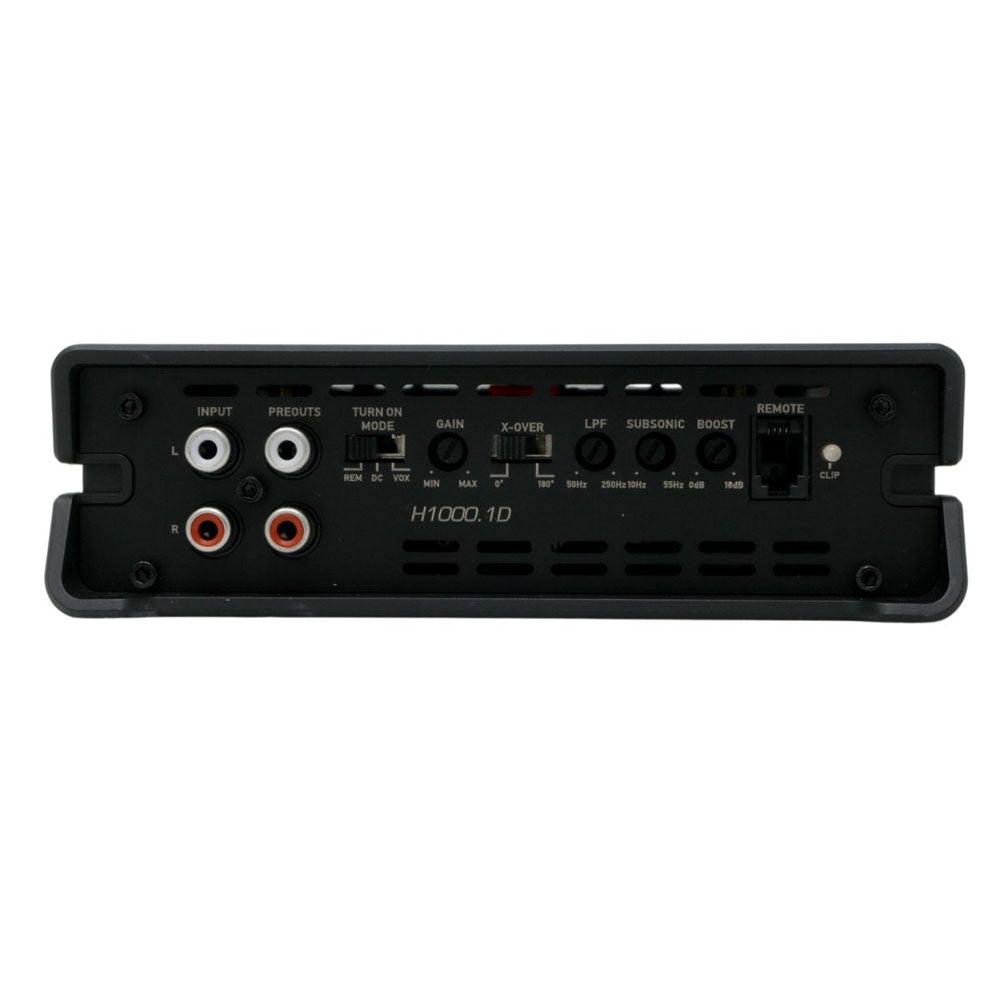

• Selectable Turn On Mode : REM / VOX / DC
• Selectable Phase : 0° - 180°
• Bass Boost : 0dB - 18dB
• LED Power / Protect Light Indicator
• LED Clipping Indicator - Helps Set Gains

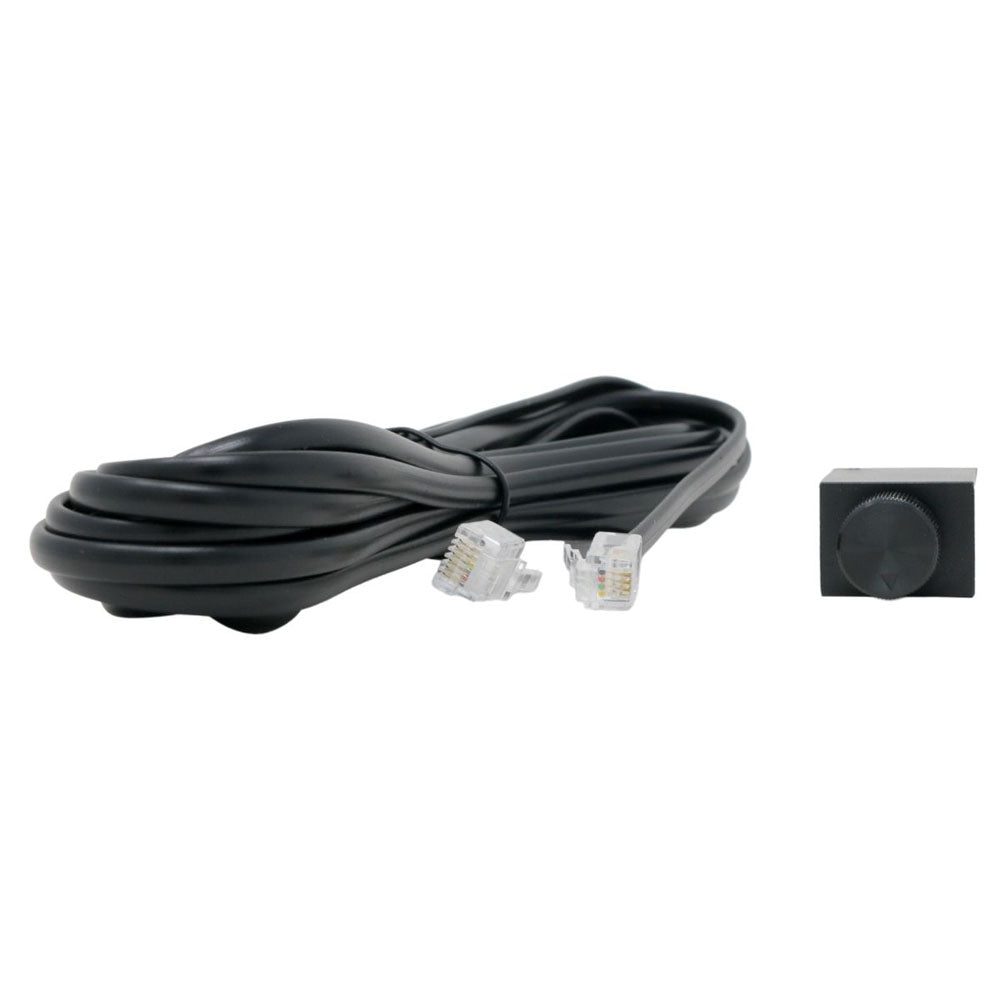

• Bass Control Included

Specifications

HED Series 1 Channel Class-D Digital Monoblock Car Amplifier

Power Rating

• Frequency Response (Hz) : 50Hz - 500Hz
• RMS Power (1Ω) : 1000 Watt x 1 Channel
• RMS Power (2Ω) : 700 Watt x 1 Channel
• RMS Power (4Ω) : 450 Watt x 1 Channel

Power Supply

• Power Supply : 12V - 14.4V
• Power Supply Threshold : 8.4VDC - 16.5VDC
• Idle Current : 1.1A

Distortion

• THD : <0.3%
• S/N Ratio (A Weighted @1W) : >90dB
• S/N Ratio (A Weighted @FP) : -88dBA

Input Sensitivity

• Low Input Level : N/A
• High Input Level : 0.3V - 8.5V

Input Impedance

• Low Input Level : 22KΩ
• High Input Level : N/A

Output Stage

• Output Impedance : 2Ω
• Damping Factor (50Hz @ 4Ω) : >100
• Bandwidth (-3dB) : 10Hz - 300Hz

Crossover (-12/-24 dB/Oct)

• Variable High Pass : N/A
• Variable Low-Pass : 50Hz - 250Hz
• Variable Sub-Sonic : 10Hz - 55Hz

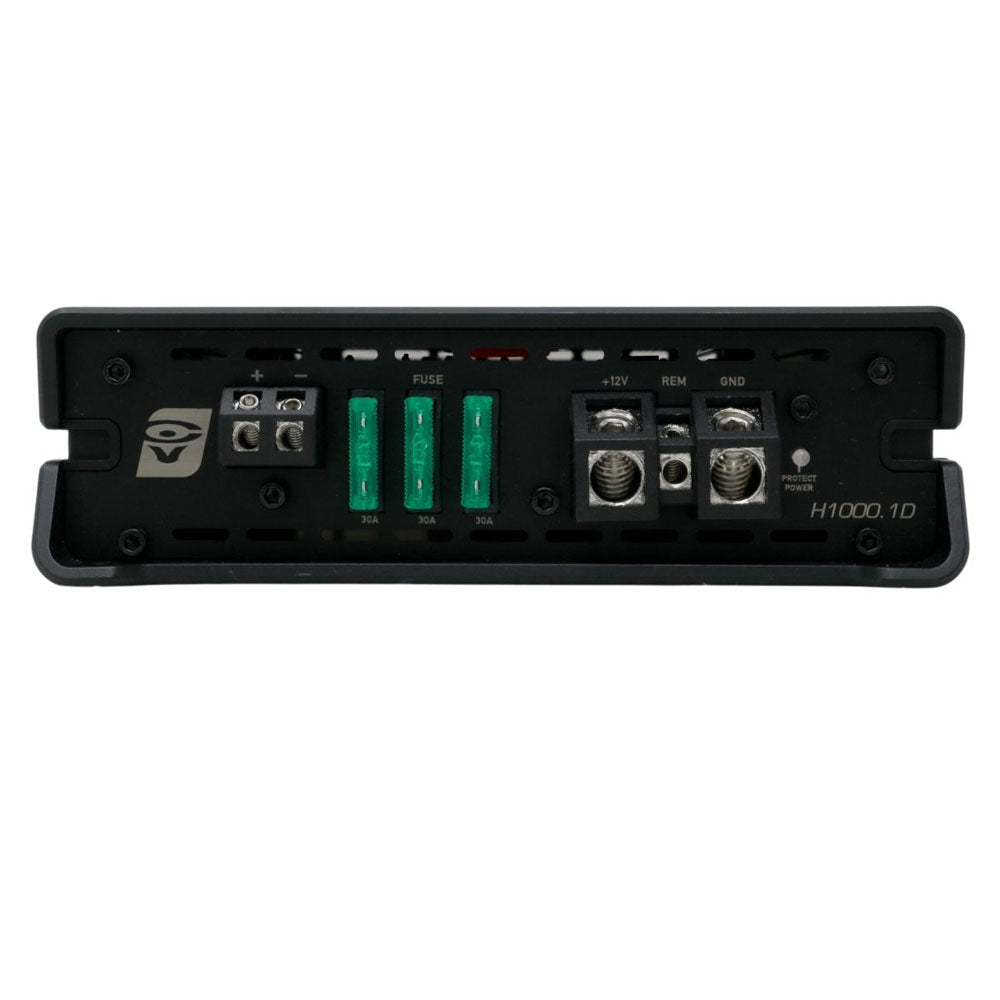

Fuse Ratings

• ATC : 30A x 3

Dimensions

• L x W x H : 9" x 6.3" x 1.9" (229.5 x 160 x 48.3)mm
