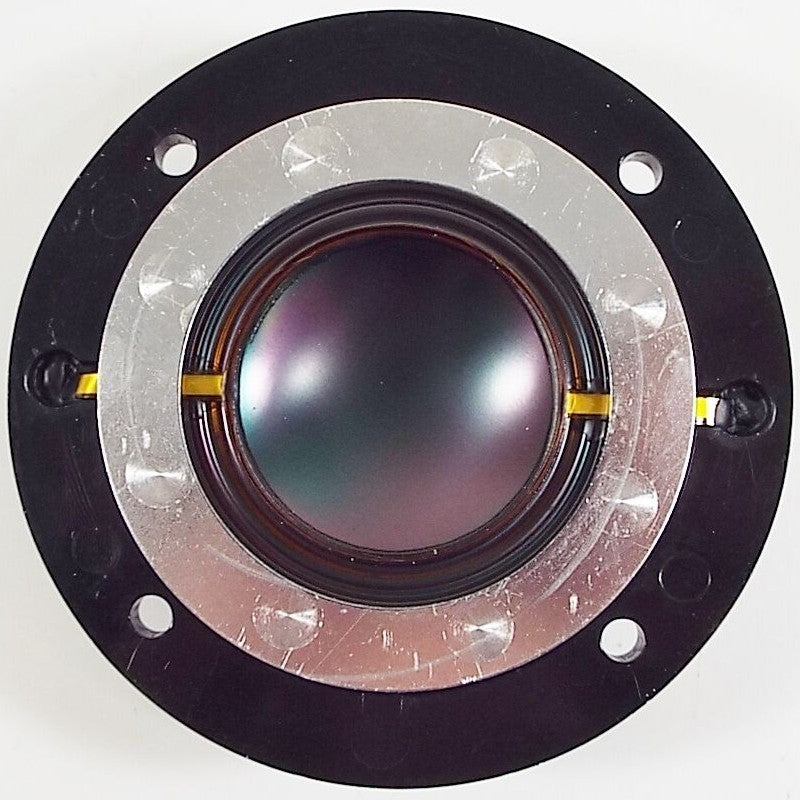

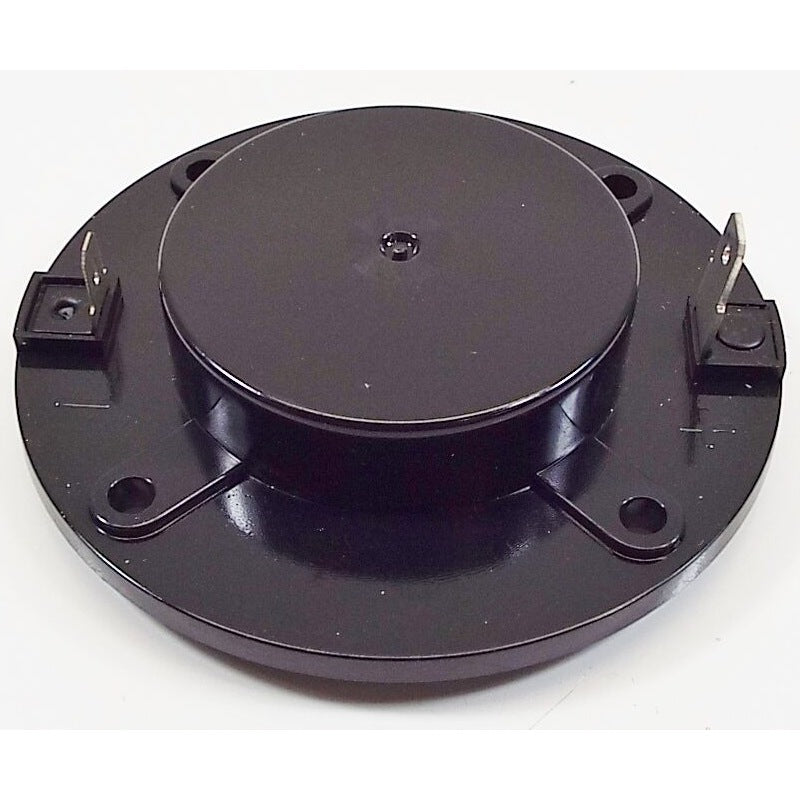

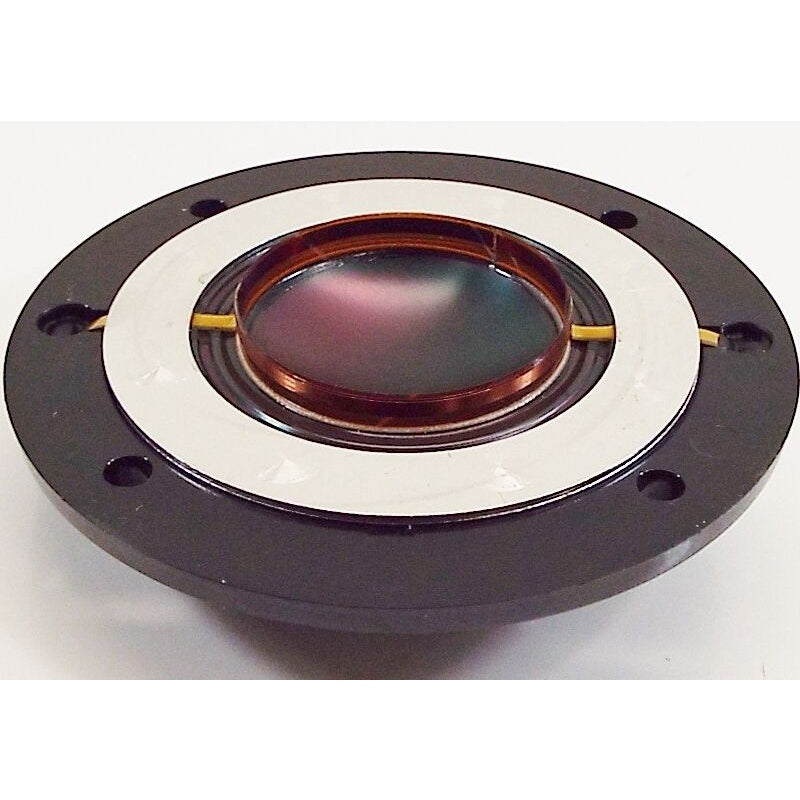

Cerwin-vega Diaphragm DIAP00005 For COMP00008 Driver fits INT-15

This is an OEM diaphragm (not aftermarket) that is made by Cerwin Vega for the COMP00008 driver. CV diaphragm part # is DIAP00005.

Specifications:

• Overall Diaphragm Diameter: 3.25" (82.55mm)
• Voice Coil Diameter: 1.35" (34.4mm)
• Nominal Impedance: 8 ohms
• DCR: 6.3 ohms
