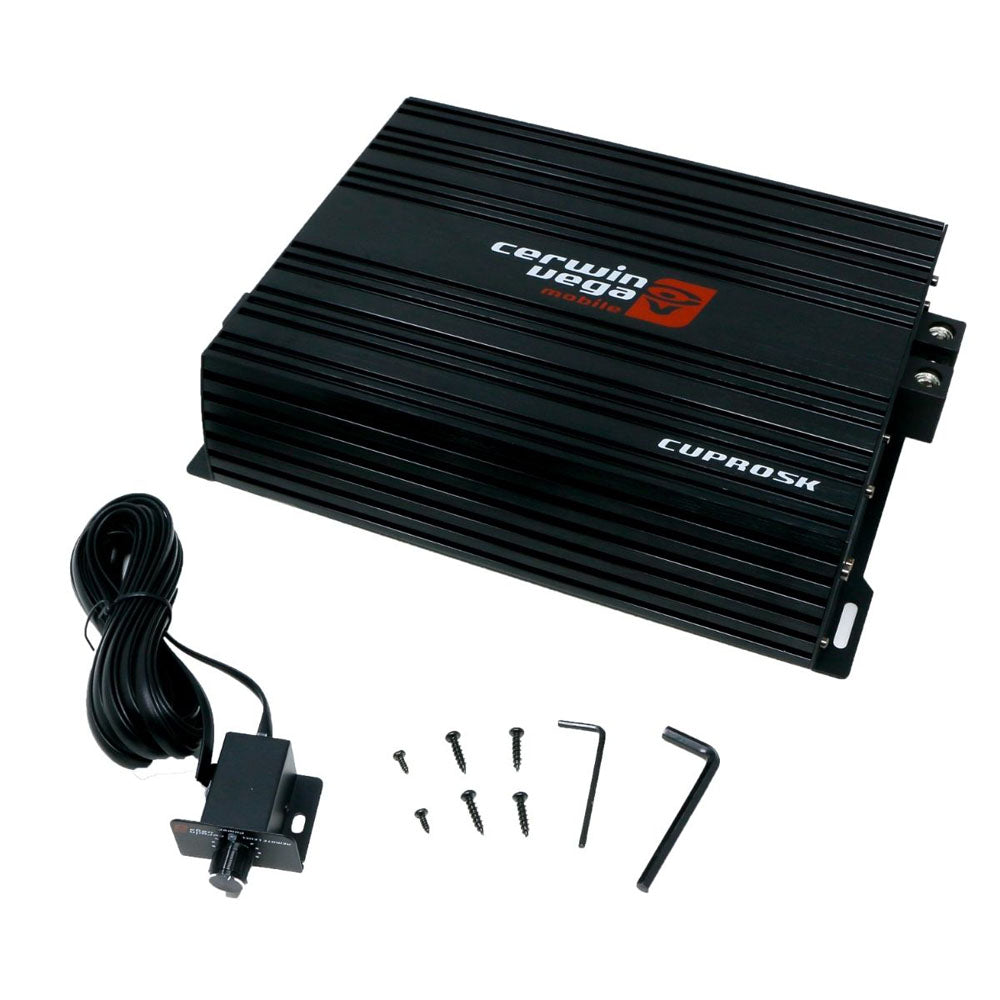

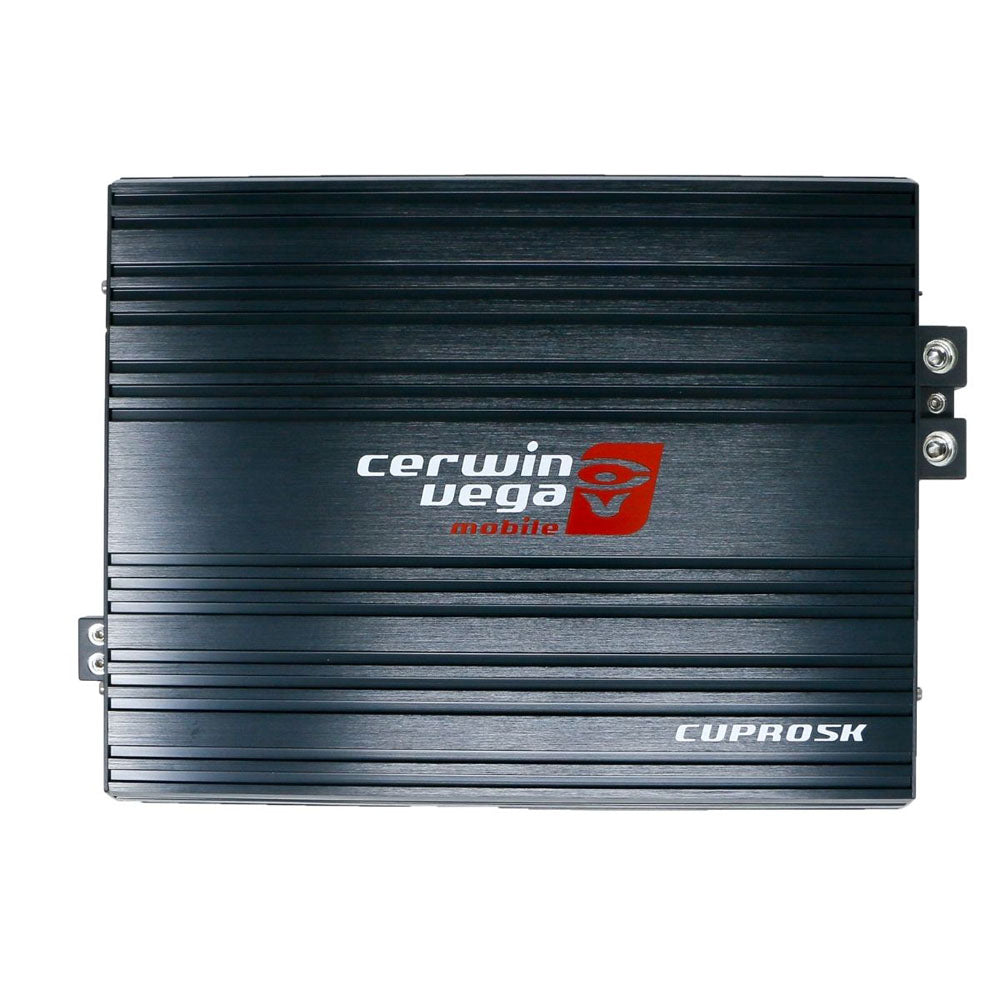

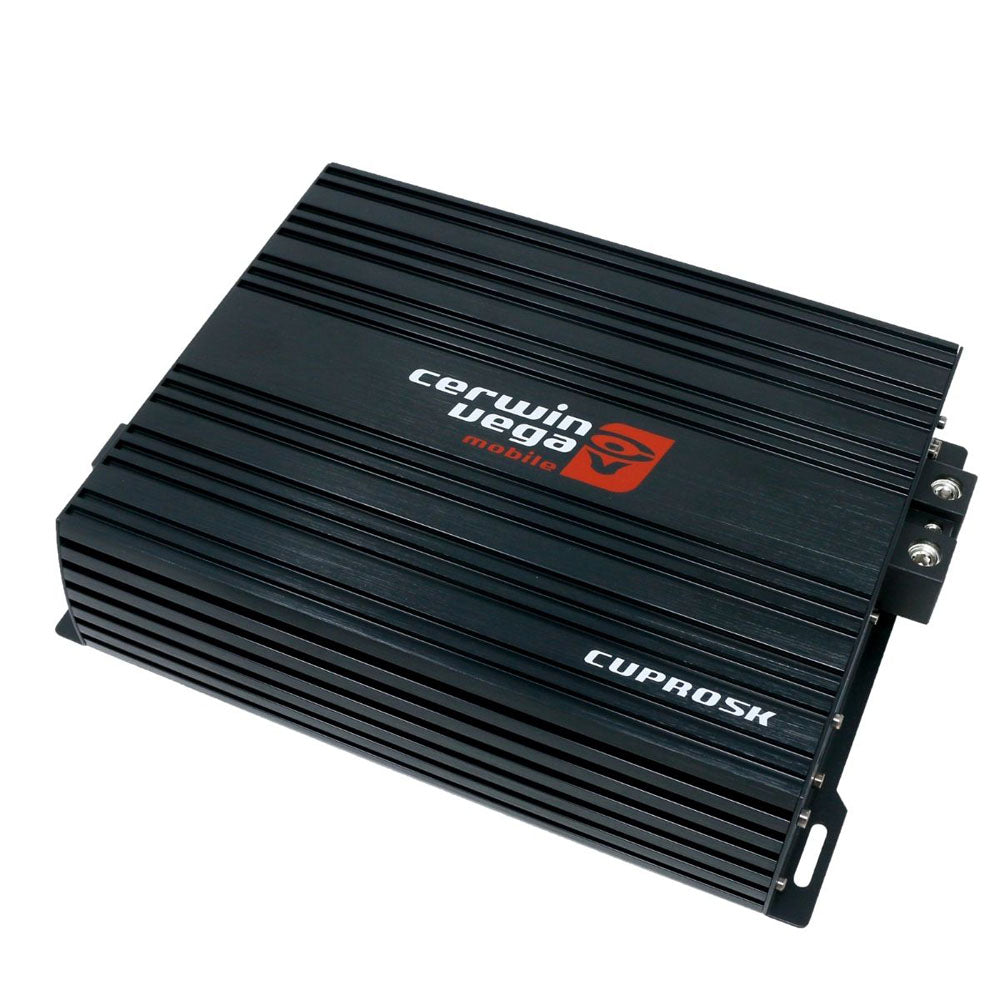

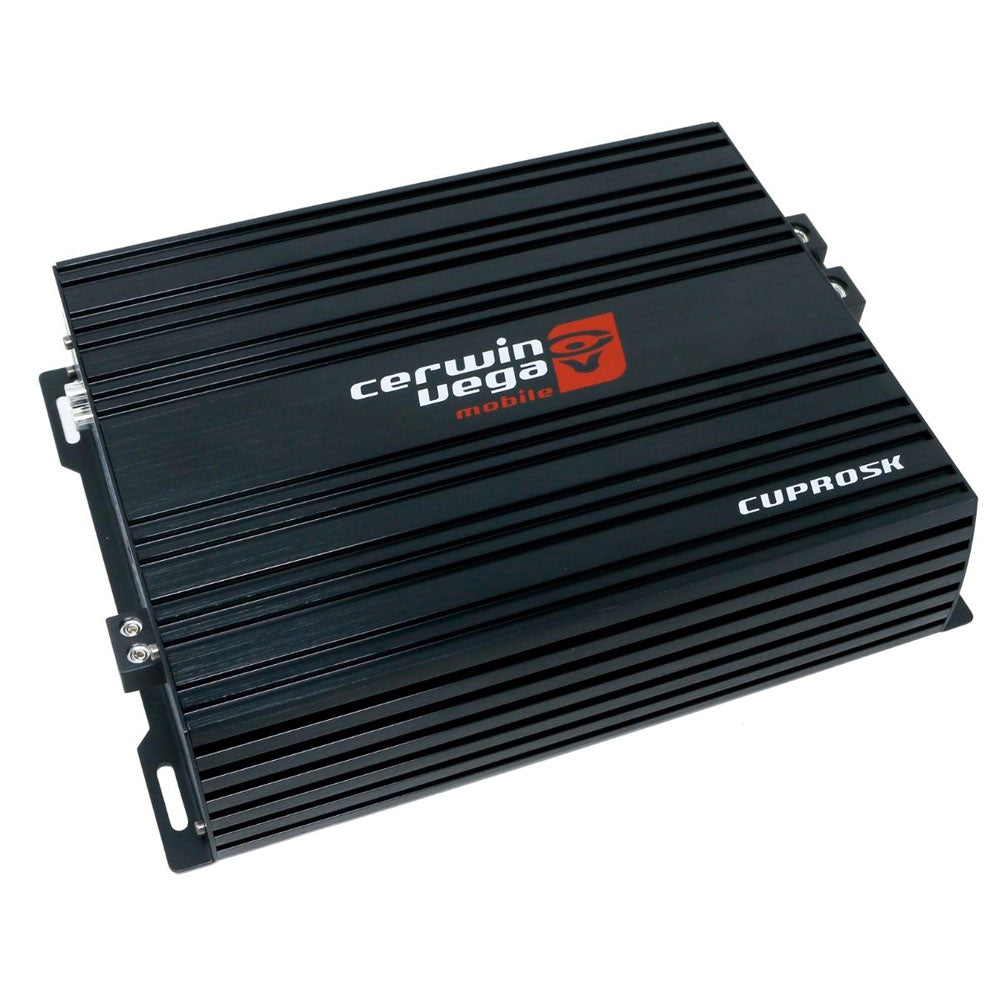

Cerwin Vega CVPRO5K 1-Channel CV PRO Series Class-D Monoblock Car Amplifier (Refurbished)

Features:

• 1-Channel Class-D Monoblock Amplifier for Extreme Subwoofer Performance
• Designed for High-power Car Audio and SPL Competition Systems
• High-current Circuitry for Maximum Bass Output and Control
• Advanced Thermal Management for Reliable Operation
• Durable Construction Built for High-demand Audio Systems
• High-efficiency Class-D Technology for Powerful, Clean Bass
• Caution High Current Draw Amplifier
• Recommended 0/1 Gauge OFC Power/Ground Wire
• LED Power/Protect Status Light
• LED Clipping Indicator Light
• Selectable Bass Frequency : 35Hz - 70Hz
• Variable Bass Boost : 0dB - 12dB
• Wired Remote Bass Level Control Included

Specifications:

CVPRO Series 1-Channel Monoblock Class D Amplifier

Power Rating

• Max Power : 10000 Watt
• RMS Power (@ 1Ω) : 5000 Watt x 1 Channel
• RMS Power (@ 2Ω) : 3300 Watt x 1 Channel
• RMS Power (@ 4Ω) : 1900 Watt x 1 Channel
• Frequency Response (Hz) : 15Hz - 250Hz

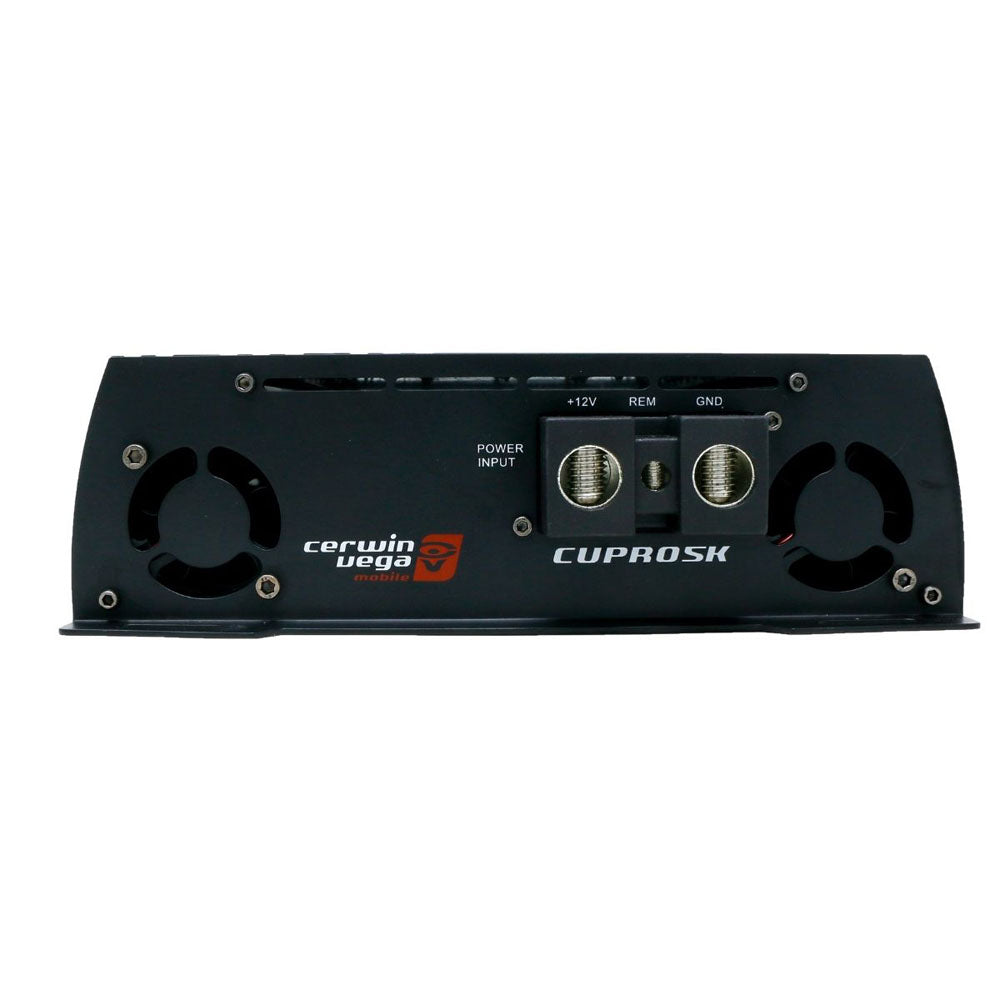

Power Supply

• Power Supply : Full PWM
• Power Supply Threshold : 10.0VDC - 17.0VDC
• Idle Current : 2.6A

Distortion

• THD 4 (1KHz @ 4Ω) : 0.1%
• S/N Ratio (A Weighted @1W) : -90dBA
• S/N Ratio (A Weighted @FP) : -105dBA

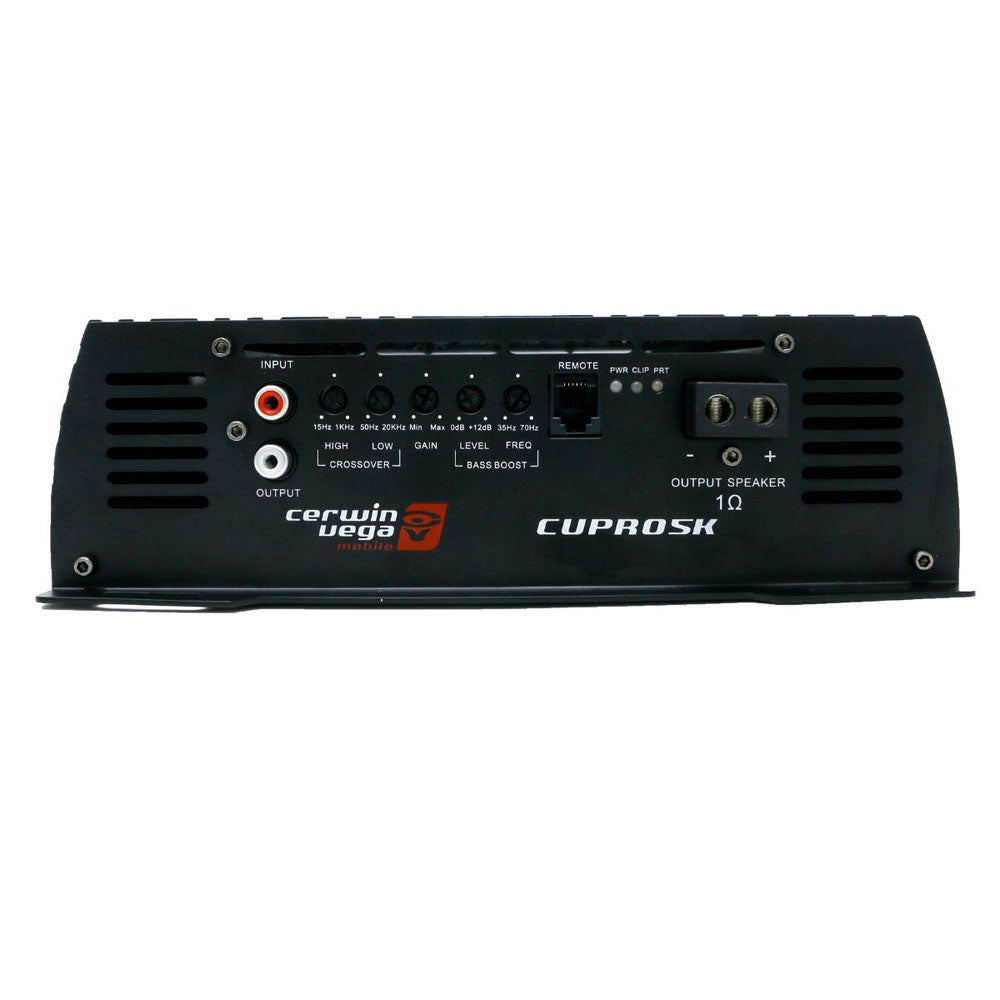

Input Sensitivity

• Low Input Level : 200mV - 5.0V
• High Input Level : 200mV - 5.0V

Input Impedance

• Low Input Level : 20KΩ
• High Input Level : N/A

Output Stage

• Output Impedance : 0.018Ω
• Damping Factor (50Hz @ 4Ω) : >150
• Bandwidth (-3dB) : 15Hz - 20KHz

Crossover (-12dB/Oct)

• Variable High-Pass : 50Hz - 20KHz
• Variable Low-Pass : 15Hz - 1KHz
• Variable Sub-Sonic : 15Hz - 1KHz

Fuse Ratings

• ATC : 200A

Dimensions

• L x W x H : 10.4" x 8.8" x 2.6" (265 x 225 x 66.5)mm

THREE MONTHS LIMITED WARRANTY
