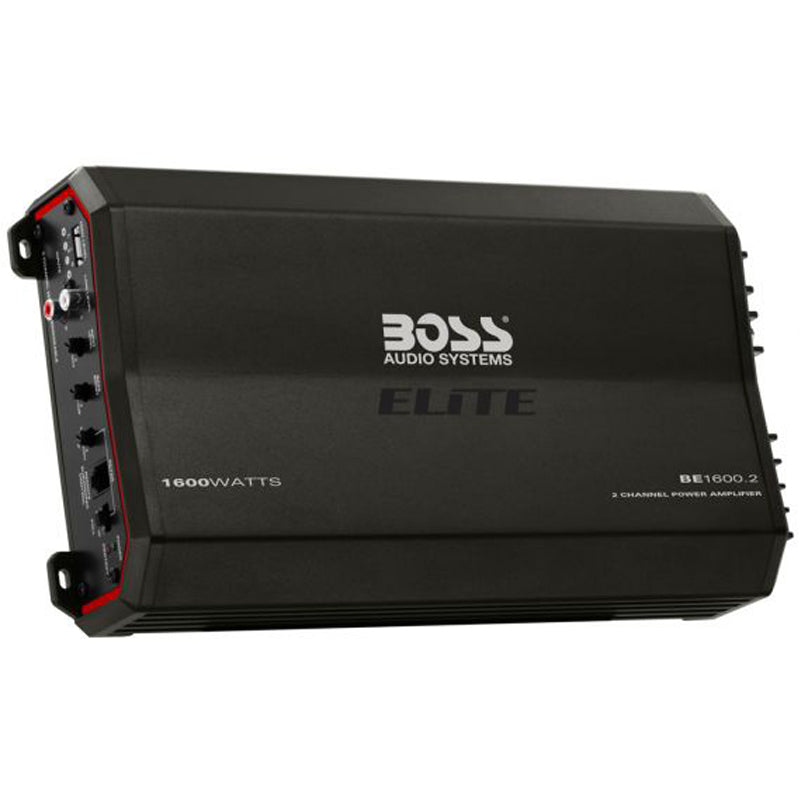

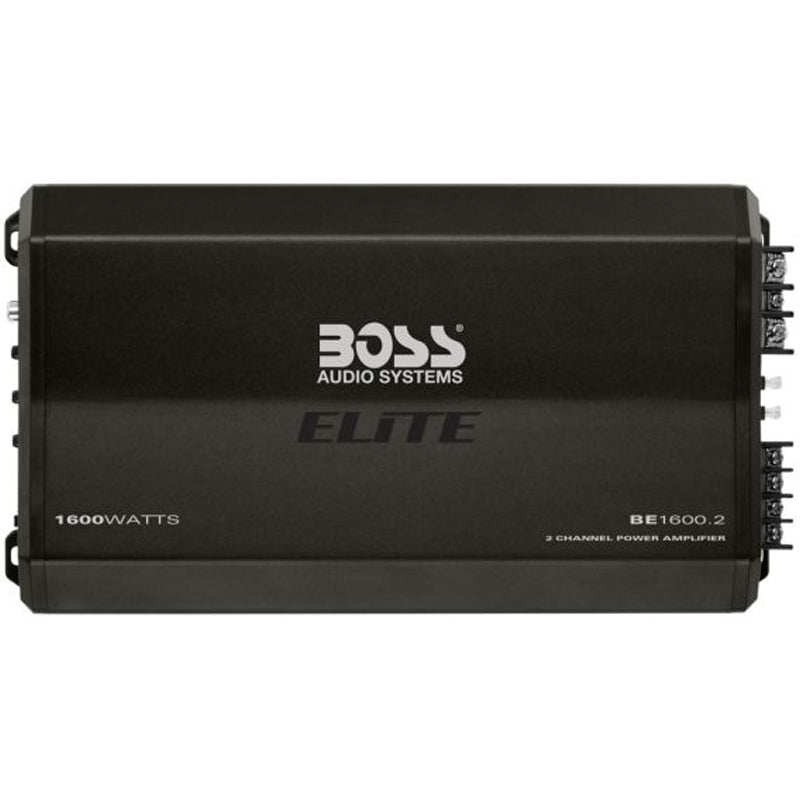

Boss Audio Elite BE1600.2

Features:

• Boss Audio Elite Series BE1600.2
• Class-AB Full Range 2-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 400 watts x 2 chan.
• 2 ohms: 600 watts x 2 chan.
• Total power output: 1600 watts
• Pulse Width Modulated MOSFET power supply

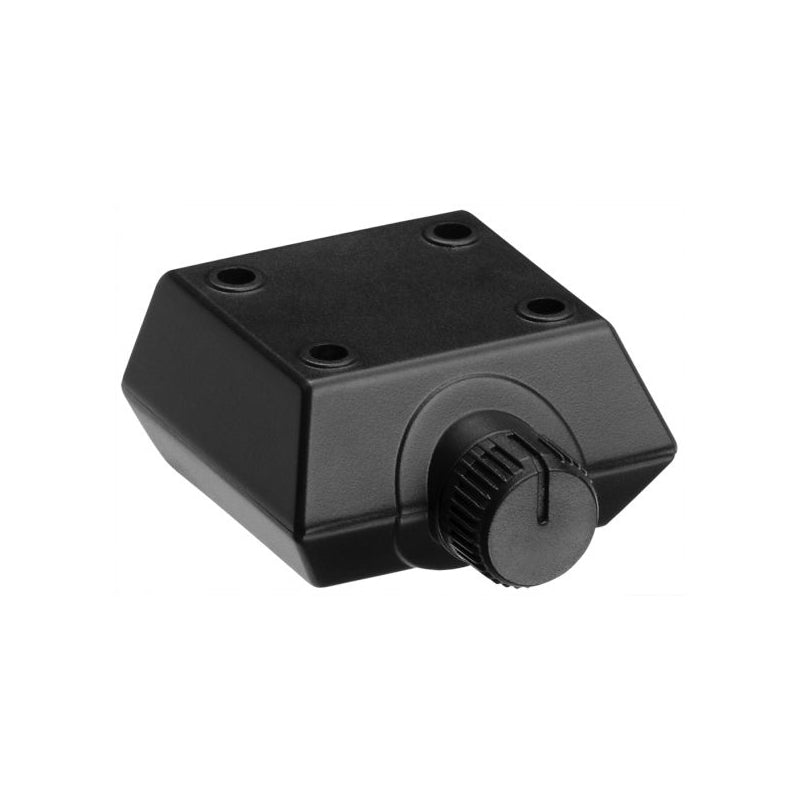

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• 2/Mono channel operation
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy split-dome convection heat-sink for extreme heat dissipation
• Frequency Response: 9 - 50,000 Hz
• Total Harmonic Distortion (THD): 0.01%
• Signal to Noise Ration: 105 dB
• Variable low-pass filter: 35 - 160 Hz
• Fixed high-pass filter: 80 Hz
• Variable Bass Boost: 0 to +18 dB bass boost

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 300 watts x 2 channels
• RMS Power @ 2 ohms: 600 watts x 2 channels
• Bridged RMS Power: 1200 watts x 1 channels

Power Specifications - Full Range Channels:

• Peak Power @ 4 ohms: 400 watts x 2 channels
• Peak Power @ 2 ohms: 800 watts x 2 channels
• Bridged Peak/Max Power: 1600 watts x 1 channels

Amplifier Specifications:

• Amplifier Series: Elite Series
• Amplifier Class: AB
• Number of Channels: 2
• Total Peak Power Output: 1600 watts
• Total RMS Power Output: 1200 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• THD at Rated RMS Power: 0.01%
• Built-in Crossover: Low-Pass (LP), High-Pass (HP)
• High-Pass Crossover Frequency: 80 Hz
• Low-Pass Crossover Frequency: 35 - 160 Hz
• Signal-to-Noise Ratio: 105 dB
• Channel Separation: 90 dB
• Bass Boost: 0 - 18 dB
• Bass/Gain Remote: Yes
