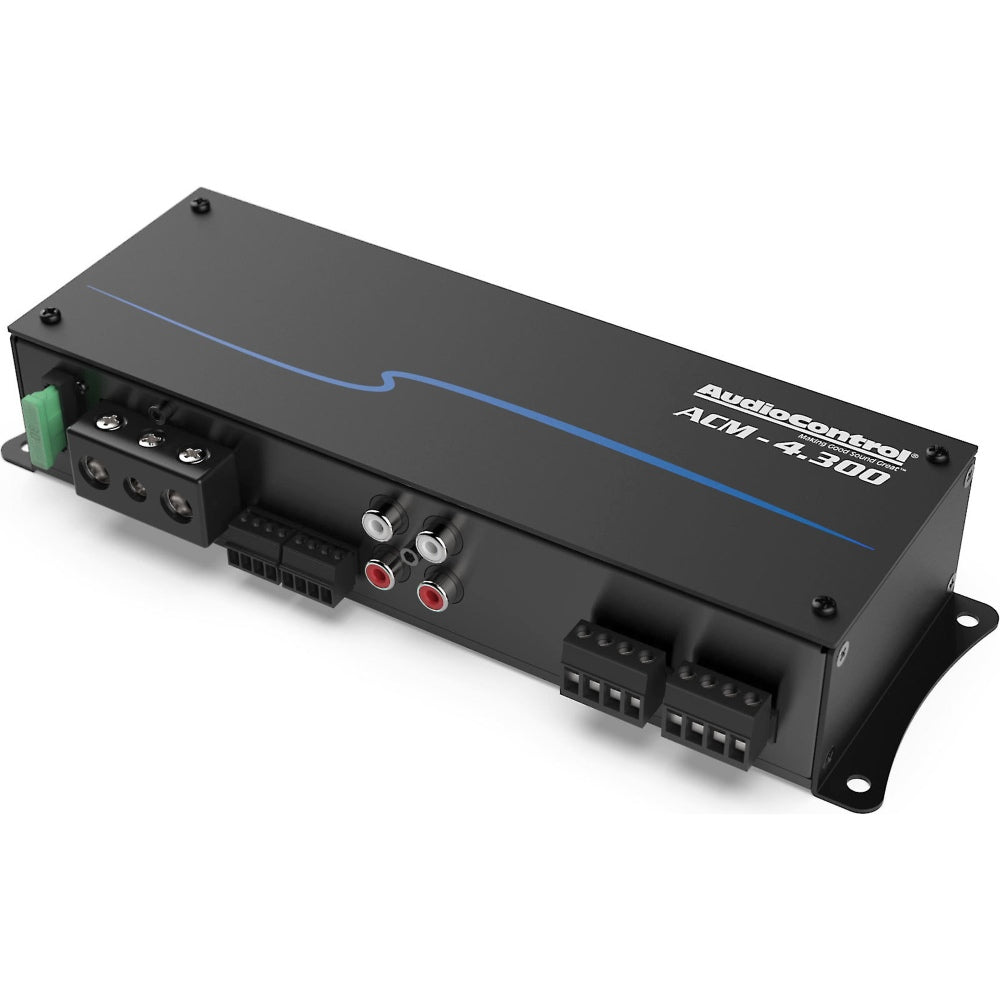

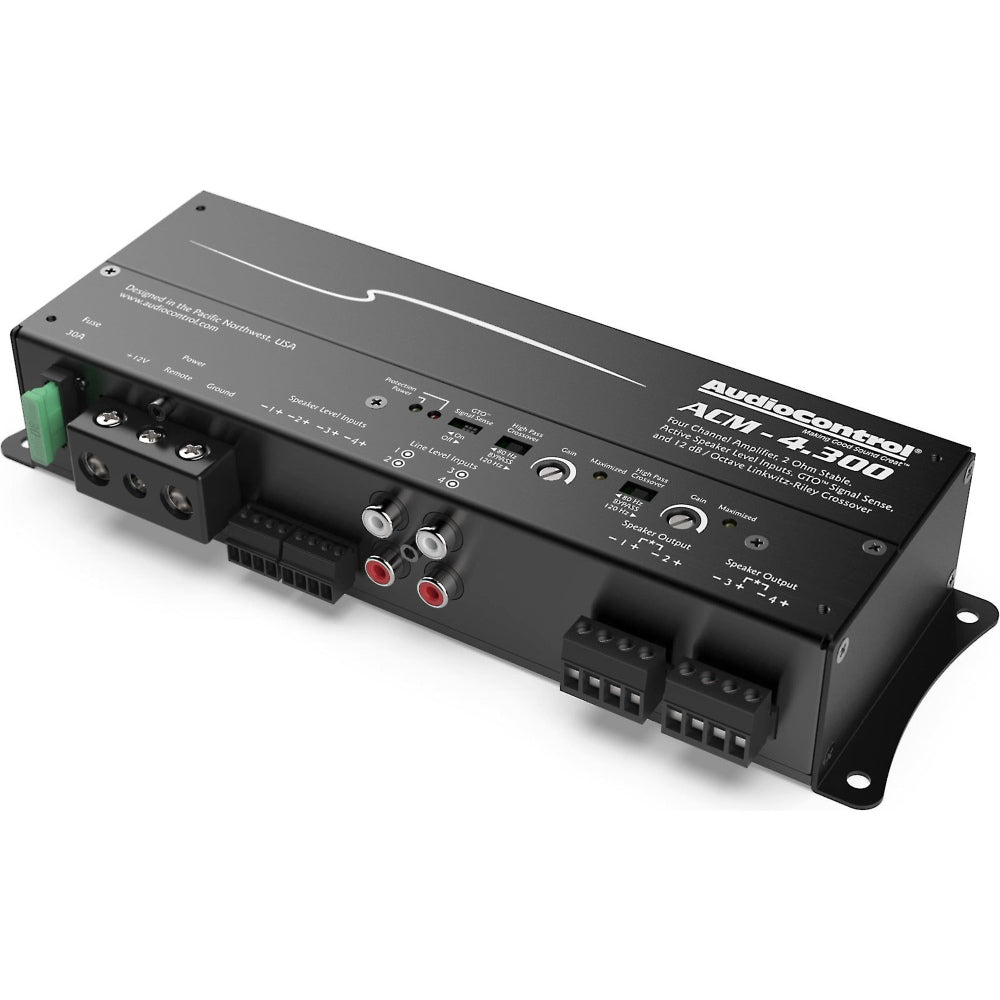

AudioControl ACM4.300 300W RMS ACM Series 2 ohm Stable 4 Channels Class D Car Amplifier

AudioControl
SKU: ACM4.300
Availability: 5 in stock
$349.99
Hurry, there are only 5 item(s) left!

QTY:

Features:

  • AudioControl ACM Series ACM4.300
  • Class-D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 4 chans.
    • 2 ohms: 175 watts x 4 chans.
    • 4 ohms, Bridged: 150 W x 2 chans.
  • Small footprint for flexible mounting options
  • GTO Signal Sense turns on the amp when signal is detected from the factory amp or stereo
  • Patented AccuBASS processing restores bass
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy-duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 500 mV - 6V
    • High level: 3V - 40V
  • Frequency Response: 10 - 22000Hz
  • Total Harmonic Distortion (THD): <.01%
  • Signal to Noise Ratio: 102 dB
  • Linkwitz-Riley Crossover
  • High pass crossover selectable at 80Hz or 120Hz
  • Fuse Rating: 30A x 1
  • Dimensions: 9.4 Inch W x 3 Inch L x 1.75 Inch H
Manufacturer :AudioControl
Model : ACM4.300
Weight :5.0 lb
SKU : ACM4.300
Warranty :
