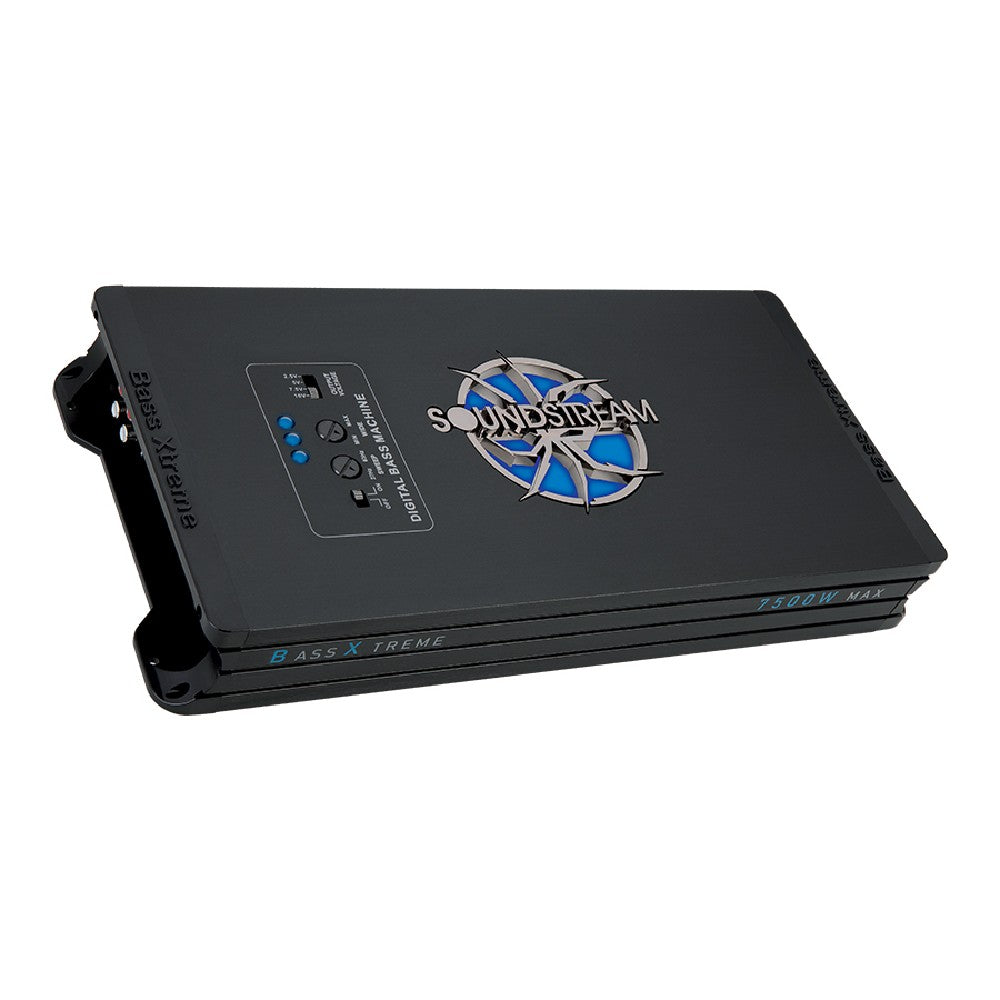

Soundstream BXT1.7500D Built-in Digital Bass Reconstruction Amplifier

Quality sound processing is necessary for those who want the most out of their car audio system. Bass Xtreme amplifiers offer similar sound processing options by including the functions of a Bass Reconstruction Processor. Bass Processor boosts lower frequency harmonics that have been compressed or removed from today’s music recordings and are commonly added in-line before subwoofer amplifiers. Dial in the exact sound you want by tuning the frequency to boost, then increase the bandwidth range from that frequency to stimulate the harmonics around it. After slight adjustments, your audio system can sound like audio professionals have tuned it. Unlock and restore the bass from any system with Bass Xtreme Amplifiers.

Features:

• Digital Bass Reconstruction Processor Built-in
• Adds Impact to Music w/ Insufficient Sub Bass
• 27Hz-63Hz Variable Center/Sweep Frequency
• Variable Q/Width to Broaden or Narrow the Bandwidth
• 2.5V-10V Output Voltage for Optimum Bass Tuning
• LED MAX BASS Indicators Warning of Extreme Levels
• 1-ohm Minimum Impedance Monoblock Operation
• Bridge 2 Monoblocks Together for Double Power!
• MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
• Military Grade SMT PCB Maintains Dynamic Performance
• Direct Short, Thermal, & Overload Circuits Protect Amplifier
• 200mV-6V High Level or Low Level RCA Input & Output
• Variable 12dB Low Pass Crossover Blocks High Frequencies
• Variable 12dB Subsonic Crossover Protects Subwoofer
• 1800 Phase Shift to Match Polarity of System Speakers
• Dash Mount Gain Control Module Included

Specifications:

• Max Power: 7500 Watts
• RMS Power @ 1Ω: 2500W x 1
• RMS Power @ 2Ω: 1500W x 1
• RMS Power @ 4Ω: 1000W x 1
• Remote Gain Control: Included
• Low Pass Filter: 40Hz-250Hz
• High Pass Filter: N/A
• Bass Boost: N/A
• Bass Boost Frequency: N/A
• Subsonic Filter: 10Hz-50Hz 12dB
• Frequency Response: 15-500Hz
• S/N: 105dB
• Input Sensitivity: 200Mv-6V
• THD: <0.3%
• Operation Voltage: 9V-16V DC
• Fuse Rating: 100A x 2
• Dimensions (7.5″W x 2.25″H): 15.75″ L
