Cerwin Vega

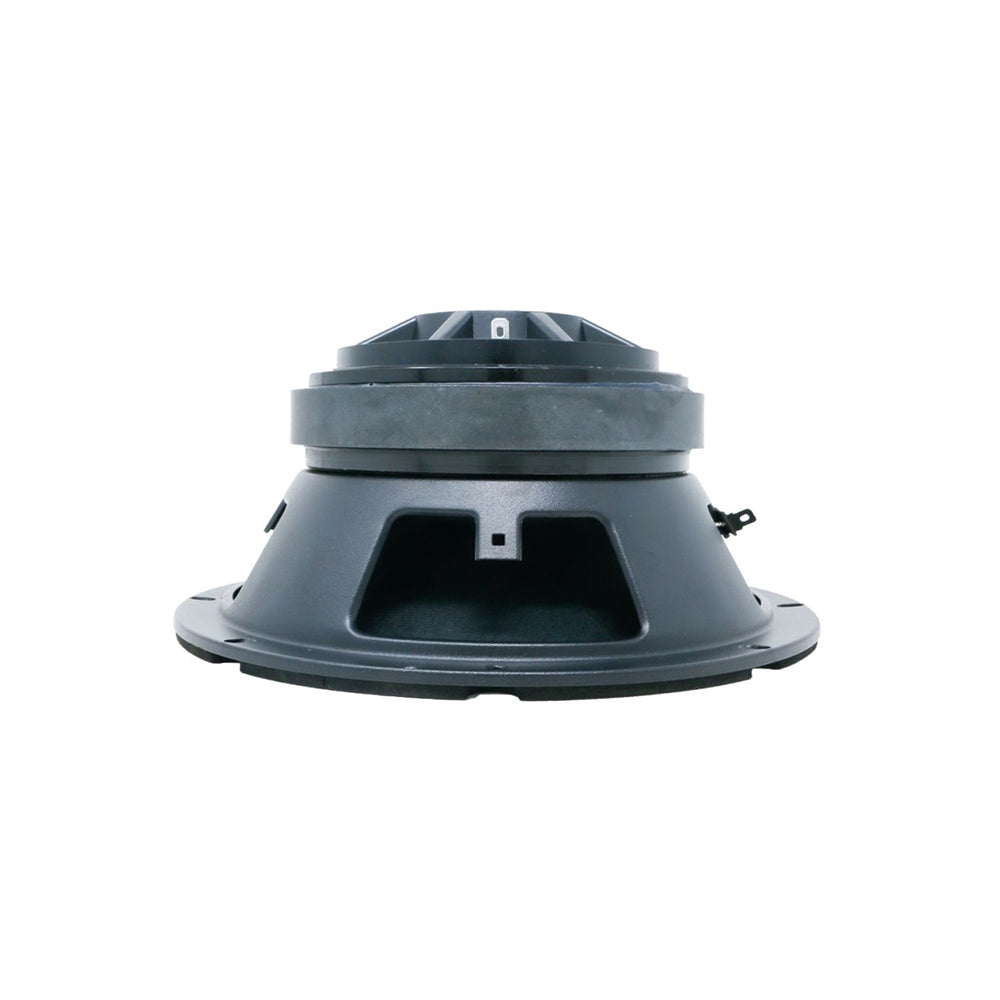

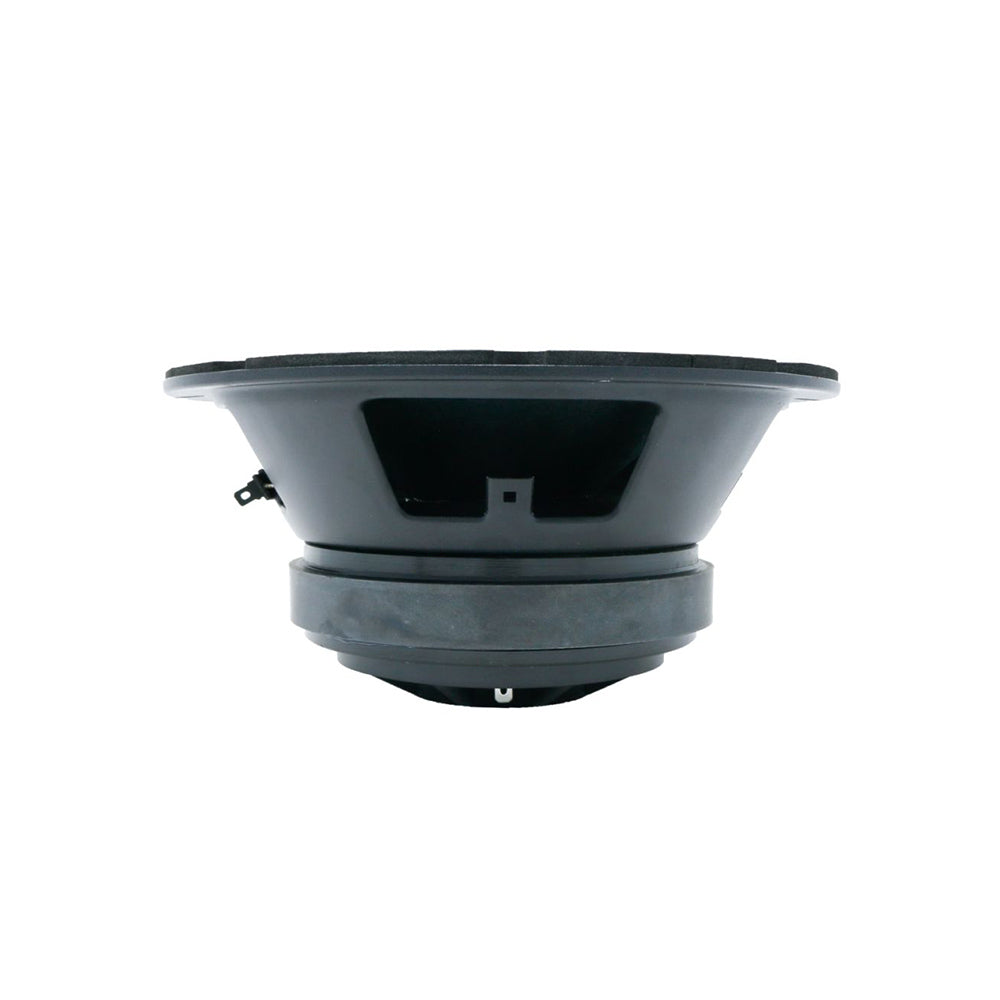

Cerwin Vega PH84 8" PRO Series (360W Max / 180W RMS) 2-way Coaxial Full-Range Horn Car Speakers (Refurbished)
$189.99
1 item left
BRAND: Cerwin Vega
SKU: PH84-CR
PRODUCT ID: 7726162542773
SHIPPING WEIGHT: 16.0 lb
100% ORIGINAL AND QUALITY
1 YEAR MANUFACTURER WARRANTY
- Description
- Reviews
Features :
- 8" PRO Full-Range Co-Ax Horn Speaker
- 180W RMS/360W MAX Power Handling
- Ferrite Strontium High Temp Magnet structure
- Heavy duty Stamped Steel Basket
- 2.0" Single Layer high temp black coated voice coil for woofer
- 1.0" Single Layer high temp voice coil for tweeter
- Frequency Response : 80Hz -18KHz
- High Sensitivity 103dB 1W/1M

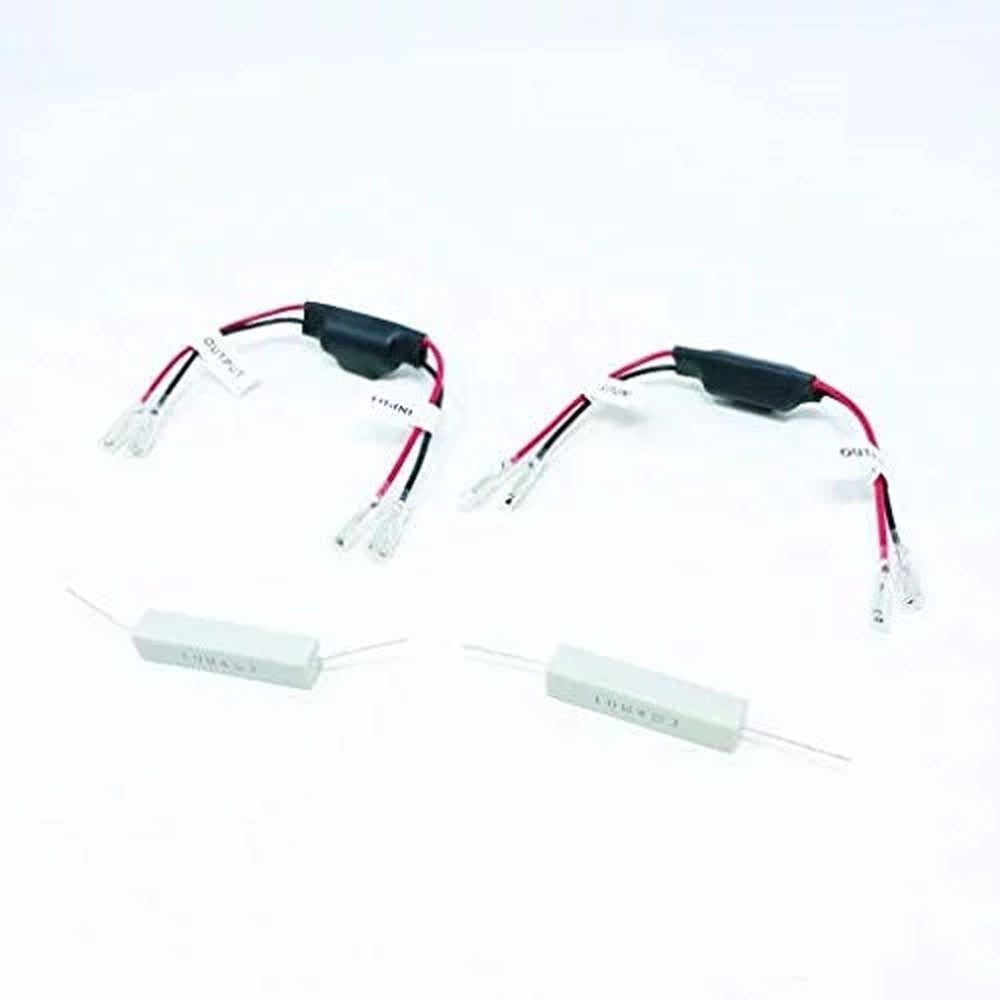

- 12dB 2nd Order Filter Crossover
Specifications :
- 8" Pro Series 2-way Coaxial Full-Range Car Speaker
- Power Handling :
- Peak : 360 Watts
- RMS : 180 Watts
- Cone Material : Treated Paper
- Diaphragm Material : Polyimide Stamped Steel
- Magnet Type : Ferrite (Ceramic)
- Surround Material : Treated Cloth
- Crossover Included : Yes - Internal
- Frequency Response : 80Hz - 18KHz
- Bi-Ampable : Yes
- Impedance (per Coil) : 4 Ohms
- Number of Voice Coils : Single
- Voice Coil Diameter - Inch (mm) : 2"
- Sensitivity (1W/1M) : 103dB
- RE (Ω) : 3.2 Ohm
- Free-Air Resonance (Fs) : 78.2Hz
- Mechanical Q Value (Qms) : 12.26
- Electrical Q Value (Qes) : 0.42
- Total Speaker Q Value (Qts) : 0.40
- Equivalent Compliance (Vas) : 19 Liters
- Xmax (mm) : 1.0" (25.4mm)
- Total Diameter : 8.23" (209mm)
- Mounting Diameter : 7.17" (182mm)
- Mounting Depth : 3.7" (94mm)
- Magnet Diameter : 5.28" (134mm)
