Power Acoustik OD5-3500 3500W 5-Channel Class A/B Amplifier with Bass Remote

Power Acoustik
SKU: OD5-3500
Availability: 5 in stock
$134.99
Hurry, there are only 5 item(s) left!

QTY:

Features:

  • High-Efficiency Class D Full Range Amplifier
  • Hybrid Aluminum Alloy Heatsink For Optimum Dissipation
  • Mosfet Power Supply W/ Audiophile Grade IRTM Transistors
  • Military Grade SMT PCB Maintains Dynamic Performance
  • Direct Short, Thermal, & Overload Circuits Protect Amplifier

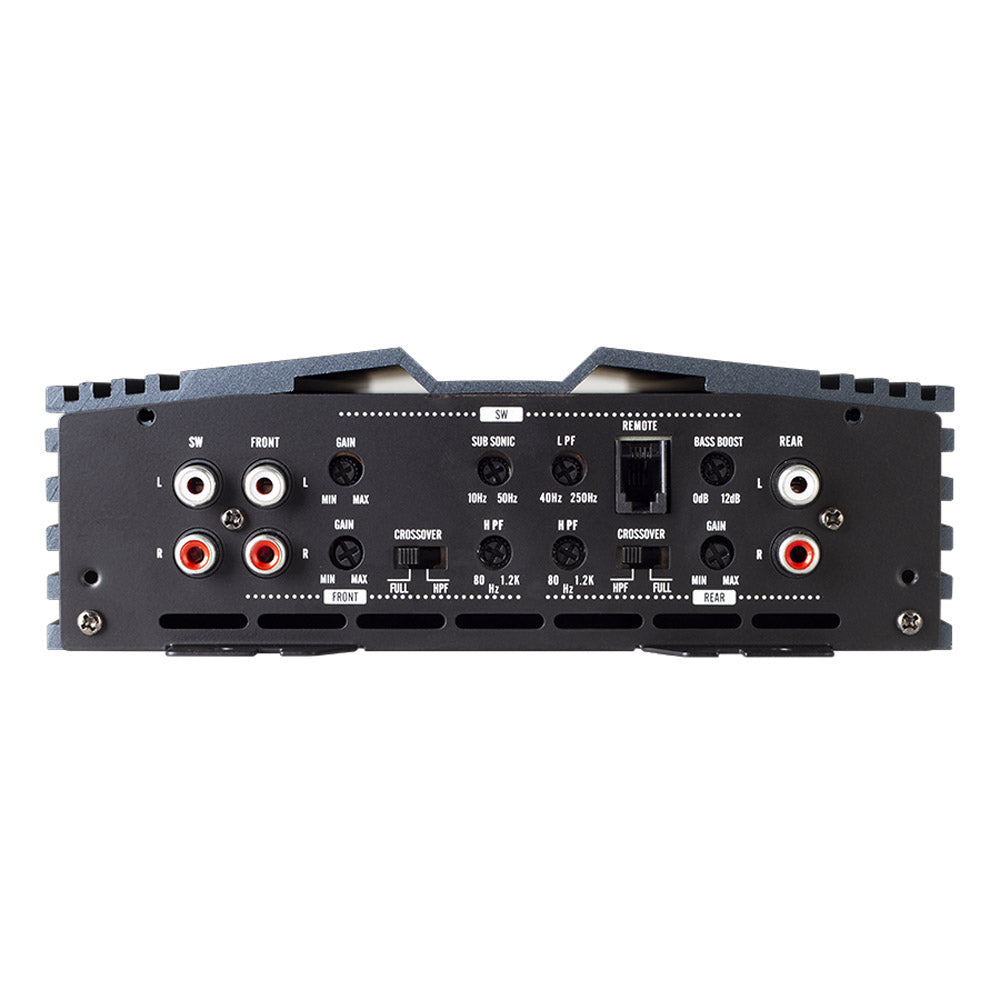

  • 200Mv-6V Low-Level RCA Signal Input + Thru-Pass Output

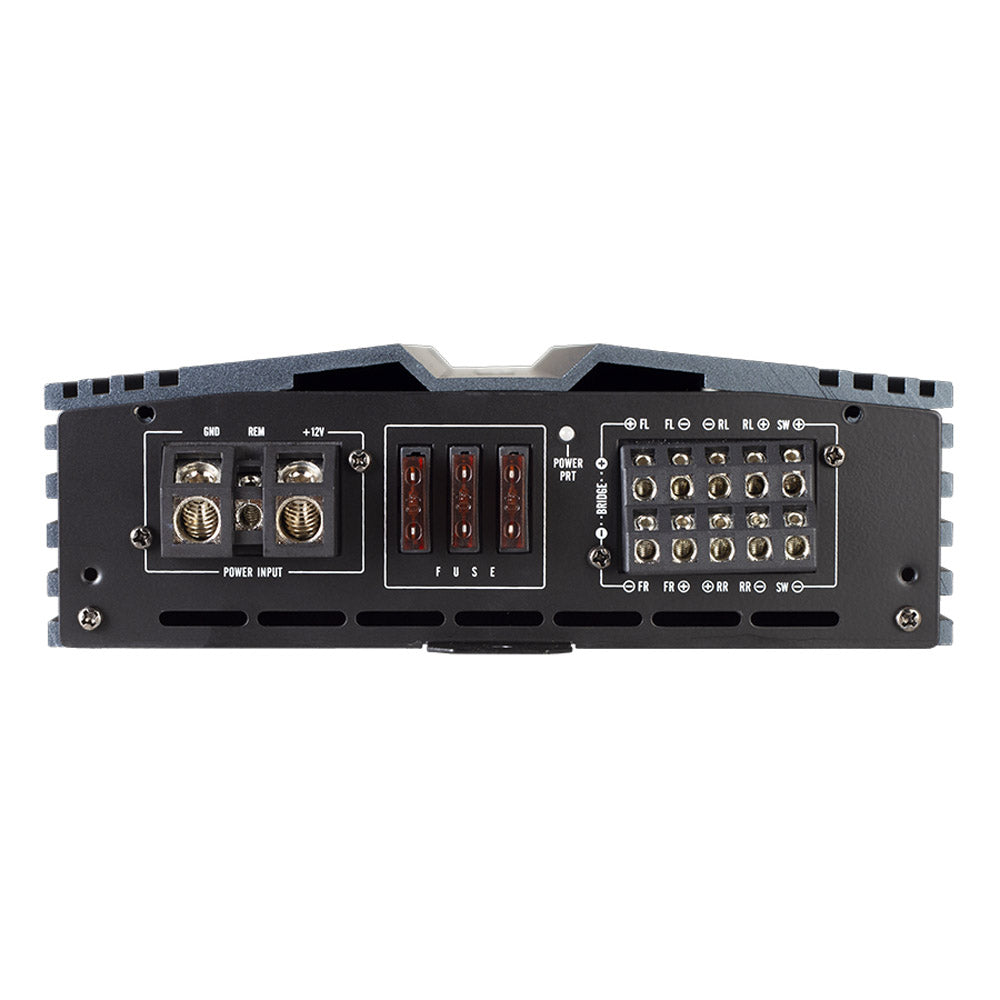

  • 4G Power Input Terminals & 12G Speaker Output Terminals
  • Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
  • 12dB Bass Boost Increases Low Octave Harmonics
  • 16.25"L x 7.25"W x 2.5"H

Specifications:

Power Specifications - Full Range Channels:

  • RMS Power @ 4 ohms: 140 watts x 4 channel
  • RMS Power @ 2 ohms: 200 watts x 4 channel
  • Bridged RMS Power: 440 watts x 2 channel

Power Specifications - Subwoofer Channel:

  • RMS Power @ 4 ohms: 300 watts x 1 channel
  • RMS Power @ 2 ohms: 500 watts x 1 channel

Amplifier Specifications:

  • Marine Certified: No
  • Amplifier Class: A/B
  • Number of Channels: 5
  • Total Peak Power Output: 3500 watts
  • Total RMS Power Output: 1380 watts
  • Maximum Input Gauge Size: 4 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: 4 ohms
  • THD at Rated RMS Power: >1%
  • Speaker Level Inputs: No
  • Preamp Outputs: 1 pair
  • Built-in Crossover: Low-Pass (LP), High-Pass (HP), Subsonic
  • Remote bass/level controller: No
  • Fan Cooled: No
  • Strappable: No
  • CEA-2031 Compliant: No
  • Amp Bluetooth Connectivity: No
  • Hi-Res Certified: No
Manufacturer :Power Acoustik
Model : OD53500
Weight :8.0 lb
SKU : OD5-3500
