Diamond Audio MICRO4V2 4-Channel MICROV2 Series Full Range Class D Car Amplifier (Refurbished)

Features:

• 4-Channel Full Range Class D Amplifier
• 80W x 4 @ 4Ω / 150W x 4 @ 2Ω / 300W x 2 Bridged

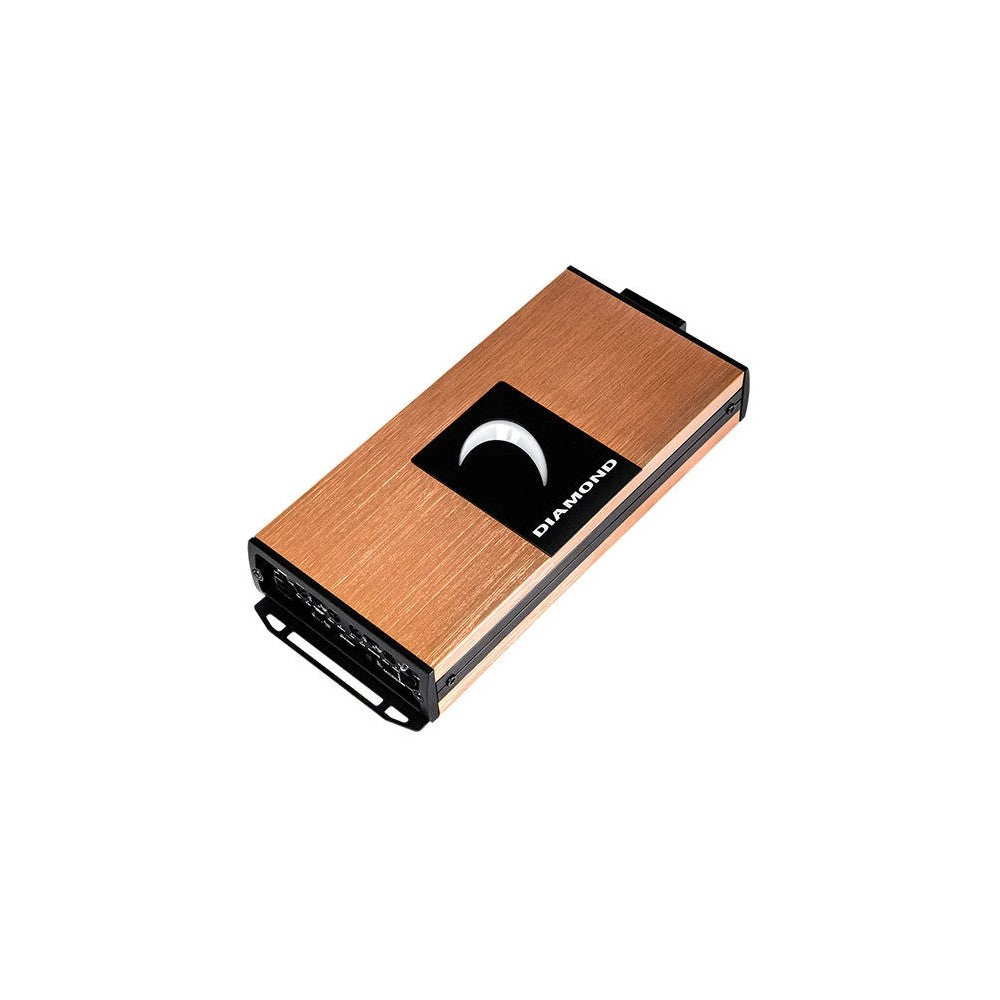

• Ultra-compact Aluminum Chassis Design
• Advanced Rollback & Thermal Protection
• Balanced Differential Inputs for Clean Signal
• Selectable LPF / FLAT / HPF Crossovers
• Selectable REM / VOX / DC Turn-on Modes
• 2CH / 4CH Input Flexibility
• Includes RCA Input & Speaker Output Harness Kits

Specifications

4-Channel MICROV2 Series Full Range Class-D Amplifier

Power Rating

• RMS Power (2 Ω) : 150 W X 4
• RMS Power (4 Ω) : 80 W X 4
• Bridged (mono 4 Ω) : 300 W X 2

Power Supply

• Power Supply : Full PWM
• Power Supply Threshold : 10.0VDC - 17.0VDC
• Idle Current : (0.7A)

Distortion

• THD 4 (1KHz @ 4Ω) : 0.50%
• S/N Ratio (A Weighted @ 1W) : -85dBA
• S/N Ratio (A Weighted @ FP) : -101.1dBA

Input Sensitivity

• Low Input Level : 200mV - 10.0V
• High Input Level : N/A

Input Impedance

• Low Input Level : 20 KΩ
• AUX Input Level : 20 KΩ

Output Stage

• Output Impedance : 0.018 Ω
• Damping Factor (50Hz @ 4Ω) : >70
• Bandwidth (-3dB) : 10Hz - 35Hz

Crossover (-12dB/Oct)

• Variable High-Pass : 40Hz - 400Hz
• Variable Low-Pass : 40Hz - 400Hz
• Variable Sub-Sonic : N/A

Fuse Ratings

• ATC : 40 A

Dimensions

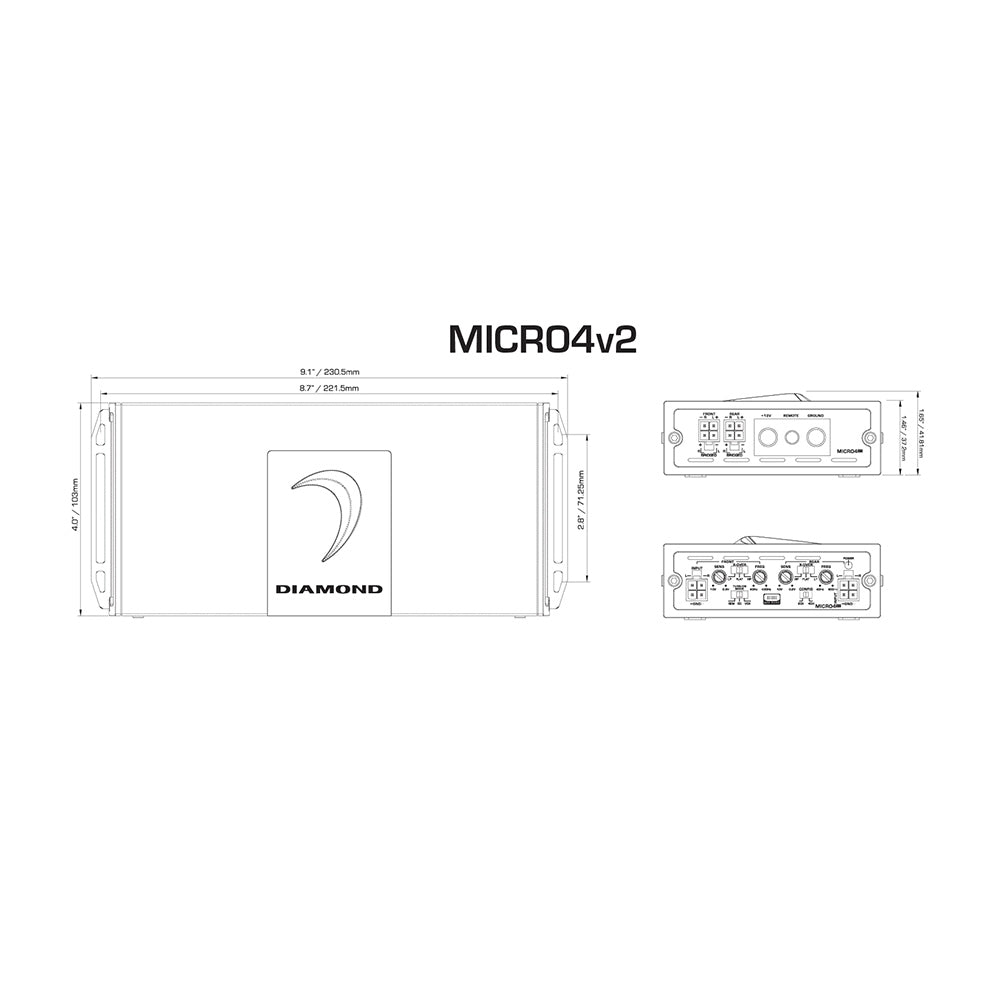

• L x W x H : 9.07" x 4.0" x 1.46" (230.5 x 103 x 37.2)mm

THREE MONTHS LIMITED WARRANTY
