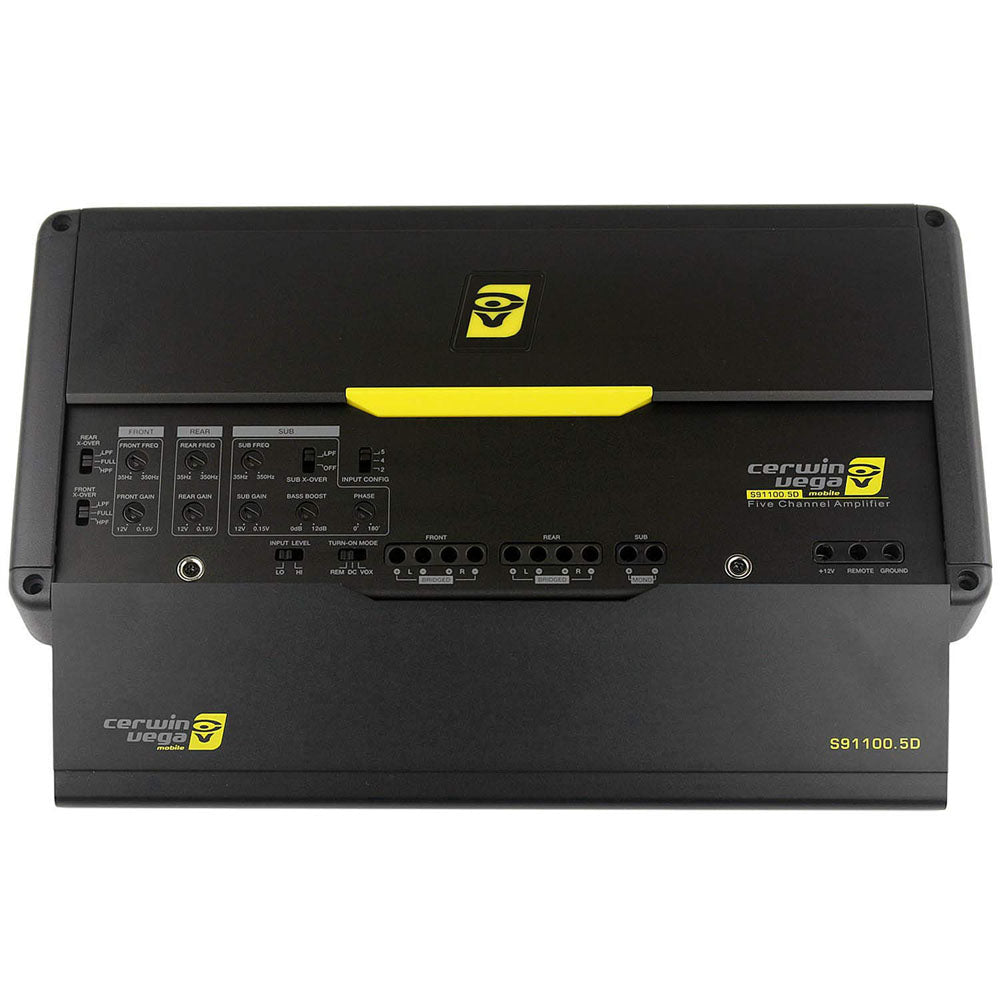

Cerwin Vega S91100.5D Stroker Series 1000 Watt 5-Channel Full Range Class-D Car Amplifier

Cerwin Vega S91100.5D

The Cerwin-Vega S91100.5D Stroker 5-Channel 1000W Full Range Class-D Amplifier, a high-performance amplifier designed for serious car audio enthusiasts and SPL competitors who demand extreme output and precision sound. Part of the legendary Cerwin-Vega Stroker Pro amplifier series, this powerhouse delivers the muscle needed to drive an entire audio system from a single amplifier.

The S91100.5D 5-channel amplifier is engineered to power front speakers, rear speakers, and a subwoofer simultaneously, making it the ideal centerpiece for high-performance car audio systems. With 1000 watts of total system power, this amplifier provides the dynamic output required to drive demanding speakers and subwoofers with authority, clarity, and precision.

Built using advanced full-range Class-D amplifier technology, the S91100.5D delivers high efficiency, powerful output, and reduced heat generation. This design ensures maximum performance while maintaining excellent energy efficiency, allowing your system to produce louder sound with less strain on your vehicle’s electrical system.

To maintain reliable operation during extreme audio performance, the amplifier features massive aluminum heatsinks that efficiently dissipate heat during high-output playback. Combined with heavy-duty 1/0 gauge power connections, the amplifier is capable of handling high current loads required by powerful sound systems.

The 5-channel configuration allows installers to build a complete audio system with one amplifier, simplifying installation while maximizing system performance. Whether powering a full speaker setup and subwoofer or building a competition-ready audio system, the S91100.5D provides exceptional flexibility and output.

Features:

• Stroker Pro Series 5-Channel Class-D Amplifier
• 1000 Watts Total System Power Output
• Full-Range Class-D Design for High Efficiency and Performance
• Powers Front Speakers, Rear Speakers, and Subwoofer from One Amplifier
• Massive Aluminum Heatsink for Superior Heat Dissipation

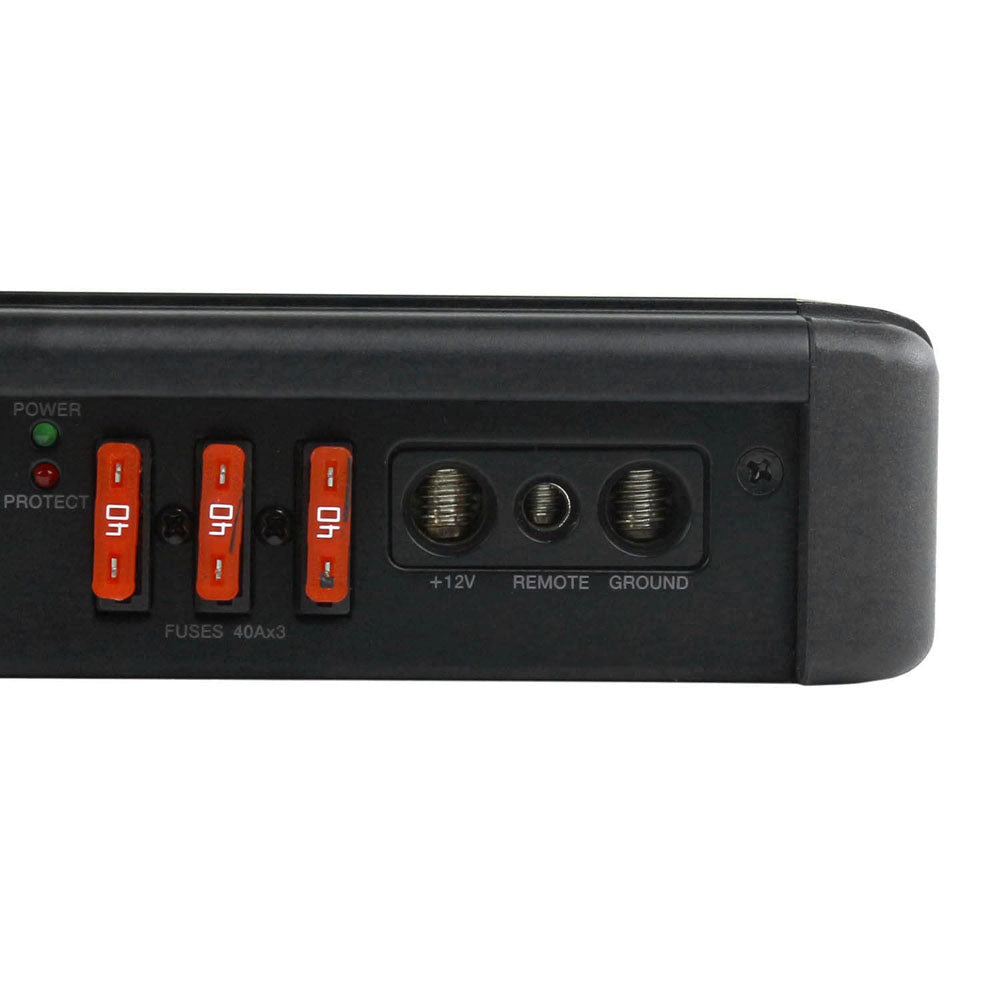

• Heavy-Duty 1/0 Gauge Power Connections for High Current Flow
• Designed for High-Performance Car Audio and SPL Systems

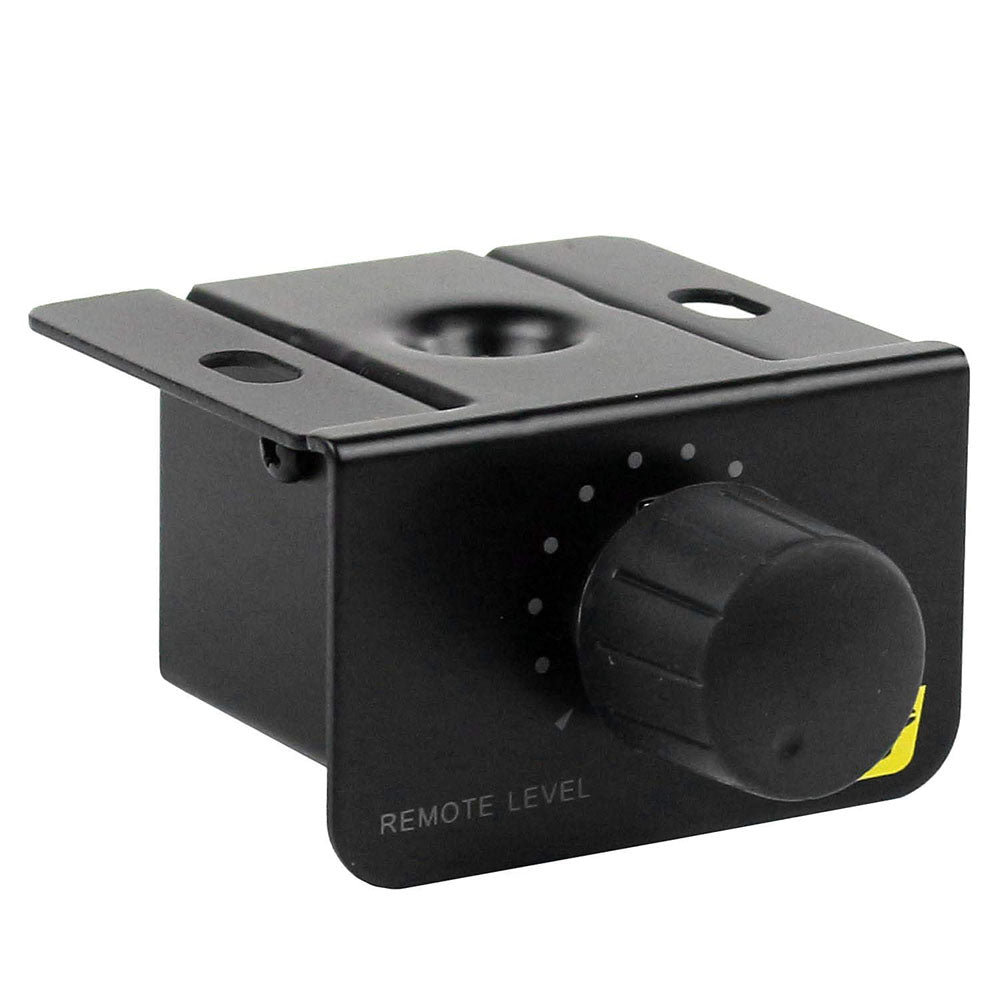

• Remote Bass Knob Included
• Input Configuration Switch on 4 and 5 Channel Amplifiers
• Lighted LED Logo
• Bass Remote can be Disassembled and Installed In-dash
• Variable Phase Adjustment
• Handles High and Low Level Input Up to 12V
• Switched Speaker Level Turn On Options (VOX / DC Offset / REM)

Specifications:

Stroker Series 5-Channel Full Range Class-D Amplifier

Power Rating

• RMS Power (@ 2Ω) : 150 Watt x 4 Channel / 250 Watt x 1 Channel
• RMS Power (@ 4Ω) : 90 Watt x 4 Channel / 150 Watt x 2 Channel
• RMS Power Bridged (Mono 4Ω) : 300 Watt x 2 Channel / 500 Watt x 1 Channel
• Frequency Response (Hz) : 35Hz - 350Hz

Power Supply

• Power Supply : Full PWM
• Power Supply Threshold : 10.0VDC - 17.0VDC
• Idle Current : 0.7A

Distortion

• THD 4 (1KHz @ 4Ω) : 0.03%
• S/N Ratio (A Weighted @ 1W) : -76.7dBA
• S/N Ratio (A Weighted @ FP) : -96.7dBA

Input Sensitivity

• Low Input Level : 200mV - 10.0V
• High Input Level : Up to 25W RMS

Input Impedance

• Low Input Level : 22KΩ
• High Input Level : N/A

Output Stage

• Output Impedance : 0.051Ω
• Damping Factor (50Hz @ 4Ω) : >70
• Bandwidth (-3dB) : 10Hz - 350Hz

Crossover (-12dB/Oct)

• Variable High-Pass : 35Hz - 350Hz
• Variable Low-Pass : 35Hz - 350Hz
• Variable Sub-Sonic : N/A

Fuse Ratings

• ATC : 3 x 30A

Dimensions

• L x W x H : 14.1" x 7.25" x 2.0" (358.14 x 184.2 x 50.8)mm
