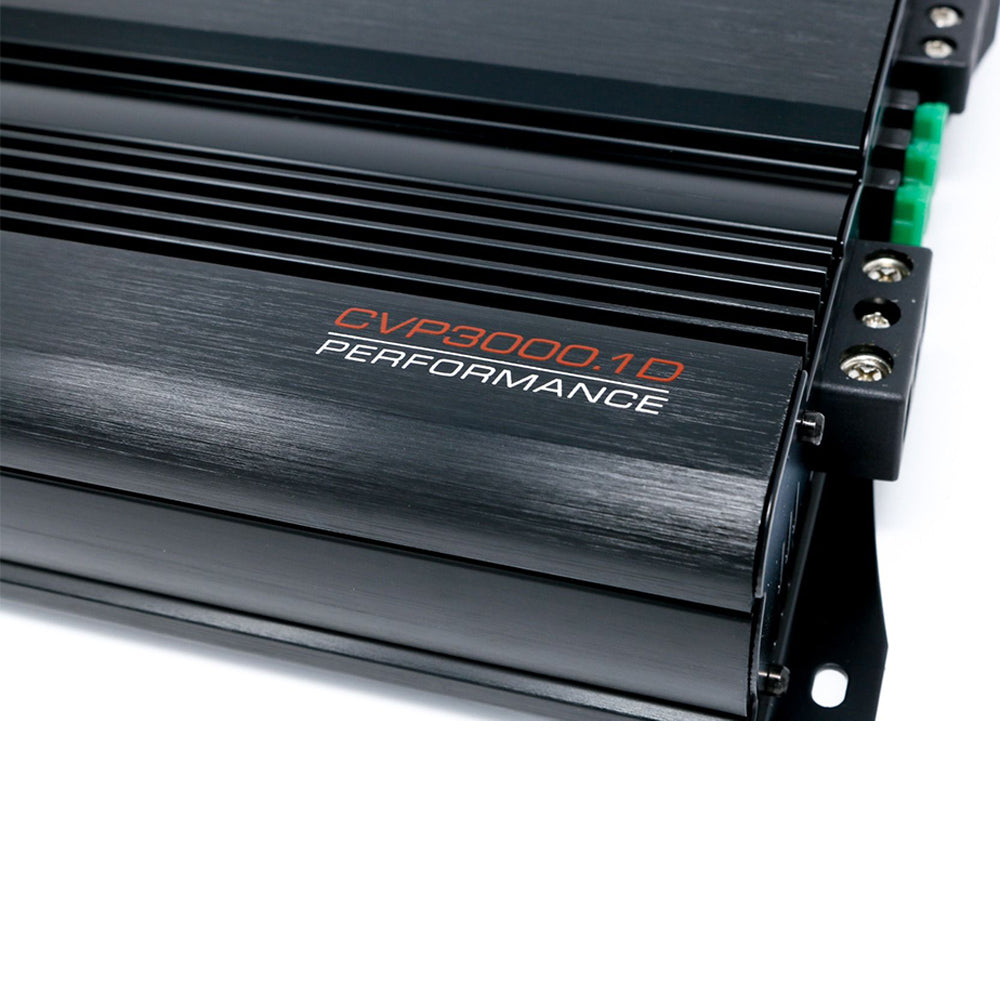

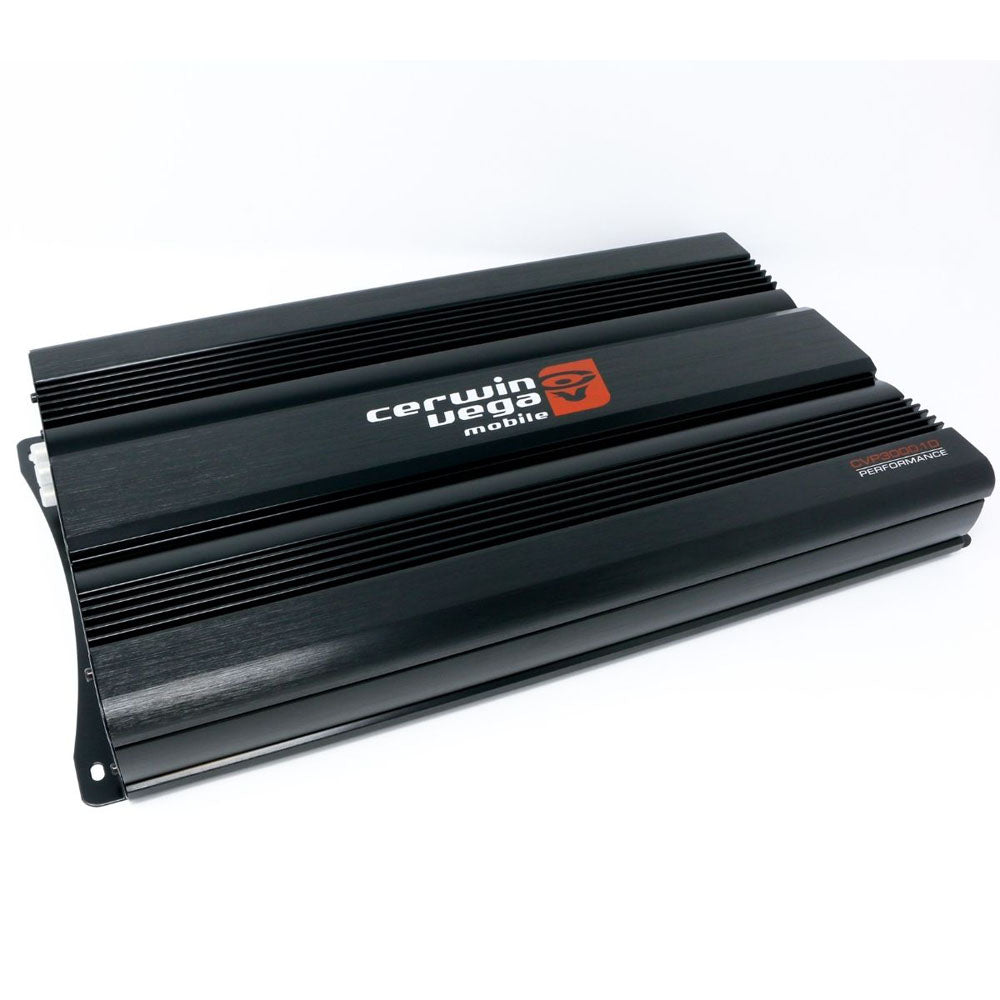

Cerwin Vega CVP3000.1D 1-Channel CVP Series Class A/B Monoblock Car Amplifier (Refurbished)

Features:

• 1-Channel Monoblock Class-D Car Audio Amplifier
• Designed for Powerful Subwoofer Performance
• High-efficiency Design for Strong Output and Reduced Heat
• Clean, Distortion-free Bass Reproduction
• Rugged Construction for Long-term Reliability
• Ideal for High-output Subwoofer Systems
• LED Power/Protection Indicator
• Bass Boost : 0dB - 12dB

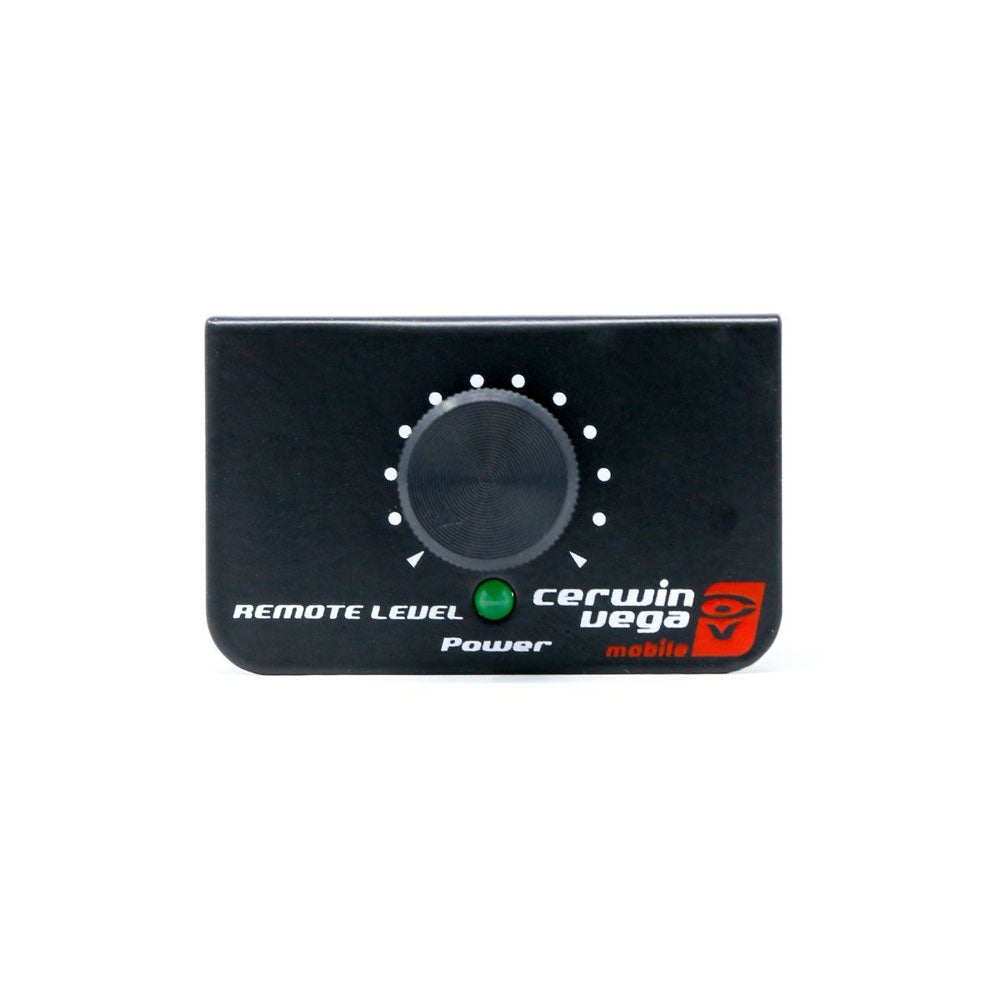

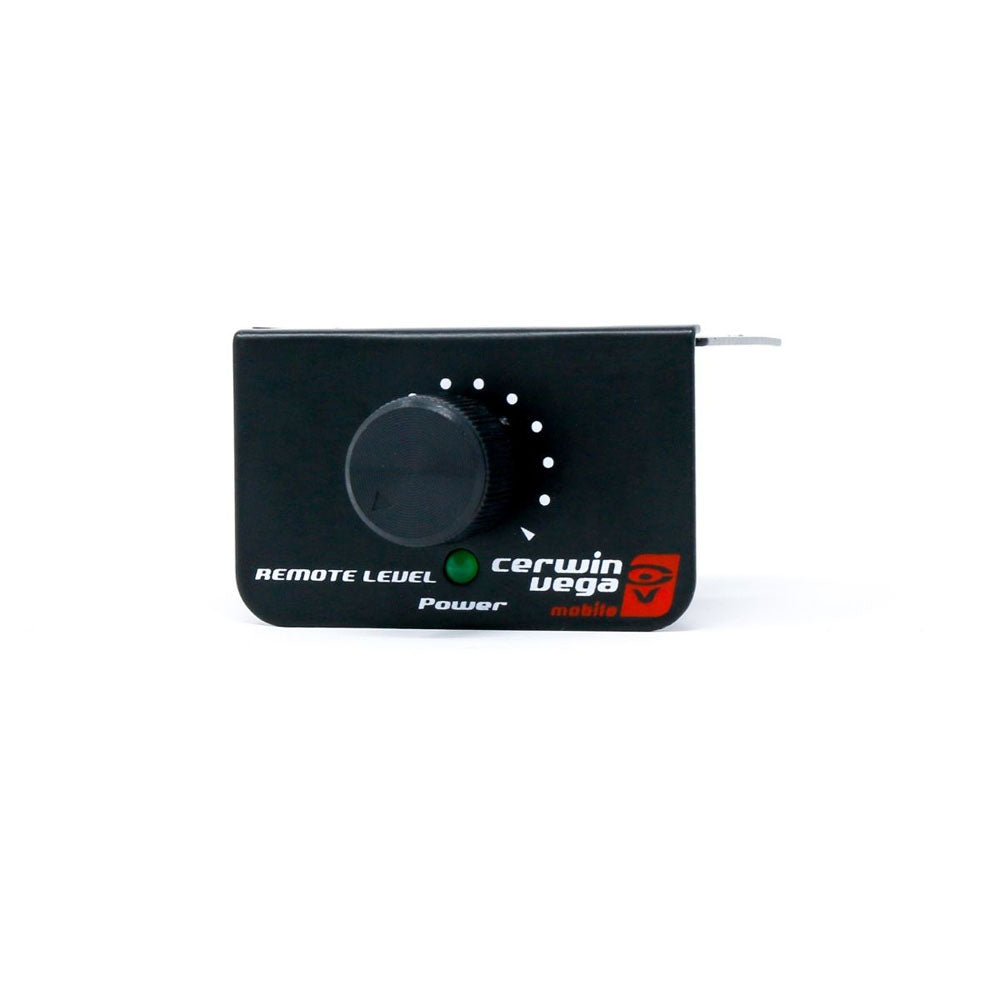

• Bass Volume Control Included

Specifications:

CVP Series 1-Channel Class A/B Monoblock Amplifier

Power Rating

• RMS Power (@ 2Ω) : 600 Watt x 1 Channel
• RMS Power (@ 4Ω) : 370 Watt x 1 Channel
• Frequency Response (Hz) : 40Hz - 400Hz

Power Supply

• Power Supply : Full PWM
• Power Supply Threshold : 10.0VDC - 16.0VDC
• Idle Current : 0.8A

Distortion

• THD (1KHz @ 4Ω) : <1%
• S/N Ratio (A Weighted @1W) : >90 dBA
• S/N Ratio (A Weighted @FP) : >105 dBA

Input Sensitivity

• Low Input Level : 200mV - 6.0V
• High Input Level : 200mV - 6.0V

Input Impedance

• Low Input Level : 20KΩ
• High Input Level : N/A

Output Stage

• Output Impedance : 2Ω / 4Ω
• Damping Factor (50Hz @ 4Ω) : 100
• Bandwidth (-3dB) : 10Hz - 32KHz

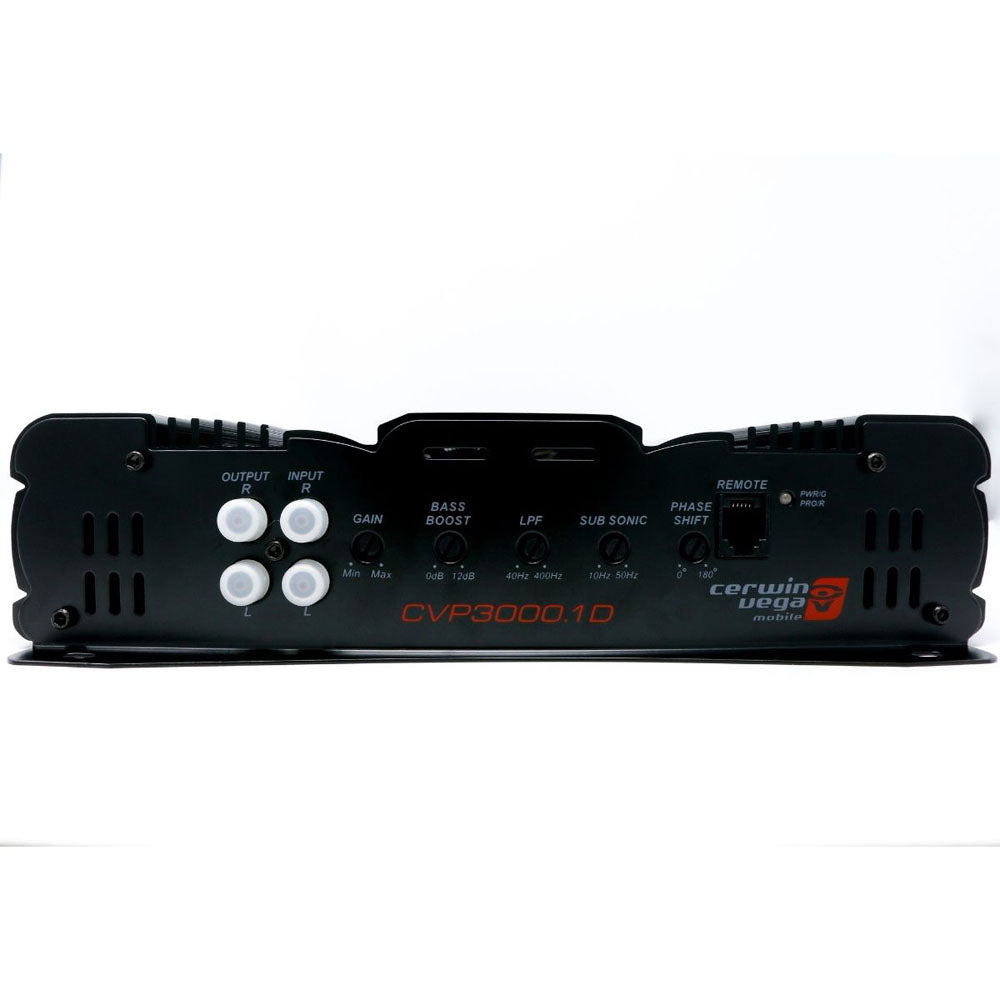

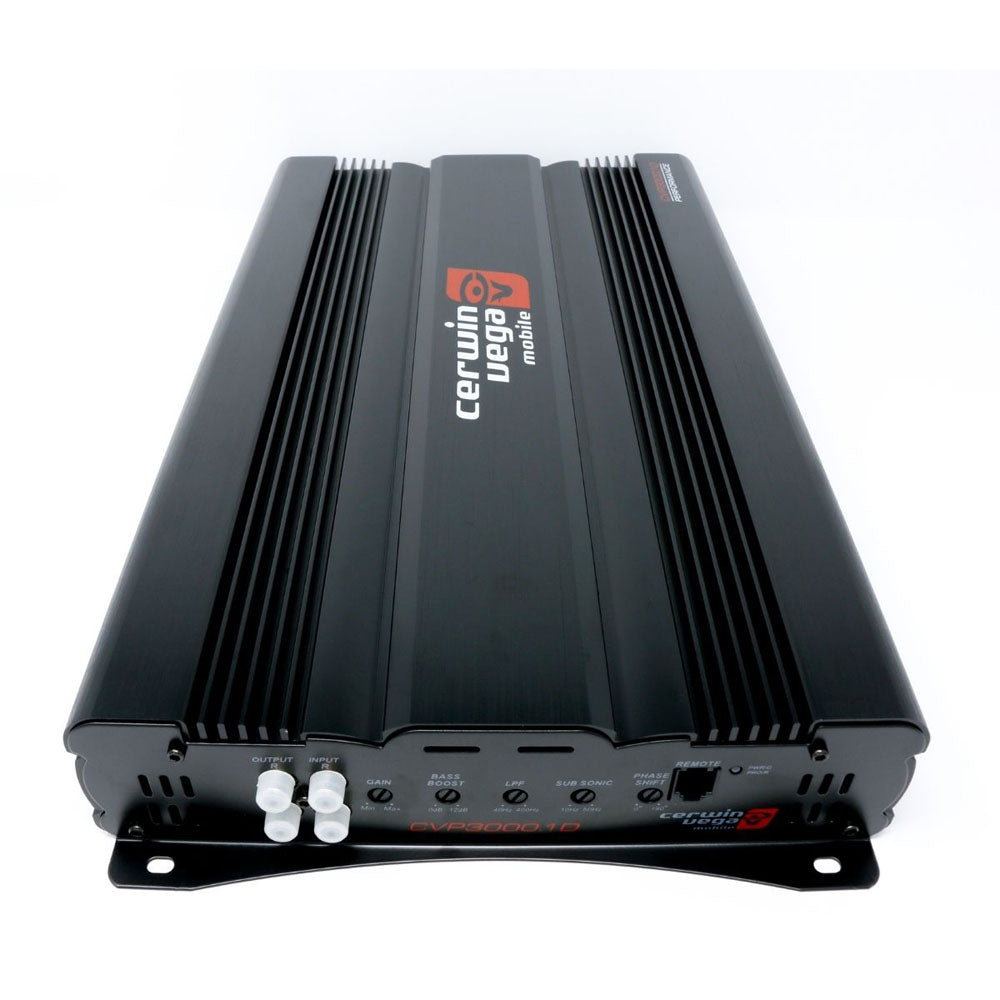

Crossover (-12dB/Oct)

• Variable High-Pass : N/A
• Variable Low-Pass : 40Hz - 400Hz
• Variable Sub-Sonic : 10Hz - 50Hz

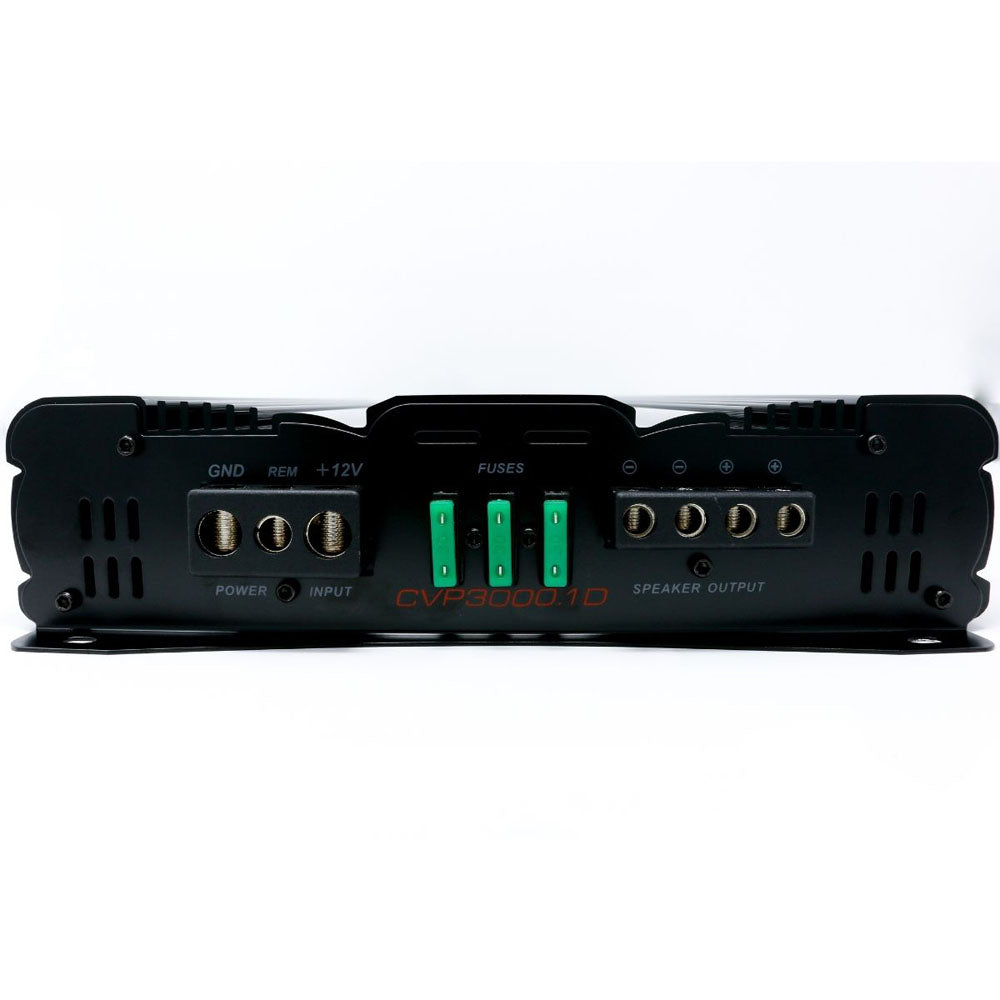

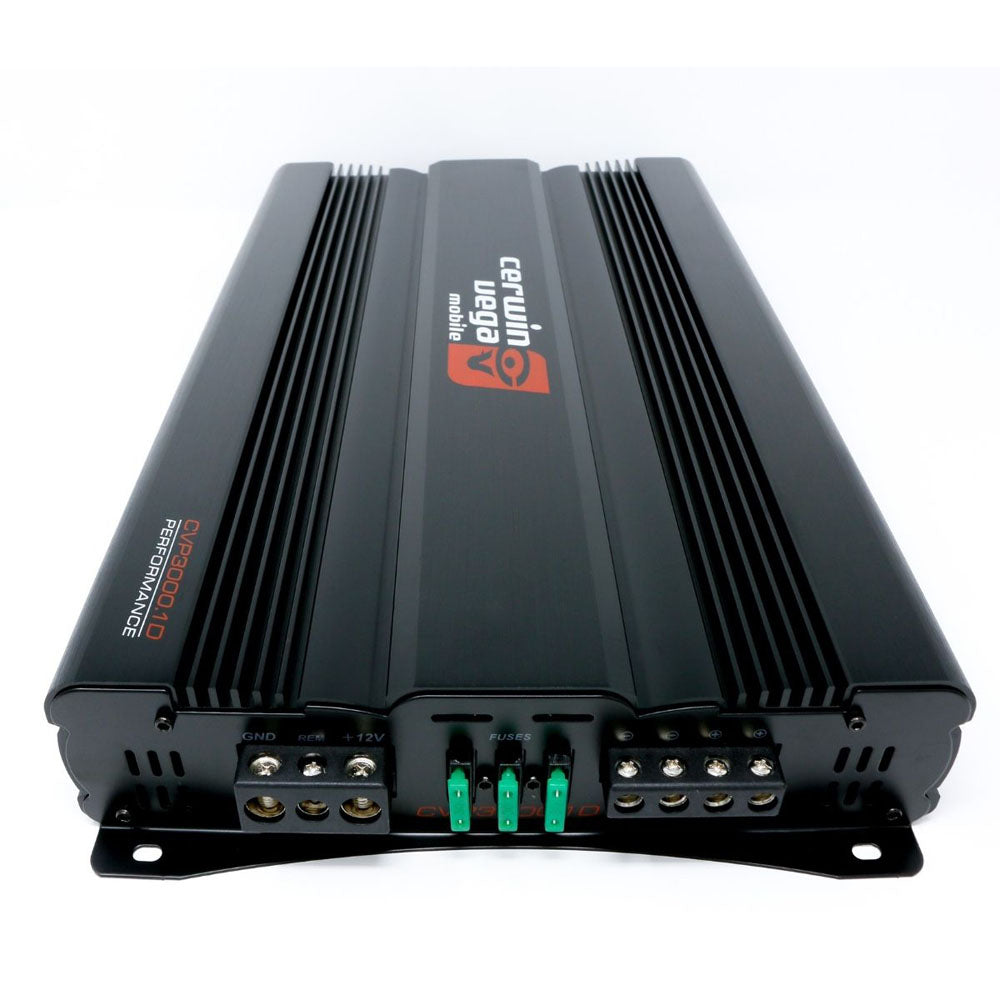

Fuse Ratings

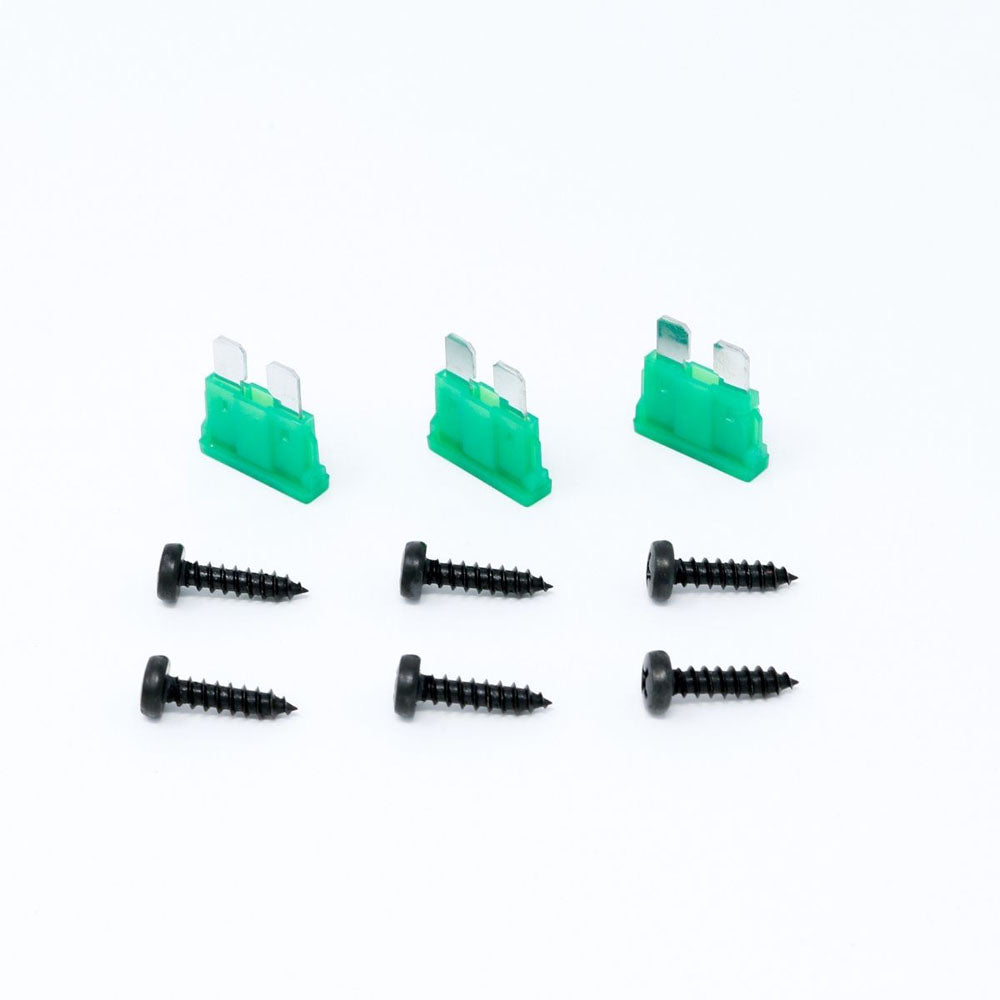

• ATC : 30A x 3

Dimensions

• L x W x H : 15.76" x 9.3" x 2.25" (400 x 238 x 57)mm

THREE MONTHS LIMITED WARRANTY
