Alpine S-SB10V-PWR Halo S-Series Subwoofer Power Package (S-SB10V + KTA-200M)
Alpine S-SB10V-PWR Halo S-Series Subwoofer Power Package (S-SB10V + KTA-200M)
Alpine S-SB10V-PWR Halo S-Series Subwoofer Power Package (S-SB10V + KTA-200M)
Alpine S-SB10V-PWR Halo S-Series Subwoofer Power Package (S-SB10V + KTA-200M)
Alpine S-SB10V-PWR Halo S-Series Subwoofer Power Package (S-SB10V + KTA-200M)
Alpine S-SB10V-PWR Halo S-Series Subwoofer Power Package (S-SB10V + KTA-200M)
Alpine S-SB10V-PWR Halo S-Series Subwoofer Power Package (S-SB10V + KTA-200M)
Alpine S-SB10V-PWR Halo S-Series Subwoofer Power Package (S-SB10V + KTA-200M)
Alpine

Alpine S-SB10V-PWR Halo S-Series Subwoofer Power Package (S-SB10V + KTA-200M)

$599.90 0 items left

Sold out

BRAND: Alpine SKU: S-SB10V-PWR PRODUCT ID: 7435239751861 SHIPPING WEIGHT: 25.0 lb

2-6 DAYS DELIVERY

100% ORIGINAL AND QUALITY

1 YEAR MANUFACTURER WARRANTY

  • Description
  • Owner's Manual
  • Reviews

Features:

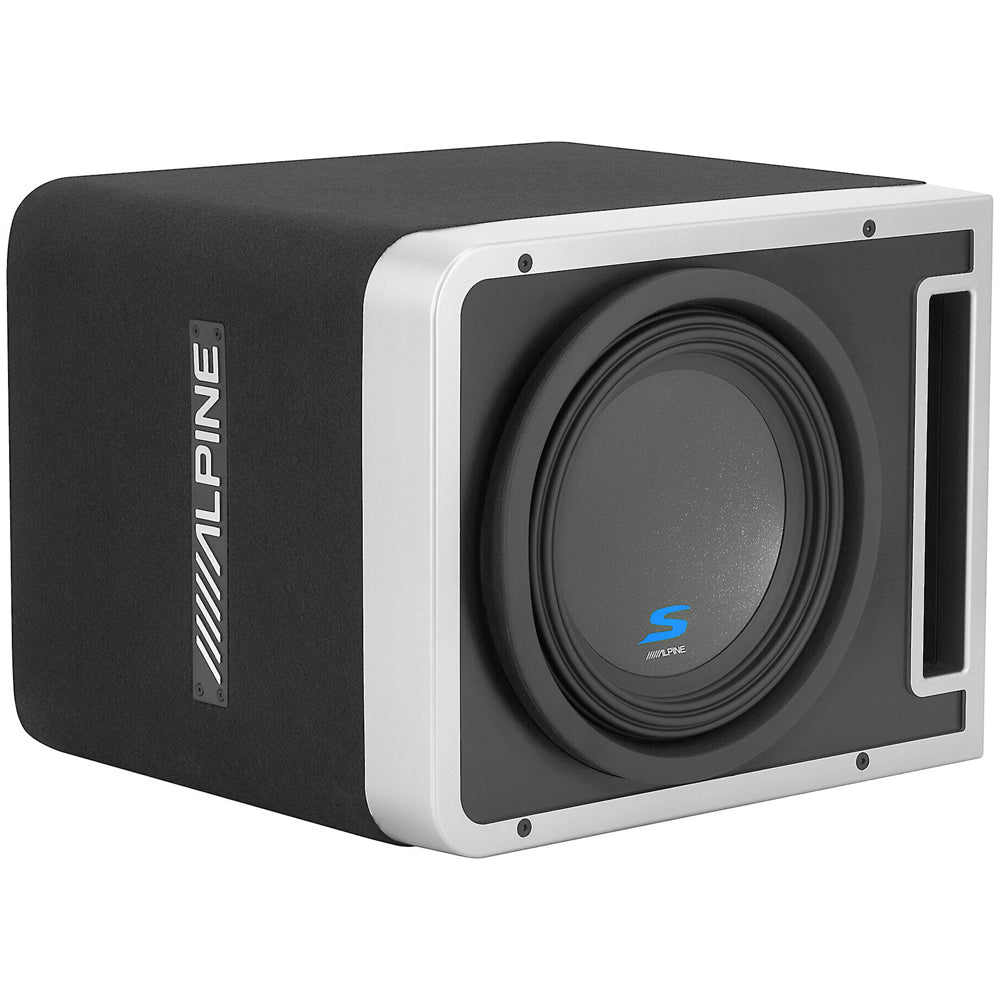

S-SB10V Features:

  • Groundbreaking Alpine Halo Design
  • ProLink™ ported enclosure design
  • Optimal Sound Performance
  • 600W RMS Power Handling
  • Includes preloaded S-W10D4 10” S-Series subwoofer
  • CARB compliant 3/4-inch MDF construction
  • Premium black carpet
  • Silver Alpine embossed side logo badge
  • Brushed aluminum finished metallic front baffle

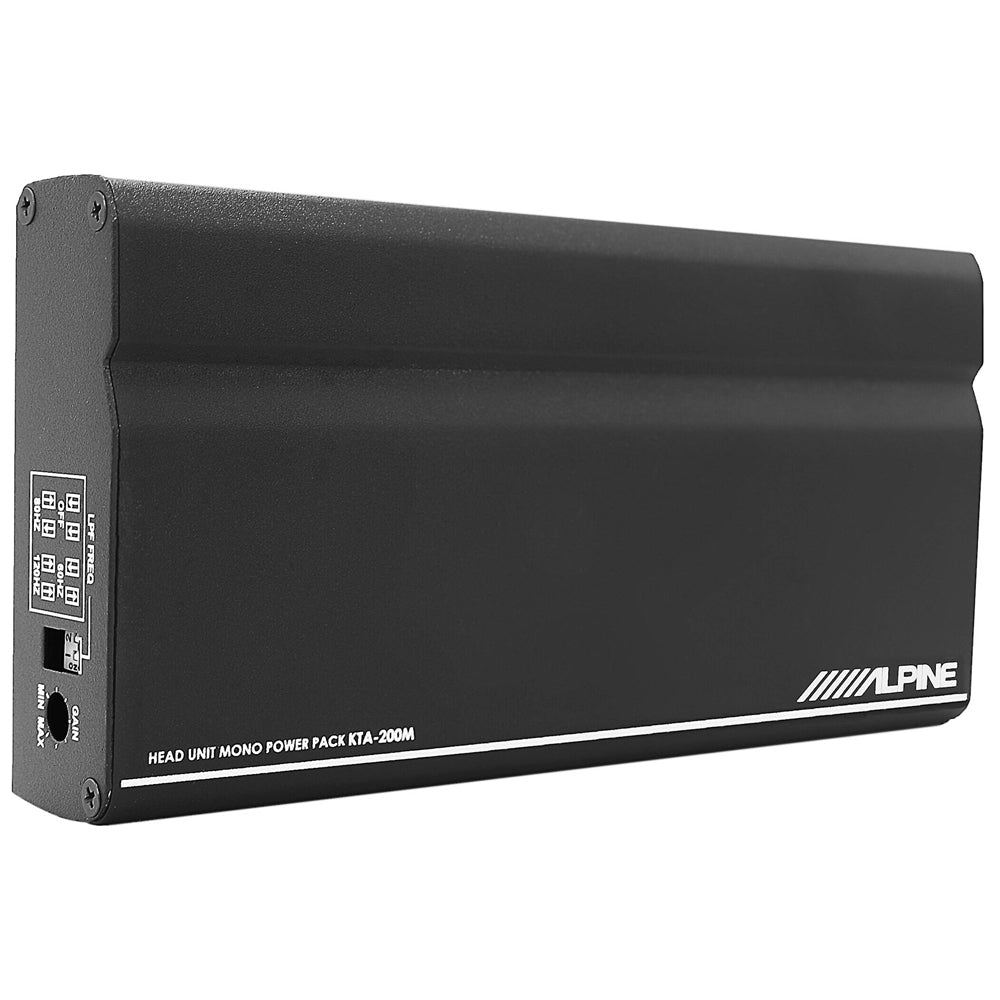

KTA-200M Features:

  • Alpine’s Exclusive Dynamic Peak Power (DPP) Technology  
  • Remote Bass-Knob ready with the RUX-KNOB.2 (sold separately)
  • PowerStack™ capable with the Alpine iLX-W650 (sold separately)

Specifications:

S-SB10V Specifications:

  • Dimensions: 16" x 12.6825" x 14.5"
  • Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with S-A60M)
  • 12 Gauge OFC Speaker Box Wire
  • Binding Post Terminal Cup
  • Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
  • 2Ω Impedance
  • Frequency Response: 28-200Hz
  • Vented Enclosure Tuning Frequency: 36Hz
  • Sensitivity 84dB

KTA-200M Specifications:

  • Dimensions: 7" x 1.5" x 3.5"
  • Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP) 
  • 200W x 1 RMS (4Ω, 14.4V, ≤1% THD+N) 
  • 200W x 1 RMS (2Ω, 14.4V, ≤1% THD+N) 
  • 400W x 1 DPP (4Ω, 14.4V, ≤1% THD+N) 
  • S/N >80dB (ref. 1W into 4Ω) 
  • THD+N ≤0.1% (ref. 10W into 4Ω) 
  • Single-side 22-pin connector 
  • RCA inputs (Low range=0.2-4V) 
  • Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable) 
