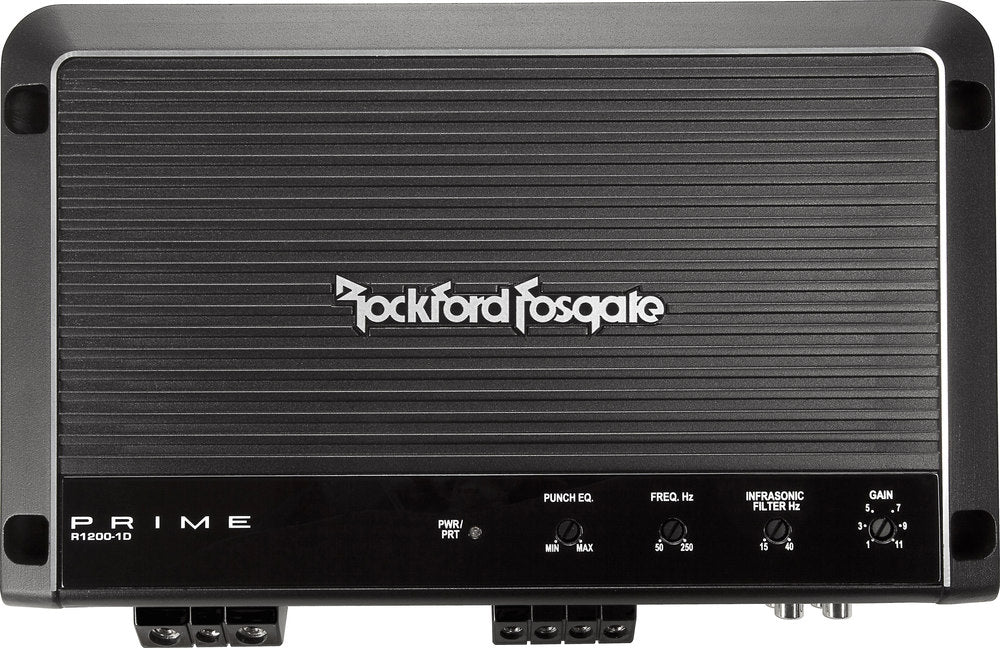

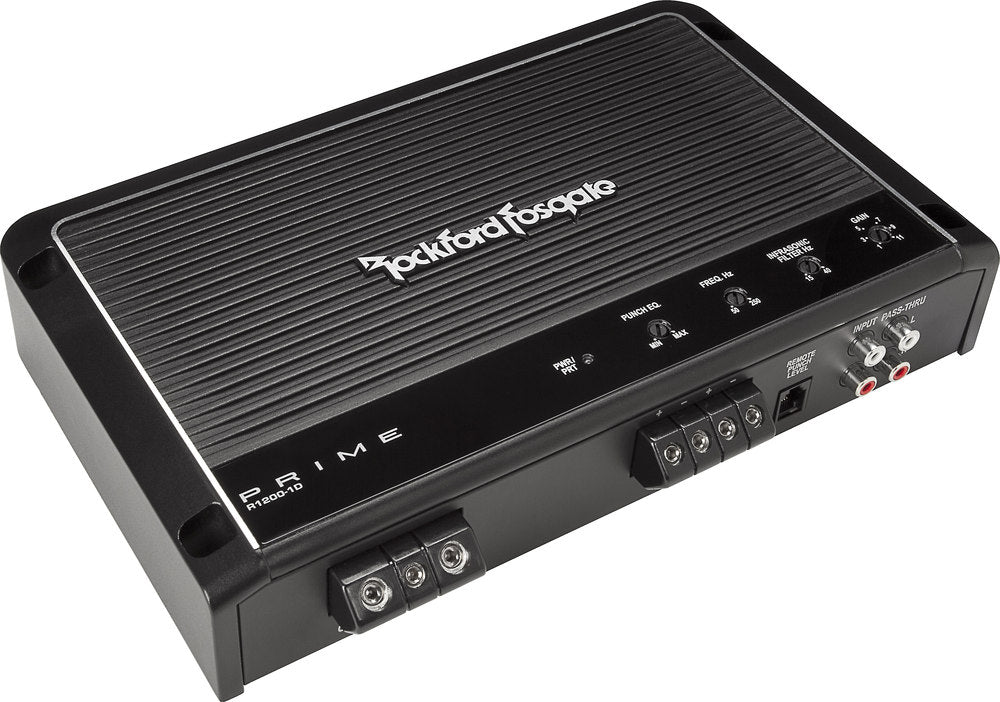

Rockford Fosgate R1200-1D

Features:

• Prime Series Monoblock Class D Car Amplifier
• RMS Power Rating:
  • 4 ohms: 400 watts x 1 chan.
  • 2 ohms: 800 watts x 1 chan.
  • 1 ohm: 1200 watts x 1 chan.
• Total power output: 1200 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply
• Remote Punch level control included
• LED power (blue) and protect (red) indicators
• Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
• Soft Start Turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• Heavy duty cast aluminum convection cooled heatsink for extreme heat dissipation
• Nickel-plated RCA level block inputs
• Nickel-plated screw terminals
• Input sensitivity:
  • Low level: 150mV-5V
• Variable low-pass filter (50-250 Hz, 12 dB/octave)
• Infrasonic filter (15-40 Hz, 12 dB/octave)
• Damping factor: >200
• CEA-2006 compliant amplifier
• Frequency response: 20-250 Hz
• 100A In-line fuse recommended
• Dimensions: 6-3/4 Inch L x 11-1/16 Inch W x 2 Inch H
• 2-gauge power and ground wiring is recommended for installation.

Specifications:

• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total RMS Power Output: 1200 watts
• Maximum Input Gauge Size: 1/0 AWG
• Minimum Impedance Unbridged: 1 ohms
• Minimum Impedance Bridged: Not Bridgeable
• THD at Rated RMS Power: 1.0%
• Speaker Level Inputs: No
• Preamp Outputs: 1 pair
• Built-in Crossover: Low-pass (LP)
• High-Pass Crossover Frequency: 50 - 250 Hz
• Subsonic Filter: 15 - 40 Hz
• Signal-to-Noise Ratio: 100 dB
• Bass Boost: 0 - 18 dB
• Bass/Gain Remote: Yes
• Fan Cooled: No
• Fuse Rating: 100A In-Line Fuse Required
• CEA-2006 Compliant: Yes
