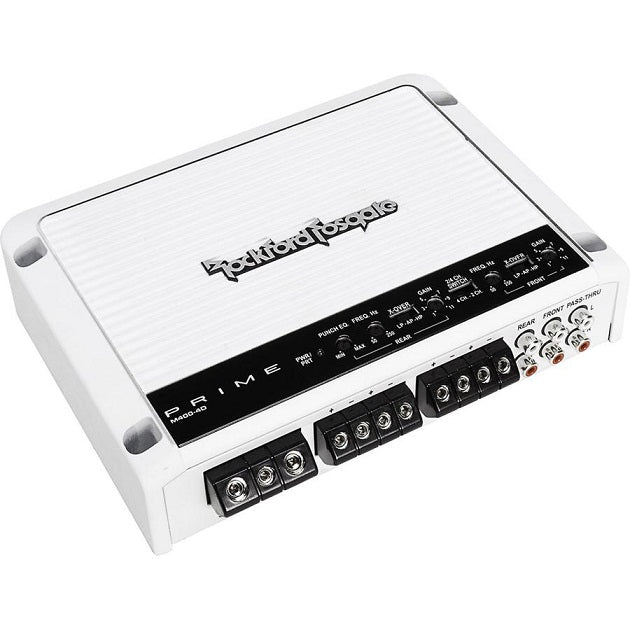

Rockford Fosgate M400-4D

CaraudioCO
SKU: M400-4D
Availability: 5 in stock
$299.99
Hurry, there are only 5 item(s) left!

QTY:

Features:

  • 4-Channel Full Range Class D Marine Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 4 chan.
    • 2 ohms: 100 watts x 4 chan.
    • Bridged, 4 ohms: 200 watts x 2 chan.
  • UV resistant and Salt-fog marine protection
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 channel operation
  • Preamp RCA output to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • High-density split-dome convection heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (50-500 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • 4 gauge power and ground wiring is required for installation.
  • Dimensions: 6-7/10 Inch W x 9-1/10 Inch L x 2 Inch H

Specifications:

Power Specifications - Full Range Channels:

  • RMS Power @ 4 ohms: 75 watts x 4 channels
  • RMS Power @ 2 ohms: 100 watts x 4 channels
  • Bridged RMS Power: 200 watts x 2 channels

Amplifier Specifications:

  • Amplifier Series: Prime (Rockford Fosgate)
  • Marine Certified: Yes
  • Amplifier Class: D
  • Number of Channels: 4
  • Total RMS Power Output: 400 watts
  • Maximum Input Gauge Size: 4 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: 4 ohms
  • THD at Rated RMS Power: <1.0%
  • Speaker Level Inputs: No
  • Preamp Outputs: 1 pair
  • Built-in Crossover: Low-Pass (LP), High-Pass (HP), Full (AP)
  • High-Pass Crossover Frequency: 50 - 250 Hz
  • Low-Pass Crossover Frequency: 50 - 250 Hz
  • Bass Boost: 0 - 18 dB
  • Bass/Gain Remote: No
  • Fan Cooled: No
  • Fuse Rating: 40A X 1 In-Line Fuse Recommended
  • CEA-2006 Compliant: Yes
