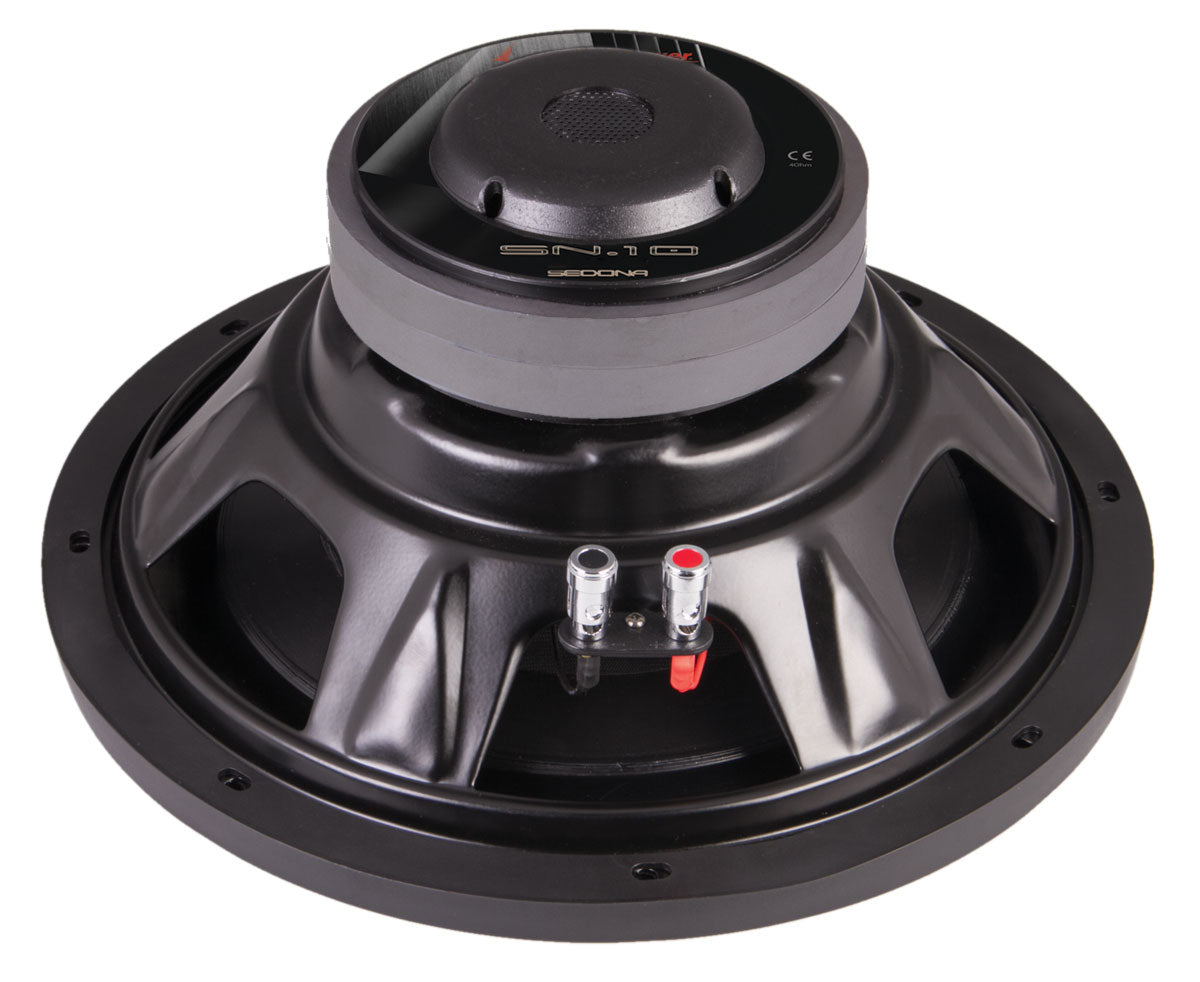

Precision Power SN.10

Precision Power
SKU: SN10
Availability: 2 in stock
$36.99
Hurry, there are only 2 item(s) left!

QTY:

Features:

  • 10 Inch Single 4 Ohm Sedona Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 360 watts
  • Impedance: 4 ohms
  • Polypropylene cone
  • Rubber surround
  • Poly-cotton suspension spiders
  • Polly conical cone dust-cap
  • Nickel plated 8 gauge compression terminals
  • Woven tinsle leads
  • 2 Inch 4-Layer Voice coil on aluminum former
  • Die cast aluminum frame
  • Vented T-Yoke back-plate
  • Resonance Frequency (Fs): 34 Hz
  • Top-mount depth: 4-1/2 Inch
  • Sensitivity: 88dB

Specifications:

Subwoofer Specifications:

  • Subwoofer Series: Sedona
  • Subwoofer Size: 10 Inch
  • Peak Power Handling: 900 watts
  • RMS Power Handling: 360 watts
  • Voice Coil(s): Single
  • Impedance (Per Voice Coil): 4 ohms
  • Voice Coil Diameter: 2 Inch
  • Sensitivity: 88 dB
  • Subwoofer Design: Round / Circle
  • Main Cone Color: Black
  • Woofer Composition: Polypropylene
  • Woofer Surround: Rubber
  • Magnet Structure: Single Stacked
  • Subwoofer Grille: No
  • Re-Cone Kit Available: No

Enclosure Specifications:

  • Recommended Enclosure Type: Ported / Sealed / Vented
  • Minimum Sealed Box Volume: 0.75 cubic feet
  • Optimum Sealed Box Volume: 1.00 cubic feet
  • Minimum Ported Box Volume: 1.00 cubic feet
  • Optimum Ported Box Volume: 1.50 cubic feet
  • Top-Mount Depth: 4-1/2 Inch
  • Cutout Diameter: 9-15/16 Inch
  • Shallow Mount Installation: No

Electromechanical Parameters:

  • Free-Air Resonance (Fs): 34 Hz
  • Equivalent Compliance (Vas): 121.5395 liters
  • Total Speaker Q Value (Qts): 0.7565
  • Electrical Q Value (Qes): 0.9681
  • Electrical Resistance of Voice Coil (Re): 4.6348 ohms
  • Mechanical Q Value (Qms): 3.4605
