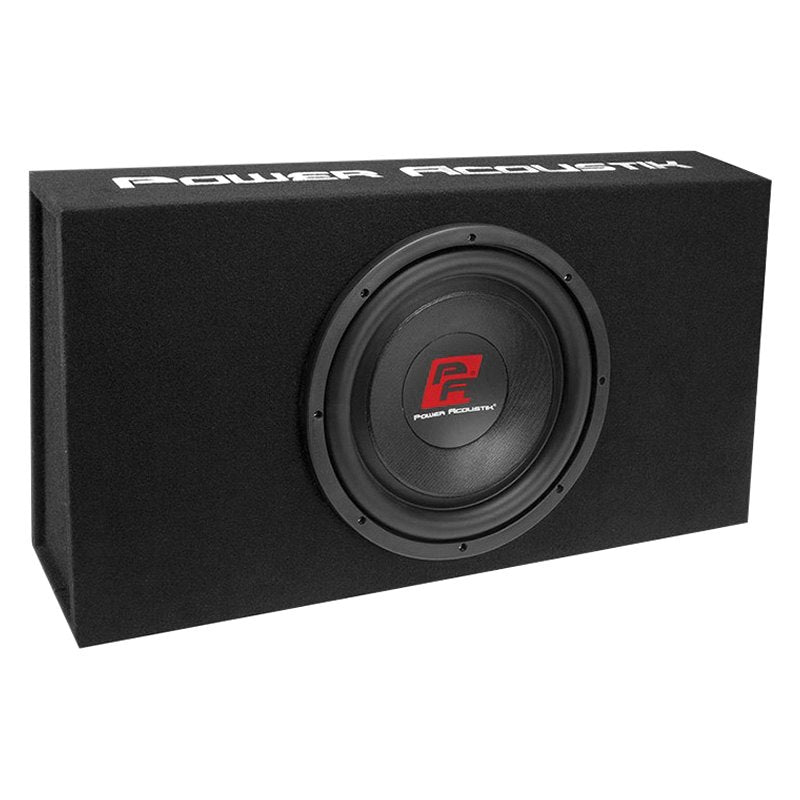

Power Acoustik THIN-12BXA

Features:

General Features:

• 650W Max Single 12 Inch Sealed Subwoofer Enclosure with Built in Amplifier
• Power Handling:
  • Peak: 650W Total
  • RMS: 325W Total
• Final Impedance: 3 ohms
• Preloaded with single 12 Inch Subwoofer
• Sealed enclosure with carpet finish
• Enclosure Dimensions: 29.75 Inch L x 14.5 Inch H x 5.75 Inch D

Subwoofer Features:

• Injection Molded Polypropylene Cone
• NBR Rubber Surround
• Quick Disconnect Terminals
• Steel Basket
• Frequency Response: 20 - 150 Hz
• Sensitivity: 85.6 dB

Amplifier Features (IF POWERED):

• Class D amplifier
• LED power (green) and protect (red) indicators
• Built in Low Pass Filter
• Variable Bass Boost: 0 to +12 dB
• High level speaker inputs

Enclosure Features:

• 12 Inch Sealed low profile enclosure
• MDF Construction
• Carpeted Black w/ Embroidered Accents

Specifications:

Amplifier Power Specifications:

• Peak Power Output: 650 watts x 1 channels

Amplifier Specifications:

• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total Peak Power Output: 650 watts
• Total RMS Power Output: 300 watts
• Maximum Input Gauge Size: 8 AWG
• Speaker Level Inputs: Yes
• Built-in Crossover: Low-Pass (LP)
• Bass Boost: 0 - 12 dB

Subwoofer Specifications:

• Subwoofer Size: 12 Inch
• Total RMS Power Handling: 300 watts
• Total Peak Power Handling: 600 watts
• Woofer Surround: Nitrile Butadiene Rubber (NBR)
• Woofer Composition: Polypropylene
• Sensitivity: 85.6 dB
• Frequency Response: 20 - 150 Hz
• Subwoofer Design: Round / Circle

Enclosure Specifications:

• Box Type: Sealed
• Number of Subs/Speakers: 1
• Box Style/Shape: Square/Rectangle
• Height: 14.5 Inch
• Width: 29.75 Inch
• Depth: 5.75 Inch
• Box Exterior Color: Black
• Box Finish: Carpet
