Kenwood P-W1221

Kenwood
SKU: P-W1221
Availability: 4 in stock
$125.55
Hurry, there are only 4 item(s) left!

QTY:

Features:

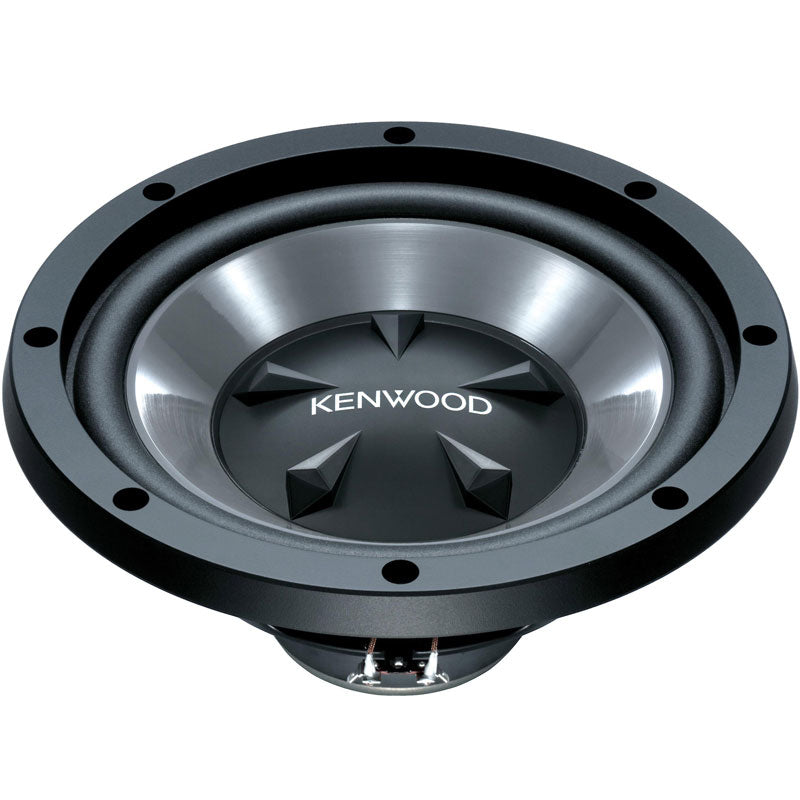

Subwoofers:

  • Injection-molded polypropylene woofer cone with high-roll urethane surround
  • Black stamped-steel basket
  • Power range (per sub): 50-200 watts RMS (700 watts peak power)
  • Frequency response: 28-800 Hz
  • Sensitivity: 90 dB
  • Top-mount depth: 5-9/16 Inch
  • Sealed box volume (per sub): 1.25 cubic foot
  • Ported box volume (per sub): 1.5 cubic feet

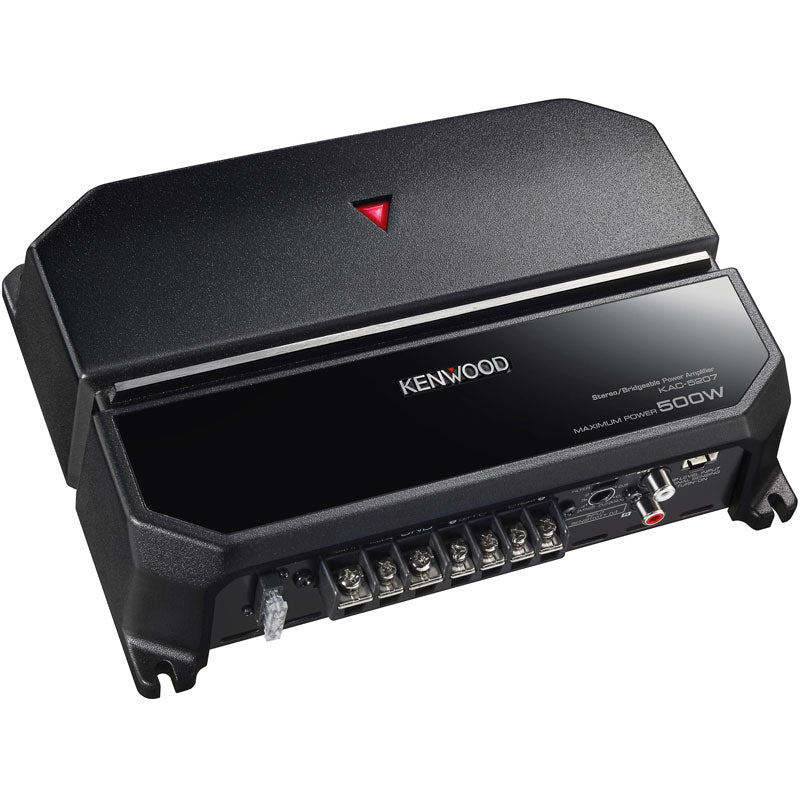

Amplifier:

  • 70 watts RMS x 2 at 4 ohms (85 watts x 2 at 2 ohms)
  • 170 watts RMS x 1 bridged at 4 ohms
  • CEA-2006 compliant
  • Class AB design
  • Switchable low-pass filter (80 Hz, 18 dB per octave)
  • Preamp and speaker-level inputs
  • Fuse rating: 25A x 1
  • Wiring and hardware not included with amplifier
    • 10-gauge power and ground leads recommended
  • Dimensions: 9-1/16 InchW x 2-3/16 InchH x 6-9/16 InchD

Specifications:

Amplifier Power Specifications:

  • RMS Power @ 2 ohms: 85 watts x 2 channels
  • Bridged RMS Power: 170 watts x 1 channels

Amplifier Specifications:

  • Amplifier Class: AB
  • Number of Channels: 2
  • Total Peak Power Output: 500 watts
  • Total RMS Power Output: 170 watts
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: 4 ohms
  • THD at Rated RMS Power: 1%
  • Speaker Level Inputs: Yes
  • Signal-to-Noise Ratio: 100 dB
  • Bass/Gain Remote: No
  • Fan Cooled: No
  • CEA-2006 Compliant: Yes

Subwoofer Specifications:

  • Subwoofer Series: Performance (Kenwood)
  • Subwoofer Size: 12 Inch
  • Voice Coil(s): Single
  • Impedance (Per Voice Coil): 8 ohms
  • RMS Power Handling: 200 watts
  • Peak Power Handling: 800 watts
  • Woofer Surround: Urethane
  • Woofer Composition: Polypropylene
  • Minimum Sealed Box Volume: 0.8 cubic feet
  • Maximum Sealed Box Volume: 1.75 cubic feet
  • Minimum Ported Box Volume: 1.0 cubic feet
  • Maximum Ported Box Volume: 2.0 cubic feet
  • Sensitivity: 90 dB
  • Frequency Response: 28 - 800 Hz
  • Xmax (millimeters): 7.7 mm
  • Top-Mount Depth: 5-9/16 Inch
  • Cutout Diameter: 10-13/16 Inch
  • Recommended Enclosure Type: Ported / Vented, Sealed
