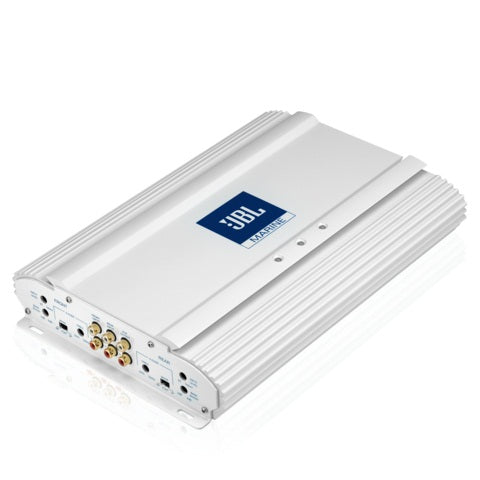

JBL Marine MA6004

JBL
SKU: MA6004
Availability: Out of stock
$93.33




Features:

  • Marine Series 4-Channel Class AB Amplifier
  • RMS Power Rating:
    • 4 ohms: 60 watts x 4 chan.
    • 2 ohms: 80 watts x 4 chan.
    • Bridged, 4 ohms: 160 watts x 2 chan.
    • Total RMS: 320 watts
  • Dynamic power, 2 ohms: 145 watts
  • MOSFET power supply
  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost)
  • Preamp RCA outputs
  • Thermal, voltage, and short protection circuitry
  • Heavy duty aluminum alloy heatsink
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter (32-320 Hz)
  • Variable low-pass filter (32-320 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-27000 Hz
  • Dimensions: 13-1/4 Inch L x 10-1/4 Inch W x 2-3/16 Inch H
  • 8-gauge power and ground leads recommended.

Specifications:

  • Marine Certified: Yes
  • Amplifier Class: AB
  • Number of Channels: 4
  • Total RMS Power Output: 320 watts
  • Maximum Input Gauge Size: 4 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: 4 ohms
  • THD at Rated RMS Power: 1%
  • Speaker Level Inputs: No
  • Preamp Outputs: 1 pair
  • Built-in Crossover: LP/HP/AP
  • High-Pass Crossover Frequency: 32 - 320 Hz
  • Low-Pass Crossover Frequency: 32 - 320 Hz
  • Signal-to-Noise Ratio: 80 dB
  • Bass Boost: 0 - 6 dB
  • Bass/Gain Remote: No
  • Fan Cooled: No
  • Fuse Rating: 25A x 2
  • CEA-2006 Compliant: Yes
